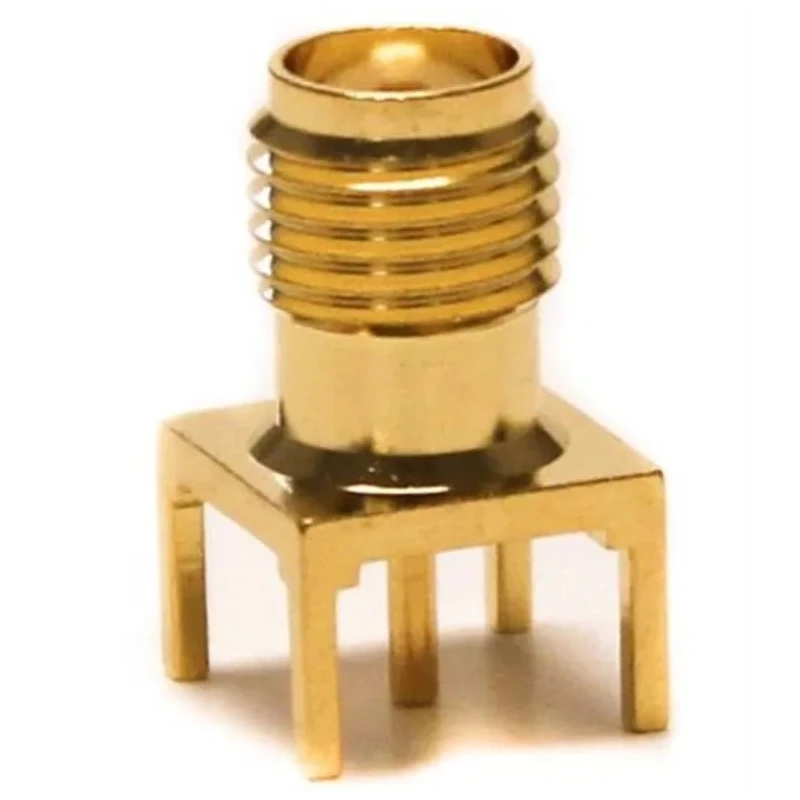

Mueller Electric SMA Series Coaxial Connector PCB Female SMA, 50 Ω, 18GHz Operating Frequency, Straight Body BU-1420701211
Specifications
| Country of Origin | China |
|---|---|
| Brand | Mueller Electric |
| Orientation | Straight |
| Model | BU-1420701211 |
| Mount Type | PCB |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | SMA |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -65°C |
| Impedance | 50Ω |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Brass |
Key Features
- The connector supports operating frequencies up to 18GHz.
- Its body is made of brass with gold plating for durability.
- Contacts are made of beryllium copper alloy with gold plating to ensure optimal conductivity.
- Suitable for PCB mount applications with solder termination.
- Operates reliably between -65°C and 150°C temperature range.
- Provides 335V working voltage with RoHS compliance.
- The connector is female gender with coaxial cable type.
- Manufactured in China with strict quality standards.
Product Description
Mueller Electric BU-1420701211 SMA Series Coaxial Connector PCB Female provides high-performance RF connectivity with 50 Ω impedance and 18GHz maximum operating frequency. This straight body connector features a brass body plated with gold for enhanced durability and corrosion resistance, suitable for demanding industrial and electronic applications.
The connector's contact pins are constructed from beryllium copper alloy plated in gold, ensuring superior electrical conductivity and long service life. Designed for PCB mounting, it uses solder termination for secure attachment and reliable signal integrity.
Operating over a temperature range from -65°C to 150°C, this connector is ideal for use in a variety of environments including telecommunications, aerospace, instrumentation, and laboratory equipment. The device supports a working voltage of 335V and complies with RoHS standards, ensuring environmental safety.
Its female connector gender and coaxial cable type make it appropriate for precise RF connections where low signal loss and consistent impedance are critical. The connector supports operating frequencies up to 18GHz. Body material is brass with gold plating for enhanced corrosion resistance.
Contacts are beryllium copper alloy plated with gold for optimal conductivity. Designed for PCB mounting using solder termination. Operates reliably in temperatures ranging from -65°C up to 150°C. Electrical impedance is 50 Ω for RF performance consistency.
Working voltage rating of 335V ensures safe operation under load. RoHS compliant for environmental safety and quality assurance. Manufactured in China according to quality standards.
This SMA series coaxial connector is well suited for industrial, laboratory, telecommunications, and commercial electronic equipment that demand high-frequency performance and reliable signal transmission. Explore the Coaxial Connectors category on EnvMart for more options to meet your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this connector is 18GHz.
This model is designed for PCB mounting and uses solder termination for secure attachment.
The impedance rating of this connector is 50Ω, which ensures consistent RF performance.
The body is made of brass with gold plating, while the contacts are constructed from beryllium copper alloy also plated with gold.
It operates reliably within a temperature range of -65°C to 150°C.
The working voltage rating of this connector is 335V, ensuring safe operation under load.
Yes, this connector is RoHS compliant, ensuring it meets environmental safety standards.
This connector features a female gender, suitable for precise RF connections.
This connector is manufactured in China according to strict quality standards.
It is suitable for telecommunications, aerospace, instrumentation, and laboratory equipment that require high-frequency performance.
This is an SMA series coaxial connector designed for RF connectivity.
The contacts are plated with gold to ensure optimal conductivity.
