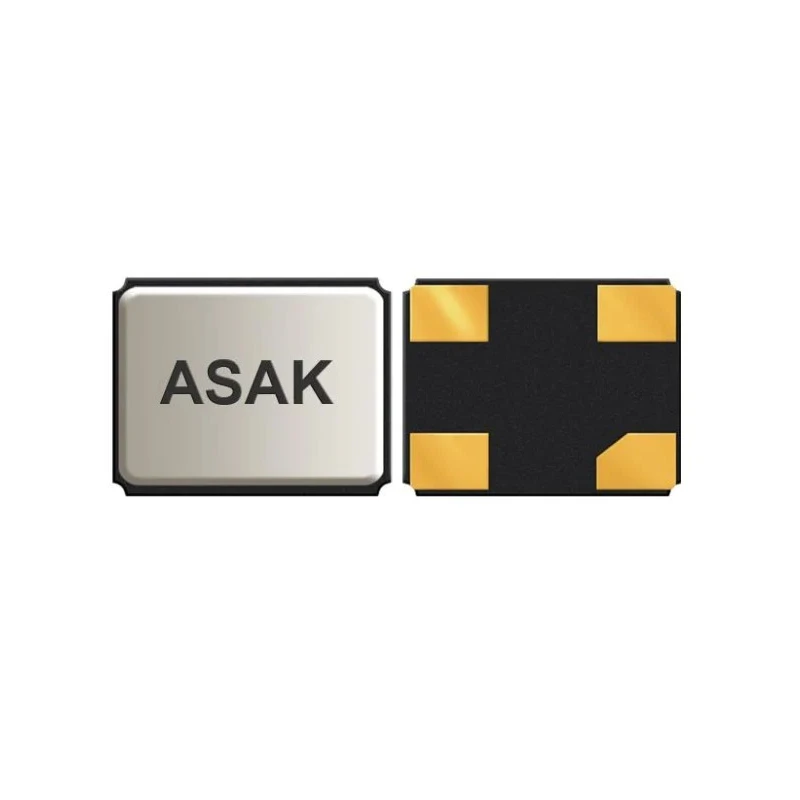

Abracon 32.768kHz Crystal Oscillator ±25ppm LVCMOS 4-Pin Surface Mount ASAK-32.768KHZ-LRS-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.7mm |
| Length | 2mm |
| Model | ASAK-32.768KHZ-LRS-T |
| Packaging | Tape & Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | ASAK |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 32.768kHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Supply Voltage | 3.63V |
| Minimum Supply Voltage | 2.97V |
| Oscillator Type | Crystal Oscillator |
| Output Level | LVCMOS |
Key Features
- Operates at a frequency of 32.768kHz, suitable for timing applications.
- Features ±25ppm frequency stability ensuring precise performance.
- Low current consumption with a maximum of 240 μA.
- Seam-sealed ceramic SMD package measuring 2.0 x 1.6 x 0.7mm for high reliability.
- Operates within a voltage range of 2.97V to 3.63V for flexible power supply options.
- RoHS and RoHS II compliant, suitable for lead-free manufacturing processes.
- Wide operating temperature range from -40°C to 85°C for industrial applications.
- LVCMOS level output compatible with digital and communication devices.
Product Description
The Abracon ASAK-32.768KHZ-LRS-T is a high precision 32.768kHz crystal oscillator designed with ±25ppm frequency stability, delivering reliable timing signals for a wide range of electronic applications. This oscillator is housed in a compact ceramic surface mount device with a seam-sealed package measuring 2.0mm in length, 1.6mm in width, and 0.7mm in height, ensuring robustness and high reliability in industrial environments.
Operating at voltages from 2.97V to 3.63V, it supports low current consumption with a maximum current draw of 240 μA, making it energy efficient and suitable for battery-powered devices. The oscillator features an LVCMOS output level and comes as a 4-pin surface mount device for easy integration onto PCBs in manufacturing.
This oscillator is compliant with RoHS and RoHS II standards, supporting environmentally friendly production. It operates reliably within a temperature range of -40°C to 85°C, supporting diverse industrial, laboratory, and consumer electronics applications.
Common use cases include timing applications in laptops, digital cameras, wireless LAN modules, LCD panels, and PDAs. The compact surface mount package facilitates automated assembly lines and high production efficiency.
Operates at frequency of 32.768kHz with ±25ppm stability. Low current consumption of 240 μA max for power-sensitive designs. Seam-sealed ceramic SMD package measures 2.0 x 1.6 x 0.7mm. Voltage supply range from 2.97V up to 3.63V.
Supports wide operating temperatures from -40°C to 85°C. LVCMOS output level ensures compatibility with digital circuits. RoHS and RoHS II compliant for lead-free manufacturing. 4-pin surface mount design supports efficient PCB integration.
Ideal for industrial, consumer electronics, and communication devices. Durable package ensures high reliability in demanding applications.
This product is an excellent choice for engineers and designers requiring precise and reliable oscillation frequencies in compact form factors. Browse more specialized Crystal Oscillators and electronic components on EnvMart to find the perfect solution for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 32.768kHz, suitable for various timing applications.
It operates within a voltage range of 2.97V to 3.63V, allowing for flexible power supply options.
The maximum current consumption is 240 μA, making it energy efficient for power-sensitive applications.
The package measures 2.0mm in length, 1.6mm in width, and 0.7mm in height, facilitating compact PCB integration.
It operates reliably within a temperature range of -40°C to 85°C, suitable for industrial applications.
This oscillator features an LVCMOS output level, ensuring compatibility with digital and communication devices.
This model has a 4-pin configuration, designed for surface mount applications.
Yes, it is compliant with RoHS and RoHS II standards, supporting lead-free manufacturing processes.
The oscillator is packaged in tape and reel format, which is suitable for automated assembly processes.
It belongs to the ASAK series, which is known for high precision timing applications.
Common applications include timing in laptops, digital cameras, wireless LAN modules, and LCD panels.
The country of origin for this crystal oscillator is India.
