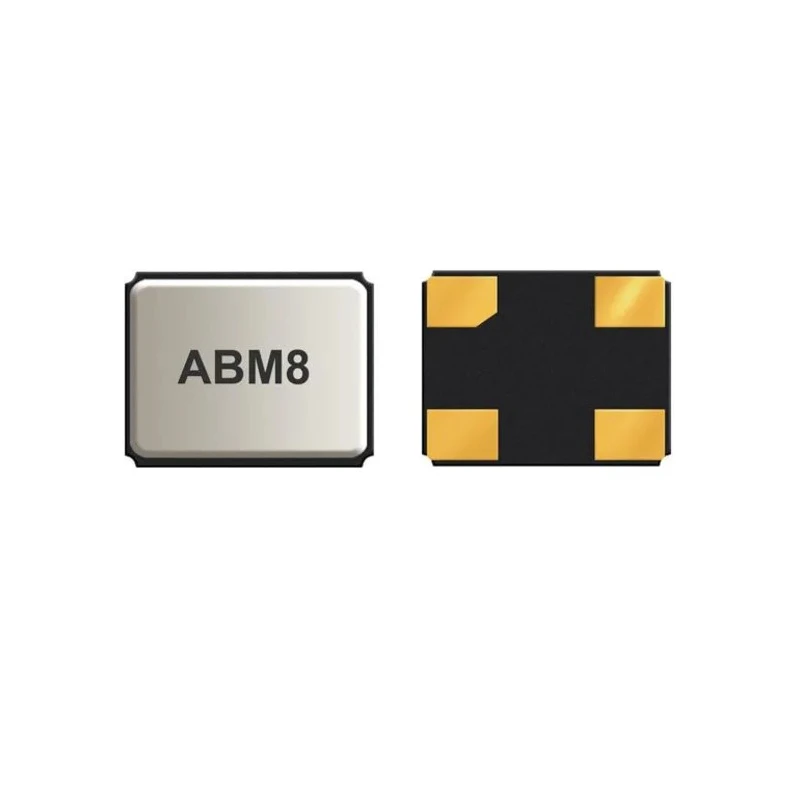

Abracon 18.432 MHz Surface Mount 4-Pin Crystal ±50 ppm Frequency Tolerance ABM8-18.432MHZ-B2-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.8mm |
| Length | 3.2mm |
| Model | ABM8-18.432MHZ-B2-T |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8 |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 18.432MHz |
| Load Capacitance | 18pF |
| Series Resistance | 70Ω |
Key Features
- This 4-pin crystal features a compact surface mount package for efficient PCB integration.
- It provides a load capacitance of 18 pF ensuring stable oscillation in circuits.
- The rugged ceramic package with seam sealed design enhances reliability and longevity.
- Operating temperature ranges from -10°C to 60°C, suitable for various environments.
- RoHS compliant, suitable for modern electronic manufacturing standards.
- Typical series resistance is 70 Ohms for consistent performance.
- The crystal is ideal for communication equipment, modems, wireless devices, and high density applications.
Product Description
The Abracon ABM8-18.432MHZ-B2-T is a precision surface mount crystal unit operating at a standard frequency of 18.432 MHz, designed for use in applications requiring high frequency stability and tight tolerance with ±50 ppm frequency deviation.
This 4-pin ceramic SMD crystal features a compact and seam sealed package measuring 3.2 mm in length, 2.5 mm in width, and 0.8 mm in height, making it ideal for high-density electronic assemblies such as modems, communication equipment, PCMCIA cards, and wireless devices.
With a load capacitance of 18 pF and a series resistance of 70 Ohms, this crystal ensures stable and reliable oscillation across its operating temperature range of -10°C to 60°C. Its robust ceramic housing and RoHS compliant construction make it well suited for modern industrial and commercial electronic manufacturing environments.
Applications include industrial electronics, telecommunications, embedded system design, and anywhere a stable clock source is essential. This 4-pin surface mount crystal provides precise frequency accuracy. Compact dimensions support use in space-constrained circuit boards.
Robust ceramic package with seam seal ensures high reliability. Wide operating temperature range allows use in varied climates and conditions. Compliant with RoHS for environmentally conscious manufacturing. Ideal for telecommunications, wireless modules, and modems.
Load capacitance and series resistance optimized for stable operations.
This Abracon crystal unit is an excellent choice for designers seeking dependable oscillator components in commercial and industrial applications. Explore more precision electronic components and related products on EnvMart.
Explore more products in our Crystal Units category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 18.432 MHz.
It has a load capacitance of 18 pF, ensuring stable oscillation in circuits.
The dimensions of this surface mount crystal are 3.2 mm in length, 2.5 mm in width, and 0.8 mm in height.
The typical series resistance of this crystal is 70 Ohms, which contributes to its consistent performance.
This model operates within a temperature range of -10°C to 60°C.
It comes in a compact surface mount package, specifically designed for efficient PCB integration.
Yes, this crystal is RoHS compliant, making it suitable for modern electronic manufacturing standards.
This crystal is suitable for applications in telecommunications, modems, wireless devices, and high-density electronic assemblies.
The crystal is packaged in tape and reel format for convenient distribution and handling.
This crystal unit has a pin count of 4.
This crystal belongs to the ABM8 series.
The country of origin for this crystal unit is India.
