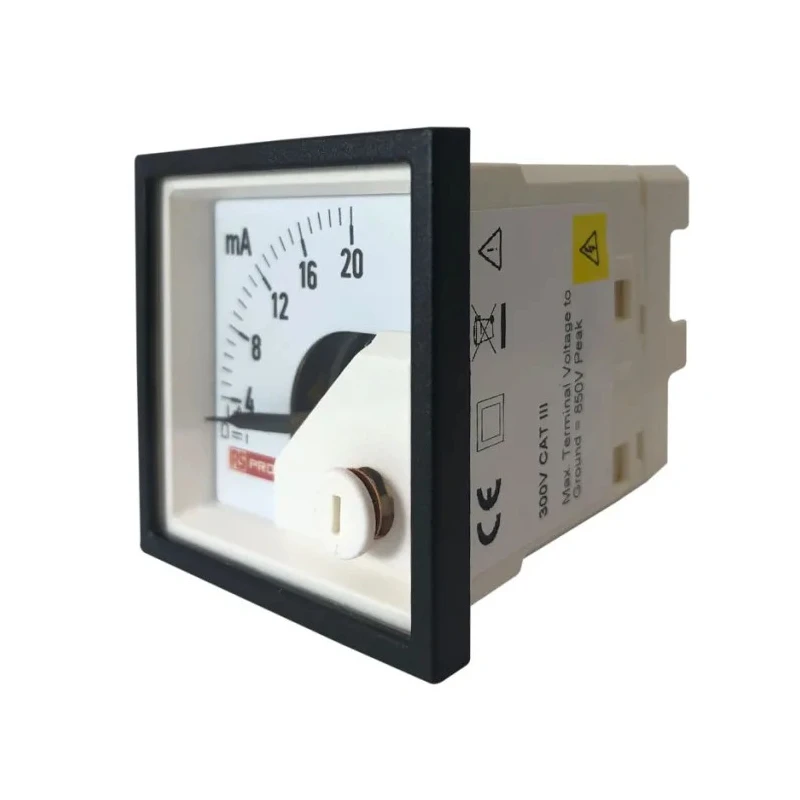

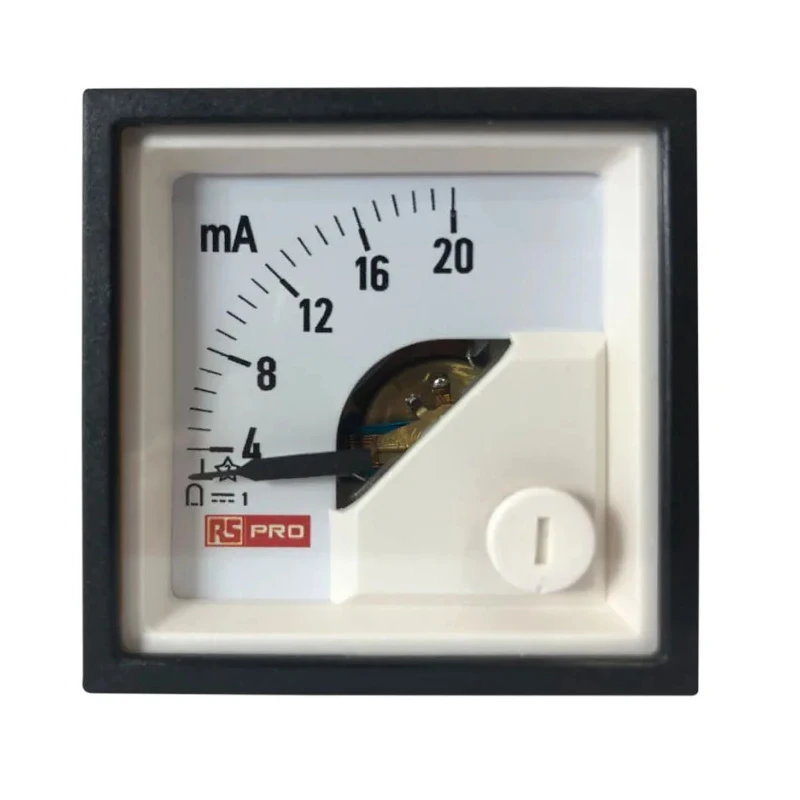

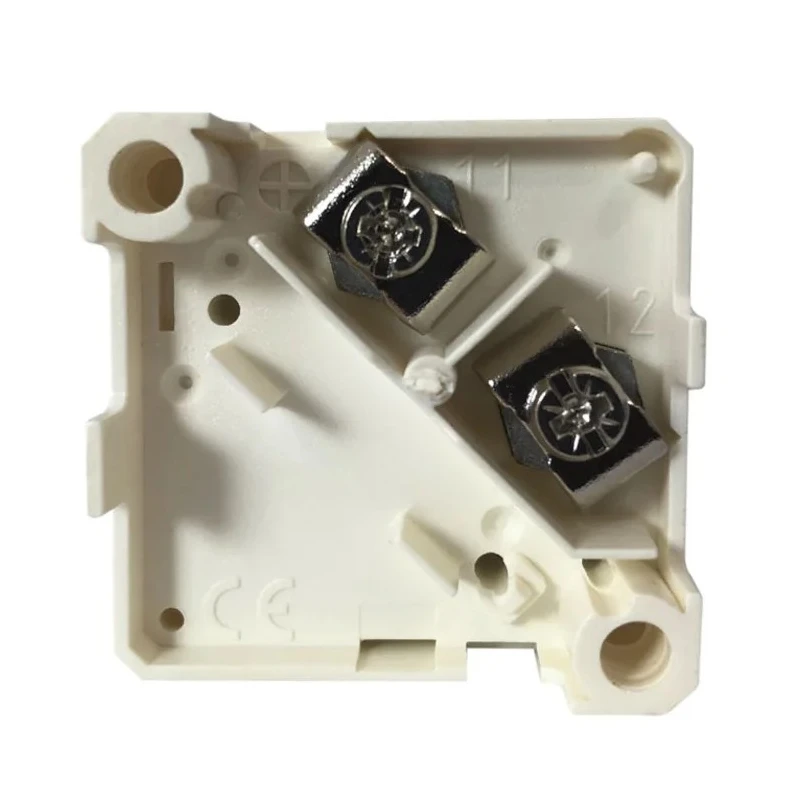

RS PRO Analogue Panel Ammeter DC 20 mA, 45 mm x 45 mm, 1% Accuracy, Moving Coil 186-2476

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Analogue Panel Ammeter DC 20 mA, 45 mm x 45 mm, 1% Accuracy, Moving Coil 186-2476

Name: RS PRO Analogue Panel Ammeter DC 20 mA, 45 mm x 45 mm, 1% Accuracy, Moving Coil 186-2476
Brand: RS PRO
SKU: 157352
Price: 42.03 USD
Availability: InStock



Category Analogue Panel Ammeter Brand RS PRO Condition New

Specifications

Country of Origin	India
Relative Humidity	Less than 75% annual average (noncondensing)
Brand	RS PRO
Model	186-2476
Depth	54mm
Series	RS PRO
Maximum Operating Temperature	65°C
Current Type	DC
Pointer	Knife-edge type
Meter Accuracy	1 %
Minimum Operating Temperature	-10°C
Shock Resistance	15g for pulse duration of 11 milliseconds
Overload	1.2 times nominal current (continuous)
Cutout Height	45mm
Cutout Width	45mm
Maximum Measurement	1000 V ac, 600 V dc
Moving Element	Moving Coil
Maximum Ampere Value	20 mA
Pointer deflection	0° to 90°
VDE 0100-410	2018-10 approved
ISO 20653	2006-08
DC Ammeter nominal range	15uA to 100A
Standards/ApprovalsIEC51/DINEN60051, DIN 46200/46282, VDE 0100-410	2018-10, DIN 43807, DIN 43701, DIN 43718, 2014/35/EC (low voltage )), ISO 20653:2006-08, DIN 43802, EN 61010, VDE / VDI 3540, UL 94 V-0, 2014/30/EC (EMC )), DIN IEC 61554, IEC 61010, 93/68/EEC (CE )), IEC 529

Key Features

The ammeter operates on DC current and uses a moving coil movement for accurate readings.
It features a compact square case with dimensions 45 mm x 45 mm cutout and a 54 mm depth for easy panel installation.
Meter accuracy is rated at 1%, ensuring reliable measurement for industrial applications.
The device operates within a temperature range from -10°C to 65°C and can withstand relative humidity below 75% (non-condensing).
It includes knife-edge type pointer with a deflection range of 0° to 90° for clear readings.
Designed for shock resistance up to 15g pulses, suitable for industrial environments.
The ammeter supports currents from 15 µA to 100 A and continuous overload up to 1.2 times nominal current.
The molded polycarbonate case provides durability and safety, compliant with multiple IEC and VDE standards.

Product Description

RS PRO 186-2476 Analogue Panel Ammeter is a high-precision DC panel meter designed for industrial and process control applications. It provides accurate current measurement using a moving coil mechanism within a compact 45 mm x 45 mm panel cutout size. The ammeter features linear calibrated scales and a knife-edge pointer, making it suitable for precise monitoring of electrical systems.

Equipped with a molded polycarbonate square case, this ammeter offers robust mounting suitable for control and switchgear panels in industrial machinery consoles. The instrument can operate reliably within a temperature range from -10°C to 65°C and handles relative humidity conditions below 75% on average (non-condensing).

The device withstands mechanical shocks up to 15g for short pulse durations, ensuring durability in harsh environments. It supports input currents ranging from 15 microamperes up to 100 amperes, with continuous overload capacity of 1.2 times nominal current for enhanced safety and reliability. The pointer deflects up to 90 degrees to provide clear and precise readings of current.

This panel ammeter meets stringent international standards including IEC51, DIN EN60051, VDE 0100-410, UL 94 V-0 safety approvals, as well as EMC and low voltage directives compliance. It is CE certified and IP52 rated for protection against dust and dripping water, making it well-suited for demanding industrial, electrical panels, HVAC, manufacturing, and laboratory control gear applications.

The ammeter utilizes permanent magnet moving coil movements for stable average value display. The molded polycarbonate housing provides electrical insulation and impact resistance. High accuracy of 1% ensures dependable measurement for control system feedback.

Operating temperature range allows use in diverse climates and indoor industrial settings. Shock resistance and overload capacity enhance durability and safety in electrical installations. Compact size and mounting design facilitate seamless integration into standard DIN-style panels.

The RS PRO 186-2476 analogue panel ammeter is an ideal solution for OEMs and facilities engineering teams requiring reliable current monitoring with industry-standard certifications and robust performance. Explore more in our Analogue Panel Ammeter range to find instruments tailored for your automation and control requirements.
