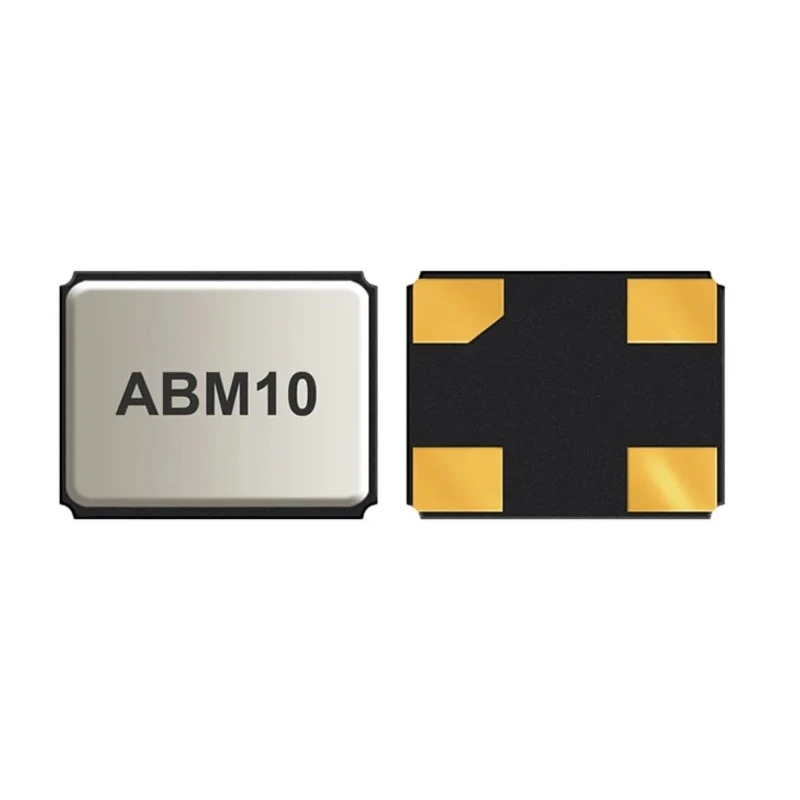

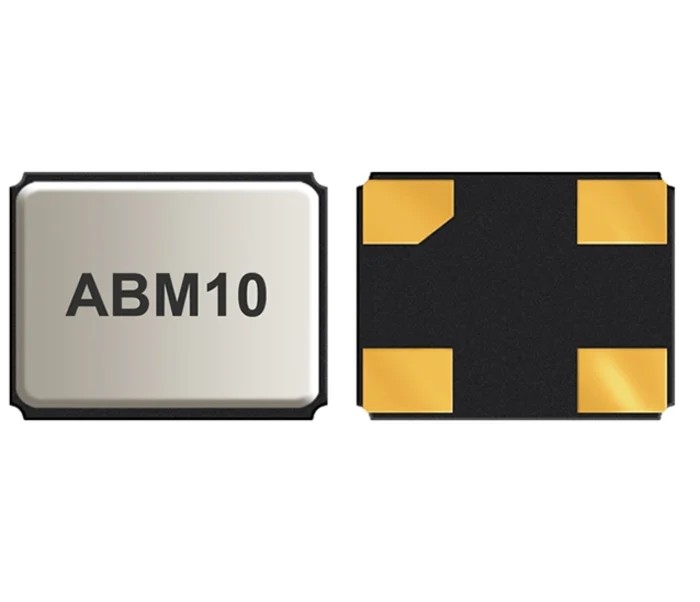

Abracon 32 MHz Surface Mount 4-Pin Crystal ±20 ppm Frequency Tolerance ABM10-32.000MHZ-D30-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.5mm |
| Length | 2.5mm |
| Model | ABM10-32.000MHZ-D30-T3 |
| Packaging | Tape & Reel |
| Width | 2mm |
| Mount Type | Surface |
| Series | ABM10 |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 32MHz |
| Load Capacitance | 10pF |
| Series Resistance | 70Ω |
Key Features
- Standard frequency of 32 MHz ensures accurate signal timing.
- Surface mount type suitable for compact PCB designs.
- Package dimensions of 2.5 mm length, 2 mm width, and 0.5 mm height.
- Load capacitance of 10 pF optimizes circuit compatibility.
- Operating temperature range from -10°C to 60°C for diverse environments.
- Low series resistance of 70 Ω minimizes power loss.
- RoHS compliant ensuring environmental safety.
- Tape & Reel packaging facilitates automated assembly processes.
Product Description
Abracon ABM10-32.000MHZ-D30-T3 is a 32 MHz crystal oscillator designed for surface mount technology with a compact 4-pin ultra-miniature package sized 2.5 x 2.0 x 0.5 mm. It offers a frequency tolerance of ±20 ppm and stability of ±30 ppm, making it ideal for precision timing in electronics such as Bluetooth devices, wireless communication, computers, modems, and microprocessors.
The crystal features a load capacitance of 10 pF and a low series resistance of 70 Ω, delivering efficient signal performance with minimal power dissipation. Its operating temperature range of -10°C to 60°C allows it to maintain stable operation under various environmental conditions. The ABM10 series crystal is RoHS compliant and sealed in a ceramic package assuring high reliability and precision.
The package comes with tape and reel to support automated manufacturing workflows, ensuring ease of assembly especially suitable for high-volume production in industrial, laboratory, manufacturing, and consumer electronic applications.
Standard frequency of 32 MHz provides precise timing signals. Surface mount 4-pin configuration enables compact board layouts. Miniature dimensions allow integration into space-constrained designs. Stable frequency tolerance of ±20 ppm supports accuracy.
Wide operating temperature range supports diverse operating environments. Low series resistance reduces power losses in circuits. RoHS compliance ensures environmentally friendly manufacturing. Tape & reel packaging enables automated assembly line readiness.
High precision ceramic package enhances durability and performance. Applications include wireless communication, computing, and industrial electronics.
This Abracon crystal unit is a reliable component for designers seeking stable and accurate frequency control in surface mount configurations, suitable for industrial and commercial electronics applications.
Explore more high-quality electronic components and precision Crystal Units at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 32 MHz, ensuring accurate signal timing.
This model has dimensions of 2.5 mm in length, 2 mm in width, and 0.5 mm in height.
The load capacitance of this crystal oscillator is 10 pF, optimizing circuit compatibility.
It features a low series resistance of 70 Ω, which minimizes power loss in circuits.
The operating temperature range is from -10°C to 60°C, allowing stable operation in diverse environments.
It is packaged in tape and reel format, facilitating automated assembly processes.
This model uses a surface mount type, suitable for compact PCB designs.
The frequency tolerance of this crystal unit is ±20 ppm, supporting accurate timing applications.
This crystal unit is RoHS compliant, ensuring environmental safety.
It is suitable for applications in wireless communication, computing, and industrial electronics.
This model has a pin count of 4, which is typical for surface mount configurations.
The country of origin for this crystal unit is India.
