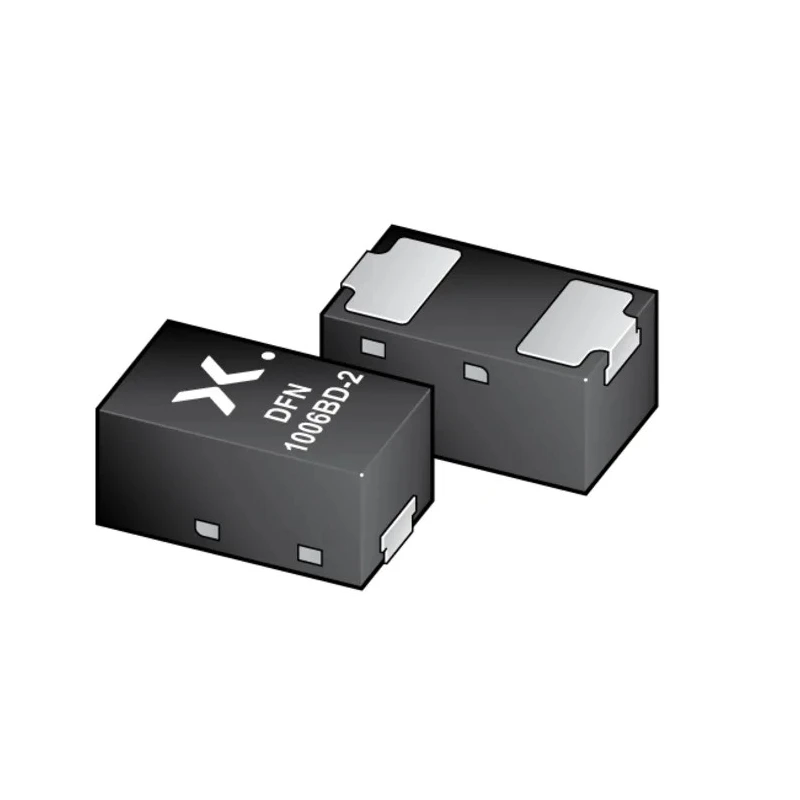

Nexperia General Purpose 1.13 V Zener Diode Single 365 mW 2% Surface Mount 2-Pin DFN1006BD-2 BZX884S-C13-QYL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-C13-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 13V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 170Ω |
| Typical Voltage Temperature Coefficient | 7mV/K |
Key Features
- Operates within a temperature range of -55°C to 150°C.
- Features a nominal Zener voltage of 13 V with a ±2% tolerance.
- Ultra-compact DFN1006BD-2 plastic leadless package with side-wettable flanks for reliable mounting.
- Maximum reverse leakage current of 100 nA ensuring minimal leakage under reverse bias.
- Tested at 5 mA test current suitable for precise voltage regulation applications.
- Complies with RoHS and AEC-Q101 automotive standards, suitable for automotive and industrial use.
- Maximum Zener impedance of 170 Ω provides stabilization and limiting performance.
- Typical voltage temperature coefficient of 7 mV/K ensuring stable operation over temperature variations.
Product Description
Nexperia BZX884S-C13-QYL is a high-quality general purpose Zener diode designed for precise voltage regulation in various electronic circuits. It features a nominal Zener voltage of 13 V with a ±2% tolerance and can dissipate a maximum power of 365 mW. The device is packaged in an ultra-small DFN1006BD-2 2-pin surface mount package with side-wettable flanks, allowing for efficient PCB assembly and soldering.
This diode operates reliably within a temperature range from -55°C to 150°C and is tested at a 5 mA test current to ensure consistent performance. Its low maximum reverse leakage current of 100 nA makes it suitable for low leakage applications where power loss must be minimized.
Compliance with RoHS standards and qualification according to AEC-Q101 automotive standards make it ideal for usage in harsh automotive and industrial environments, ensuring durability and reliability. The maximum Zener impedance of 170 Ω and typical voltage temperature coefficient of 7 mV/K contribute to stable voltage regulation under varying environmental conditions.
The single element diode configuration with two pins simplifies circuit design and integration in space-constrained PCB layouts. This makes the BZX884S-C13-QYL suitable for power supply protection, voltage regulation, and reference applications in industrial, automotive, and consumer electronics.
Operates within a temperature range of -55°C to 150°C. Nominal Zener voltage of 13 V with ±2% tolerance. Maximum power dissipation of 365 mW. Surface mount package DFN1006BD-2 with side-wettable flanks. Low maximum reverse leakage current of 100 nA.
Tested at 5 mA ensuring consistent performance. Compliance with RoHS and automotive AEC-Q101 standards. Maximum Zener impedance of 170 Ω. Typical voltage temperature coefficient of 7 mV/K. Single element, 2-pin diode configuration.
This product is ideal for industrial, automotive, and electronics manufacturing for use in voltage regulation and protection applications. Explore Nexperia components and related semiconductor devices at EnvMart for your design and production needs.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 13 V with a tolerance of ±2%.
This model has a maximum power dissipation of 365 mW.
It operates reliably within a temperature range of -55°C to 150°C.
The maximum reverse leakage current is 100 nA, ensuring minimal leakage under reverse bias.
It is packaged in an ultra-compact DFN1006BD-2 surface mount package with side-wettable flanks.
The typical voltage temperature coefficient is 7 mV/K, which helps ensure stable operation over temperature variations.
This Zener diode has a 2-pin configuration, simplifying circuit design and integration.
It complies with the AEC-Q101 automotive standard, making it suitable for automotive applications.
The maximum Zener impedance is 170 Ω, which provides stabilization and limiting performance.
It is tested at a current of 5 mA to ensure consistent performance in voltage regulation applications.
This model complies with RoHS and AEC-Q101 standards, ensuring it meets environmental and automotive requirements.
It is suitable for voltage regulation, power supply protection, and reference applications in industrial, automotive, and consumer electronics.
