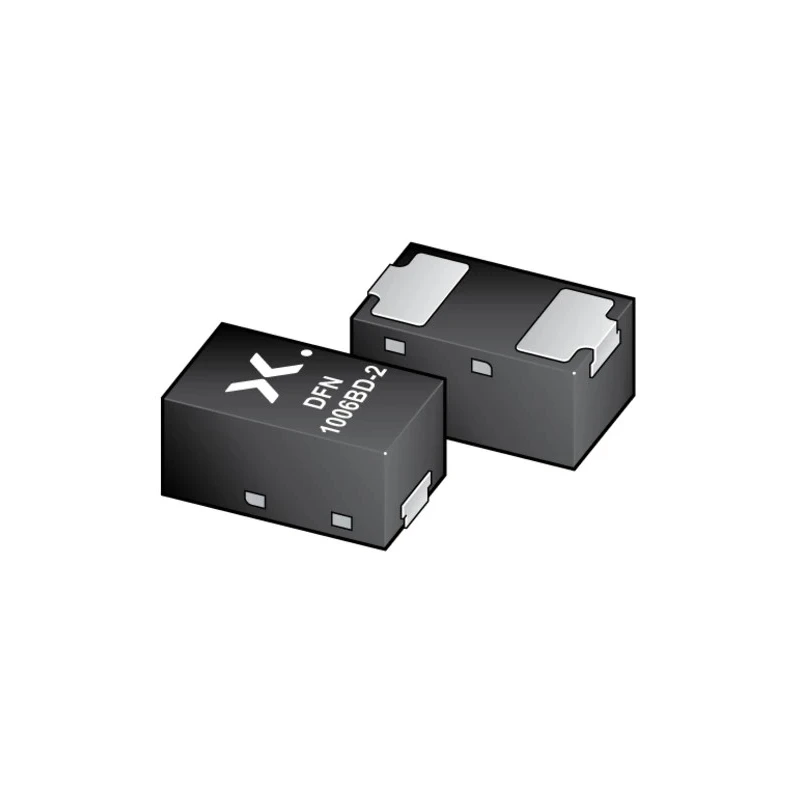

Nexperia General Purpose 1.47 V Zener Diode Single 365 mW Surface Mount 2-Pin DFN1006BD-2 BZX884S-B47-QYL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-B47-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 47V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 375Ω |
| Typical Voltage Temperature Coefficient | 42mV/K |
Key Features
- This diode features a single element configuration designed for stability in voltage regulation applications.
- The package type is DFN1006BD-2, facilitating surface mounting with a 2-pin design.
- It has a zener voltage tolerance of ±2%, ensuring precision in circuit protection.
- The diode operates efficiently within a temperature range from -55°C to 150°C with an automotive standard qualification of AEC-Q101.
- The maximum reverse leakage current is very low at 50 nA, enhancing reliability in sensitive electronics.
- The device features a typical voltage temperature coefficient of 42 mV/K for stable performance under varying thermal conditions.
- Its maximum zener impedance is 375 Ω, supporting general-purpose voltage regulation needs.
- Designed for automotive and general electronics applications, it complies with RoHS and AEC-Q101 standards.
Product Description
Nexperia BZX884S-B47-QYL is a general-purpose Zener diode in an ultra-compact DFN1006BD-2 surface mount package featuring a single diode element. It provides nominal zener voltage of 47 V and maximum power dissipation of 365 mW, suitable for voltage regulation and protection circuits in automotive and industrial electronics.
This device is designed to operate reliably over a wide temperature range of -55°C to 150°C, meeting automotive standard AEC-Q101, making it ideal for automotive safety and control systems, industrial monitoring, and power management applications.
The compact package and side-wettable flanks enable automated assembly and high-density PCB layouts, reducing manufacturing costs and improving efficiency. The diode's low maximum reverse leakage current and tight voltage tolerance support precise voltage stabilization.
Key electrical characteristics include a test current of 5 mA, typical temperature voltage coefficient of 42 mV/K, and maximum zener impedance of 375 Ω. Compliance with RoHS ensures environmental safety for regulatory requirements.
This diode features a single element configuration designed for stability in voltage regulation applications. The package type is DFN1006BD-2, facilitating surface mounting with a 2-pin design. It has a zener voltage tolerance of ±2%, ensuring precision in circuit protection.
The diode operates efficiently within a temperature range from -55°C to 150°C with an automotive standard qualification of AEC-Q101. The maximum reverse leakage current is very low at 50 nA, enhancing reliability in sensitive electronics.
The device features a typical voltage temperature coefficient of 42 mV/K for stable performance under varying thermal conditions. Its maximum zener impedance is 375 Ω, supporting general-purpose voltage regulation needs.
Designed for automotive and general electronics applications, it complies with RoHS and AEC-Q101 standards.
This Nexperia Zener diode BZX884S-B47-QYL is ideal for use in industrial electronics, automotive modules, power supplies, and telecommunication systems requiring stable voltage regulation and protection. Explore more semiconductor products in the EnvMart Electronics & Electricals category for comprehensive component solutions.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal zener voltage of this diode is 47 V.
The maximum power dissipation for this model is 365 mW.
It operates efficiently within a temperature range from -55°C to 150°C.
The diode comes in a DFN1006BD-2 surface mount package.
The maximum reverse leakage current is very low at 50 nA.
The typical voltage temperature coefficient is 42 mV/K.
This model has a 2-pin design.
It complies with the automotive standard AEC-Q101.
The maximum zener impedance is 375 Ω.
This diode is suitable for automotive and general electronics applications, including voltage regulation and protection circuits.
It complies with RoHS and AEC-Q101 standards.
This diode features a single element configuration designed for stability in voltage regulation applications.
