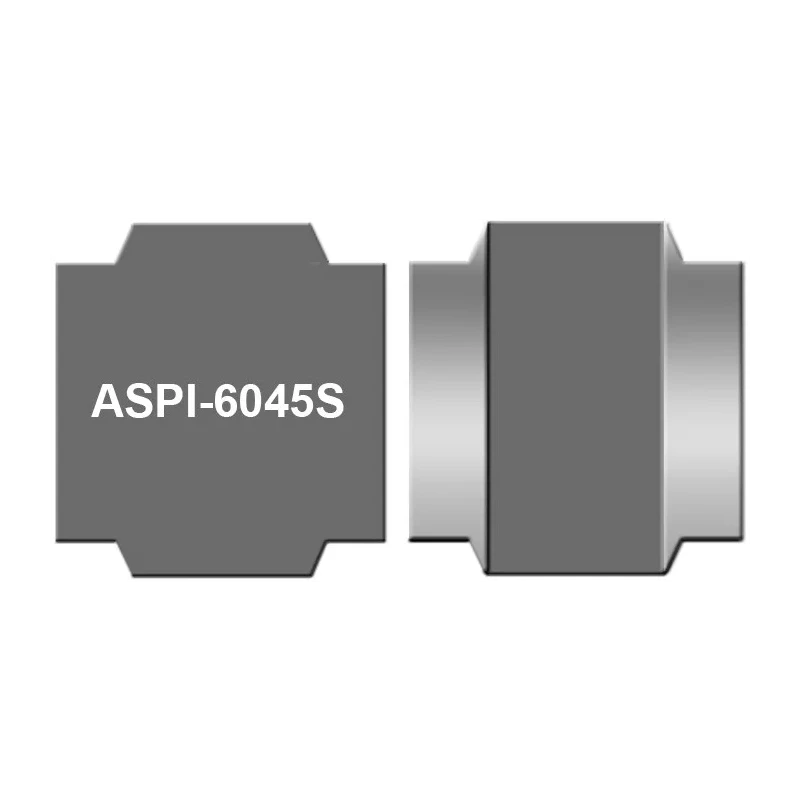

Abracon Shielded Surface Mount Inductor with Ferrite Core 33 μH Flat Wire Winding ±20% 1.45A Idc ASPI-6045S-330M-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 4.5mm |
| Length | 6mm |
| Model | ASPI-6045S-330M-T |
| Depth | 4.5mm |
| Packaging | Tape & Reel |
| Series | ASPI-6045S |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 33μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 1.45A |
| Pin Count | 2 |
| Maximum DC Resistance | 0.14Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Flat Wire Winding |
Key Features
- Constructed with a ferrite core for efficient magnetic performance.
- Flat wire winding design ensures low DC resistance and high energy storage.
- Shielded construction minimizes electromagnetic interference and radiation.
- Surface mount package measuring 6mm length and 4.5mm height and depth for compact PCB design.
- Operating temperature range from -40°C to 125°C supports industrial applications.
- Inductance tolerance of ±20% ensures reliable inductance characteristics.
- Maximum DC resistance of 0.14Ω reduces power loss during operation.
- Terminated with surface mount style for easy PCB integration.
Product Description
The Abracon ASPI-6045S-330M-T shielded surface mount inductor is engineered with a ferrite core and flat wire winding construction. It offers a nominal inductance of 33 μH with an inductance tolerance of ±20%, and supports a maximum DC current of 1.45 A, making it capable of handling medium currents with low power loss evidenced by its 0.14Ω maximum DC resistance.
This Surface Mount Inductor measures 6mm in length, 4.5mm in height, and 4.5mm in depth, providing reliable compactness suitable for high-density printed circuit board layouts. The inductor is fully shielded to minimize electromagnetic interference and radiation, helping meet stringent EMI requirements in sensitive electronic applications.
Designed for a wide operating temperature range from -40°C to 125°C, the ASPI-6045S-330M-T is suitable for automotive-free and other industrial environments. Its construction with a ferrite core and flat wire winding improves inductance stability and energy storage in power conversion circuits.
The device is delivered in a tape and reel package ideal for automated pick-and-place assembly processes. Compliance with RoHS standards guarantees that the product meets environmental and safety regulations.
This inductor is commonly used in DC-DC converters, portable communication equipment, office automation devices, LCD and DVD players, modems, set-top boxes, and similar power electronics where efficient energy storage and minimal EMI are required.
Constructed with a ferrite core for low core losses and magnetic efficiency. Flat wire winding provides low DC resistance and high energy storage capability. Shielded design reduces EMI and radiation emissions. Compact surface mount package for high PCB density and reliability.
Operates reliably across a wide temperature range from -40°C to 125°C. Inductance value of 33 μH with ±20% tolerance ensures consistent performance. Low resistance of 0.14Ω minimizes conduction losses. RoHS compliant, supporting environmentally responsible manufacture.
Suitable for use in industrial, communication, and consumer electronics applications. Packaging in tape and reel format optimizes manufacturing efficiency. Choose Abracon inductors for reliable, low EMI, and efficient energy storage in your electronic designs. Explore more electronic components and inductors at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance value of this model is 33 μH with an inductance tolerance of ±20%.
It can handle a maximum DC current of 1.45 A.
This surface mount inductor measures 6 mm in length, 4.5 mm in height, and 4.5 mm in depth.
The maximum DC resistance is 0.14 Ω, which helps reduce power loss during operation.
The operating temperature range is from -40°C to 125°C, making it suitable for various industrial applications.
It is delivered in a tape and reel package, which is ideal for automated pick-and-place assembly processes.
The core material used in this inductor is ferrite, which contributes to its efficient magnetic performance.
The termination style is surface mount, facilitating easy integration onto printed circuit boards.
This inductor is commonly used in DC-DC converters, portable communication equipment, and consumer electronics such as LCD and DVD players.
It complies with RoHS standards, ensuring it meets environmental and safety regulations.
The flat wire winding design ensures low DC resistance and high energy storage capability, enhancing its performance in power conversion circuits.
The shielded construction minimizes electromagnetic interference and radiation, making it suitable for sensitive electronic applications.
