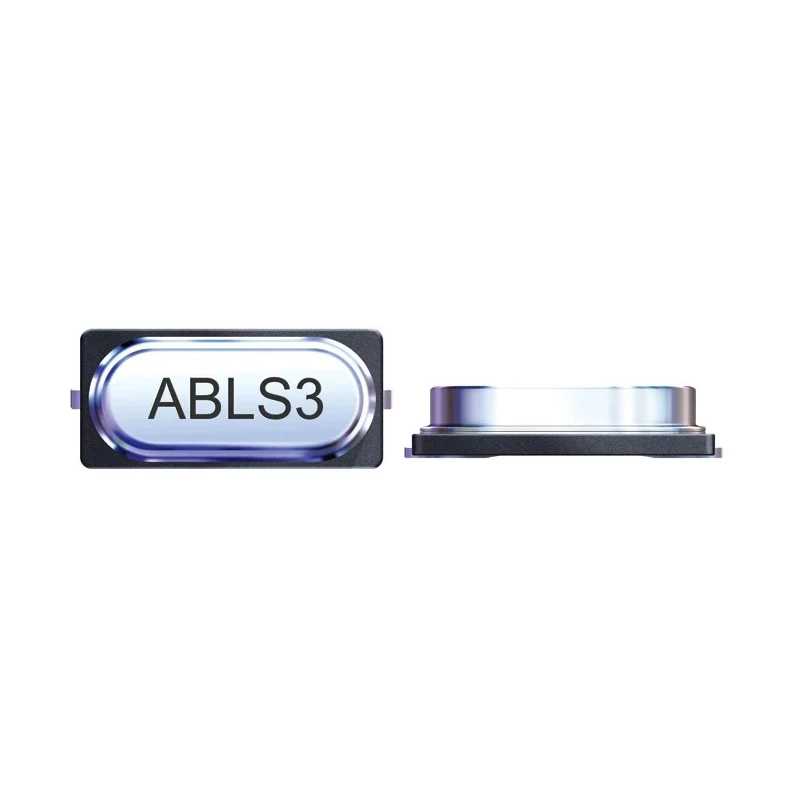

Abracon 12 MHz Crystal Unit ±30 ppm Surface Mount HC-49-US Package 2-Pin ABLS3-12.000MHZ-D4Y-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 2.7mm |
| Length | 11.4mm |
| Model | ABLS3-12.000MHZ-D4Y-T |
| Packaging | Tape & Reel |
| Width | 4.7mm |
| Mount Type | Surface |
| Series | ABLS3 |
| Maximum Operating Temperature | 70°C |
| Package Type | HC-49-US |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 12MHz |
| Load Capacitance | 18pF |
| Series Resistance | 50Ω |
Key Features
- Standard frequency of 12 MHz for precise electronic timing.
- Surface mount package type HC-49-US with 2-pin configuration.
- Load capacitance of 18 pF ensuring stable oscillations.
- Compact dimensions measuring 11.4 mm length, 4.7 mm width, and 2.7 mm height.
- Operating temperature range from 0°C to 70°C suitable for typical industrial environments.
- Series resistance of 50 Ω for low signal loss.
- RoHS compliant and lead-free for environmental and safety standards.
- Packaged in tape & reel format for efficient automated assembly.
Product Description
Abracon ABLS3-12.000MHZ-D4Y-T is a 12 MHz crystal unit designed for precise frequency control in electronic circuits. This surface mount device comes in a compact HC-49-US package with a 2-pin configuration, making it ideal for modern electronics manufacturing.
The crystal unit features a frequency tolerance of ±30 ppm and frequency stability up to ±50 ppm, ensuring reliable performance in communications, computing, microprocessor systems, and wireless applications. Load capacitance is specified at 18 pF, contributing to stable oscillation frequency.
With mechanical dimensions of 11.4 mm length, 4.7 mm width, and 2.7 mm height, this unit fits well in compact surface mount designs. The series resistance of 50 Ω minimizes signal attenuation across the frequency range.
The device operates reliably within a temperature range of 0°C to 70°C, suitable for many industrial and commercial electronics. Its RoHS compliance and lead-free construction meet stringent environmental requirements.
Packaging is provided in tape and reel format, facilitating efficient pick-and-place assembly processes in manufacturing environments.
This crystal unit is widely used in industrial, laboratory, telecommunications, computing, and embedded system applications, providing accurate and stable frequency references essential for system timing and control.
Standard frequency of 12 MHz for precise electronic timing. Surface mount HC-49-US package with 2-pin configuration. Load capacitance of 18 pF ensuring stability. Dimensions: 11.4 mm length, 4.7 mm width, and 2.7 mm height.
Operating temperature range: 0°C to 70°C. Series resistance of 50 Ω for optimal signal quality. RoHS compliant and lead-free for environmental safety. Packaged in tape & reel format for automated assembly. Explore more Crystal Units and related electronic components on EnvMart to find precision parts tailored to your industrial or laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 12 MHz, providing precise electronic timing.
The load capacitance is specified at 18 pF, which contributes to stable oscillation frequency.
It measures 11.4 mm in length, 4.7 mm in width, and 2.7 mm in height, making it suitable for compact designs.
The operating temperature range is from 0°C to 70°C, suitable for typical industrial environments.
The series resistance is 50 Ω, which helps minimize signal loss.
It is packaged in tape and reel format, facilitating efficient automated assembly processes.
Yes, it is RoHS compliant and lead-free, meeting environmental and safety standards.
This crystal unit has a pin count of 2, conforming to its surface mount design.
It uses an HC-49-US package type, which is common for surface mount devices.
This crystal unit is widely used in industrial, laboratory, telecommunications, computing, and embedded system applications.
The frequency tolerance is ±30 ppm, ensuring reliable performance in various applications.
This model belongs to the ABLS3 series, which includes various crystal units for electronic applications.
