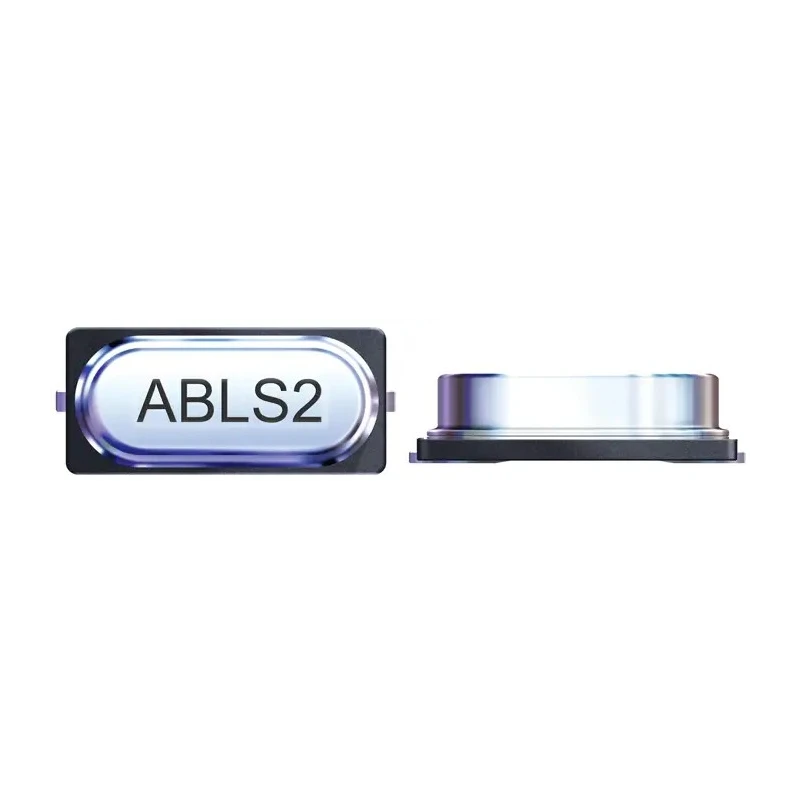

Abracon 18.432 MHz Surface Mount Crystal Unit ±30 ppm Load Capacitance 18pF HC-49-US Package ABLS2-18.432MHZ-D4Y-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 3.3mm |
| Length | 11.4mm |
| Model | ABLS2-18.432MHZ-D4Y-T |
| Packaging | Tape & Reel |
| Width | 4.7mm |
| Mount Type | Surface |
| Series | ABLS2 |
| Maximum Operating Temperature | 70°C |
| Package Type | HC-49-US |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 18.432MHz |
| Load Capacitance | 18pF |
| Series Resistance | 40Ω |
Key Features
- Standard frequency of 18.432 MHz with ±30 ppm frequency tolerance.
- Surface mount type with 2-pin HC-49-US package for easy PCB integration.
- Load capacitance of 18pF optimized for stability and performance.
- Tape and reel packaging supporting automated assembly processes.
- Operating temperature range from 0°C to 70°C suitable for standard industrial environments.
- Series resistance of 40 Ω for consistent signal quality.
- Complies with RoHS standards for environmental safety.
- Suitable applications include microprocessors, modems, computers, and wireless devices.
Product Description
Abracon ABLS2-18.432MHZ-D4Y-T is a surface mount crystal unit with a precise standard frequency of 18.432 MHz and a frequency tolerance of ±30 ppm. It features a compact HC-49-US package with two pins designed for surface mount technology, providing reliable and stable frequency control in electronic circuits.
This crystal unit has a load capacitance of 18pF, ensuring tight stability during operation. Its compact dimensions of 11.4 mm length, 4.7 mm width, and 3.3 mm height make it suitable for thin equipment and compact designs. The component is supplied in tape and reel packaging for ease of automated PCB assembly.
Operating reliably between 0°C and 70°C, the unit supports a frequency stability of ±50 ppm and exhibits a series resistance of 40 Ω. It complies with RoHS environmental regulations, making it a lead-free and environmentally friendly option.
Ideal for use in a wide range of applications including computers, modems, microprocessors, and wireless communication devices, this crystal unit delivers consistent performance and long-term stability. The ABLS2 series by Abracon is engineered for industrial, commercial, and laboratory electronic equipment.
Standard frequency of 18.432 MHz with ±30 ppm frequency tolerance. Compact HC-49-US surface mount package with 2 pins. Load capacitance is 18pF for reliable stability. Dimensions: 11.4 mm length, 4.7 mm width, 3.3 mm height.
Tape and reel packaging for automated assembly. Frequency stability ±50 ppm across operating temperature. Operating temperature range 0°C to 70°C. Series resistance of 40 Ω. RoHS compliant and lead-free for environmental safety.
Suitable for microprocessor and wireless applications.
This product is an essential component in electronic manufacturing and design, offering low profile and tight frequency accuracy for modern electronics. Discover more electronic components and advanced Crystal Units to complement your designs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 18.432 MHz.
It has a frequency tolerance of ±30 ppm.
The load capacitance is 18pF, optimized for stability and performance.
The dimensions of the package are 11.4 mm in length, 4.7 mm in width, and 3.3 mm in height.
The series resistance is 40 Ω, which helps maintain consistent signal quality.
The operating temperature range is from 0°C to 70°C.
It is packaged in tape and reel format, supporting automated assembly processes.
It is suitable for applications including microprocessors, modems, computers, and wireless devices.
It complies with RoHS standards for environmental safety.
This model has 2 pins.
It uses a surface mount type, specifically designed for easy PCB integration.
This crystal unit belongs to the ABLS2 series by Abracon.
