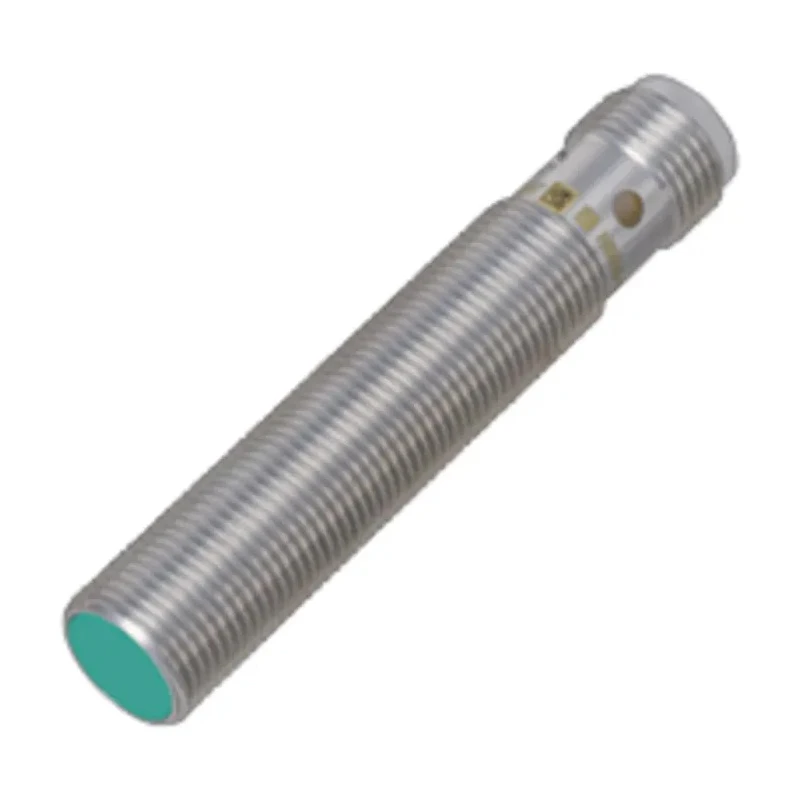

Pepperl + Fuchs Threaded Barrel Inductive Proximity Sensor M12 PNP 4 mm Detection 36V DC 240V AC NBN4-12GM50-A2-V1
Specifications
| Country of Origin | Vietnam |
|---|---|
| Brand | Pepperl + Fuchs |
| Length | 64.5mm |
| Model | NBN4-12GM50-A2-V1 |
| Depth | 12mm |
| IP Rating | IP68 |
| Width | 64.5mm |
| Mount Type | Non-Flush |
| Housing Material | Brass White Bronze Coated |
| Output type | PNP |
| Series | NBN |
| Maximum Operating Temperature | 85°C |
| Thread Size | M12 |
| Minimum Operating Temperature | -40°C |
| Switching Current | 200mA |
| Terminal type | M12 |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 36V dc |
| Maximum Switching Frequency | 2.65kHz |
| Standards/Approvals | ANSI/ESD, CE, CSA, DIN, EN, REACH, RoHS, UL 508 12, UL 508 4, UL 94 HB, UL 94 V-0, UL 94 V-2 |
| Maximum AC Voltage | 240V ac |
| Maximum Supply Voltage | 36V |
| Materials Detected | Polybutylene Terephthalate |
| Maximum Detection | 4mm |
Key Features
- Threaded barrel body style with M12 thread size offers easy mounting.
- Suitable for harsh environments with IP68 rating and brass white bronze coated housing.
- Operates at a maximum supply voltage of 36V DC and supports up to 240V AC.
- PNP output type with a switching current of 200mA and switching frequency of 2.65 kHz.
- Wide temperature range from -40°C to 85°C ensures versatile application.
- Non-flush mount type with M12 terminal for robust connectivity.
- Detects materials including polybutylene terephthalate accurately.
- Complies with ANSI/ESD, CE, CSA, DIN, EN, REACH, RoHS, and multiple UL standards.
Product Description
Pepperl + Fuchs NBN4-12GM50-A2-V1 is a high-quality threaded barrel inductive proximity sensor with M12 thread size, PNP output, and 4 mm maximum detection range. It operates with a supply voltage up to 36V DC and 240V AC, suitable for precise metal detection in automation and control systems.
This sensor features a robust brass white bronze coated housing that ensures maximum corrosion resistance and durability in industrial environments. With an IP68 rating, it is protected against dust and water ingress, making it ideal for outdoor and harsh applications.
The sensor provides non-flush mounting capability with a compact length and width of 64.5 mm, designed for easy integration into existing equipment. It operates efficiently across a wide temperature range of -40°C to 85°C and supports switching frequencies up to 2.65 kHz for fast response times.
Its PNP output and 200 mA switching current enable reliable signal transmission for automation control. The green end cap with a clearly visible LED allows easy visual status monitoring during operation.
The NBN4-12GM50-A2-V1 complies with multiple international standards such as ANSI/ESD, CE, CSA, DIN, EN, REACH, RoHS, and UL, ensuring safety and environmental compliance. It is well-suited for industrial, manufacturing, automation, and HVAC applications where precise metal sensing is required.
Threaded barrel with M12 size for secure mounting. White bronze coated brass housing for corrosion resistance. 4 mm detection range for metal sensing. Operating voltage support up to 36 V DC and 240 V AC. PNP output with 200 mA switching current.
IP68 protection for harsh environments. Wide operating temperature from -40°C to 85°C. Compliant with multiple safety and environmental standards. Explore a wide range of Proximity Sensors and related automation components at EnvMart for your industrial sensing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 4 mm.
It operates at a maximum supply voltage of 36V DC and supports up to 240V AC.
This unit features a PNP output type with a switching current of 200 mA.
The sensor has a length and width of 64.5 mm and a depth of 12 mm.
It has an IP68 rating, making it suitable for harsh environments with protection against dust and water ingress.
The operating temperature range is from -40°C to 85°C.
The maximum switching frequency is 2.65 kHz, allowing for fast response times.
It is capable of detecting materials including polybutylene terephthalate.
It features a non-flush mounting capability with a threaded barrel design and M12 thread size for secure installation.
This model complies with multiple standards including ANSI/ESD, CE, CSA, DIN, EN, REACH, RoHS, and UL standards.
The housing is made from brass white bronze coated material, providing corrosion resistance.
It uses an M12 terminal type for robust connectivity.
