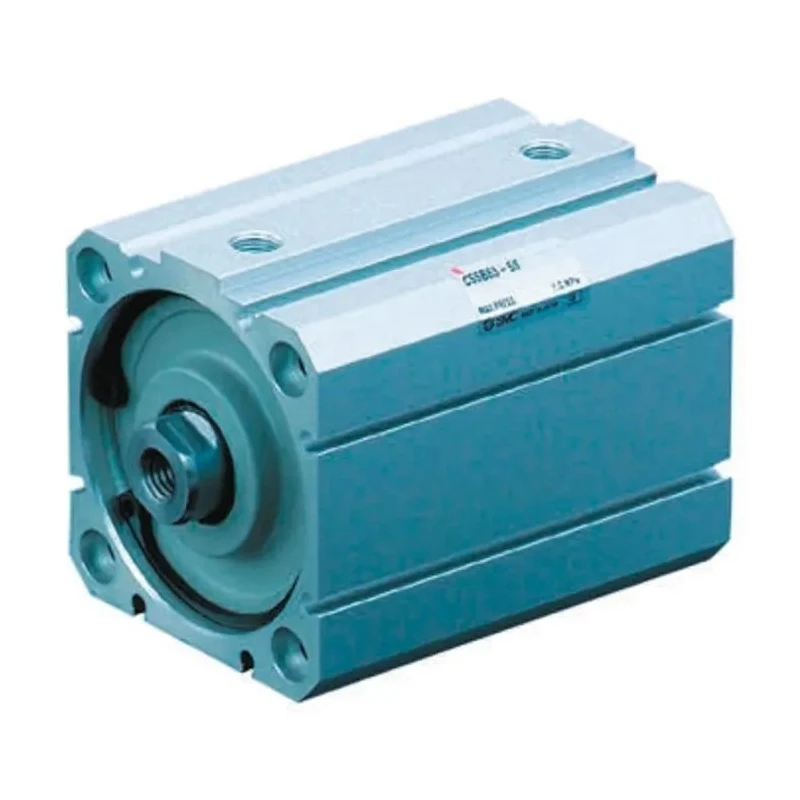

SMC Pneumatic Compact Cylinder 20mm Bore, 5mm Stroke, Double Acting, Aluminium Alloy Body, CD55 Series
Specifications
| Country of Origin | France |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1 Mpa |
| Height | 36mm |
| Length | 48mm |
| Model | CD55 |
| Gross Weight | 111g |
| Width | 36mm |
| Mount Type | Through Hole |
| Series | CD55 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 5mm |
| Bore Diameter | 20mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 21287 |
| Cushioning Type | Rubber |
| Piston Rod Gender | Female |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | 10 mm |
Key Features
- The cylinder body is constructed from durable aluminium alloy.
- It operates under a maximum pressure of 1 MPa for reliable performance.
- Rubber cushioning ensures smooth and quiet operation.
- The actuator has a single rod type with a female piston rod thread sized at 10 mm.
- Designed to withstand temperatures from -10°C to 70°C.
- Compact dimensions of 48mm length and 36mm width and height allow easy integration in tight spaces.
- Standard metric piston rod thread and adherence to ISO 21287 ensure compatibility and quality.
Product Description
SMC CD55B20-5 Pneumatic Compact Cylinder is engineered with a 20mm bore and a 5mm stroke to provide efficient linear motion for industrial automation purposes. This double acting cylinder features an aluminium alloy body that offers a lightweight yet robust construction suitable for various pneumatic systems.
Operating at a maximum pressure of 1 MPa and piston speed up to 500mm/s, it delivers swift and precise actuation. The rubber cushioning provides noise reduction and reduces impact loads, thus prolonging component life.
The compact dimensions (48mm length, 36mm width and height) make it ideal for use in enclosed or space-constrained environments. It supports a single rod with a female piston thread sized 10 mm conforming to metric standards, enhancing its versatility in assembly applications.
Designed and manufactured to ISO 21287 standards, this cylinder guarantees quality and interchangeability. It is capable of performing reliably across temperature ranges from -10°C to 70°C, suitable for commercial, industrial, and laboratory automation needs.
The cylinder features an aluminium alloy body for strength combined with lightness. Compact size allows integration in automation and pneumatic machinery where space is limited. Designed for double acting performance, ensuring push and pull functionality.
Rubber cushioning minimizes noise and mechanical shock at stroke ends. Suitable for fluid power tools and automation systems requiring compact linear actuators. Ideal for industrial manufacturing, pneumatic control applications, and mechanical motion systems.
Set your automation projects up with high-quality ISO standard pneumatic compact cylinders by SMC, a trusted leader in pneumatic solutions.
Explore more products in our Pneumatic Cylinder category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this model is 20mm.
The stroke length of this cylinder is 5mm.
It operates under a maximum pressure of 1 MPa.
The compact cylinder has dimensions of 48mm in length, 36mm in width, and 36mm in height.
It is designed to operate within a temperature range of -10°C to 70°C.
This model features rubber cushioning, which helps to reduce noise and mechanical shock.
The cylinder uses a single rod type with a female piston rod thread.
It is designed and manufactured to conform to ISO 21287 standards.
The gross weight of this cylinder is 111g.
It features a through hole mount type for installation.
This cylinder is suitable for various pneumatic control applications and industrial automation needs.
The piston rod thread size is 10 mm and conforms to metric standards.
