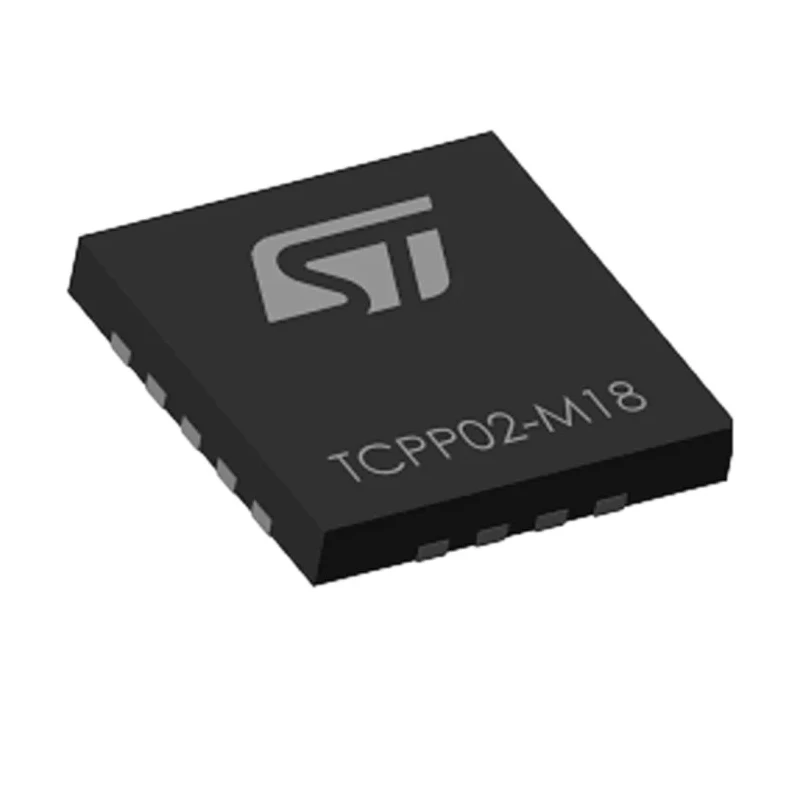

STMicroelectronics USB Controller, USB Type C, 2.7 V to 5.5 V Supply, 18-Pin QFN-18 TCPP02-M18

STMicroelectronics TCPP02-M18 USB Controller is a dedicated MCU companion chip designed for USB Type C source applications, providing comprehensive protection and control to ensure safe compliance with USB-C specifications.

This device supports a power supply voltage range from 2.7 V to 5.5 V and is enclosed in a compact and low-profile QFN-18 package measuring 3.5 mm in length and 0.6 mm in height, making it ideal for dense PCB layouts.

Key features include integrated 24 V tolerant ESD protection on communication channel pins (CC), overvoltage protection against short circuits between CC and VBUS pins, an externally programmable VBUS overcurrent protection (OCP), and an integrated charge pump with a gate driver to control external N-channel MOSFETs efficiently.

The controller also provides VBUS current sensing with an analog output, active discharge on VBUS and VCONN lines, over-temperature protection, and overvoltage protection on CC lines. VCONN OCP is limited to 100 mW max with overvoltage protection up to 6 V max.

Communication is facilitated through a versatile I2C interface supporting two addresses, enabling flexible integration within system architectures. The device complies with USB-C Power Delivery Standard 3.1 for the standard power range (up to 100 W) and is ECOPACK2 compliant for environmental standards.

Suitable for use in industrial, automotive, consumer electronics, and computing equipment, the TCPP02-M18 enhances system reliability and safety in USB Type C power and data delivery implementations.

The device supports a supply voltage range from 2.7 to 5.5 volts for versatile integration. It features 24 V tolerant ESD protection compliant with IEC61000-4-2 level 4 standards. Includes overvoltage and overcurrent protection on CC pins for enhanced circuit safety.

The integrated charge pump and gate driver support external N-channel MOSFETs. Designed for USB Type C power delivery up to 100 W with Programmable Power Supply compliance. Operates reliably across a temperature range of -40°C to 125°C, suitable for automotive and industrial environments.

I2C communication interface supports dual addressability for flexible control. Compact 3.5 mm length and 0.6 mm height in a surface mount QFN-18 package. Explore more USB Interface ICs and semiconductor solutions for advanced power and communication management at EnvMart.
