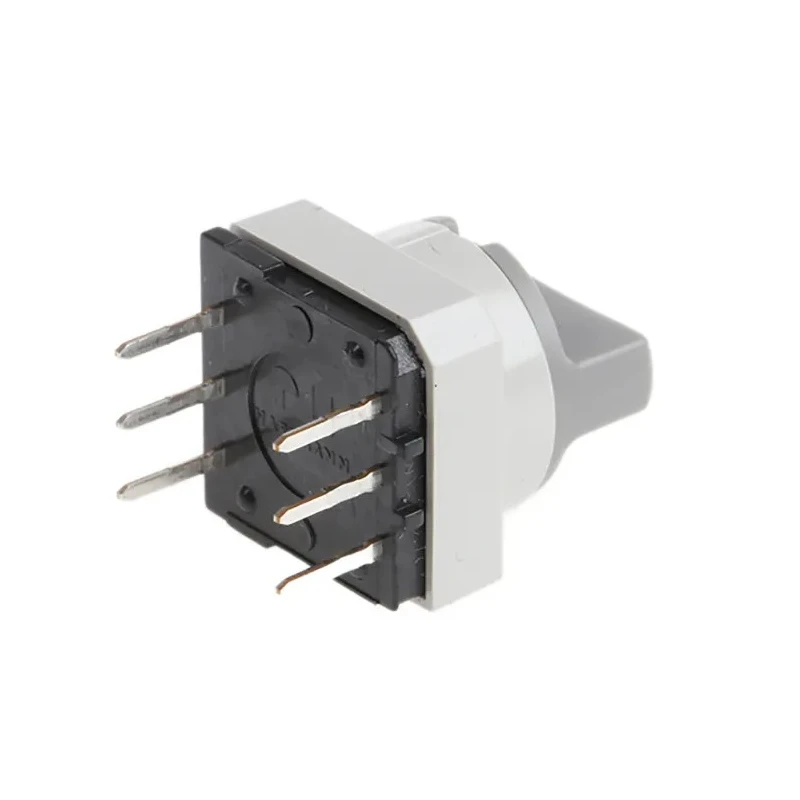

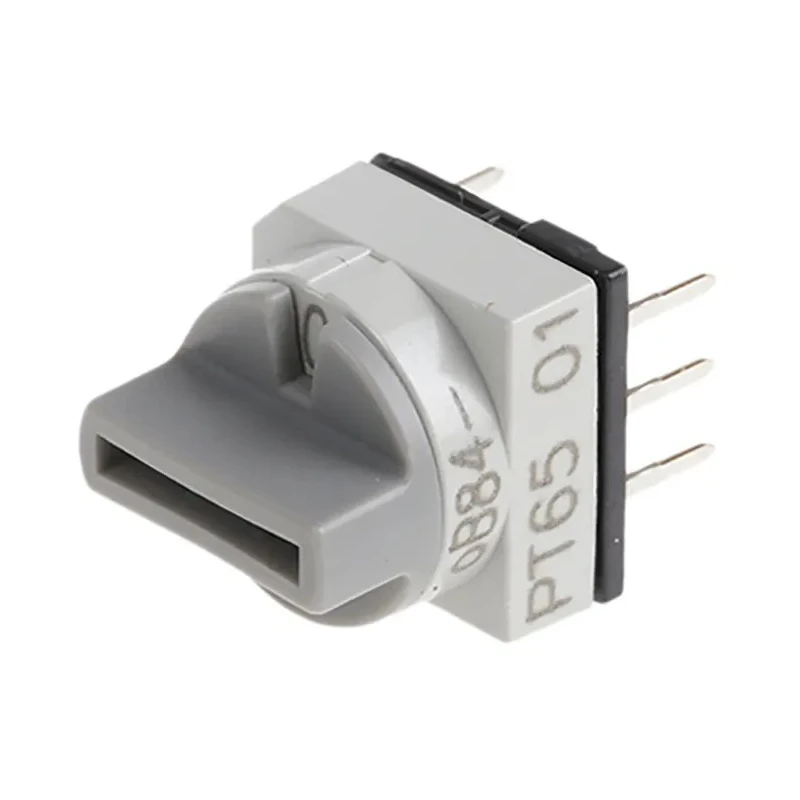

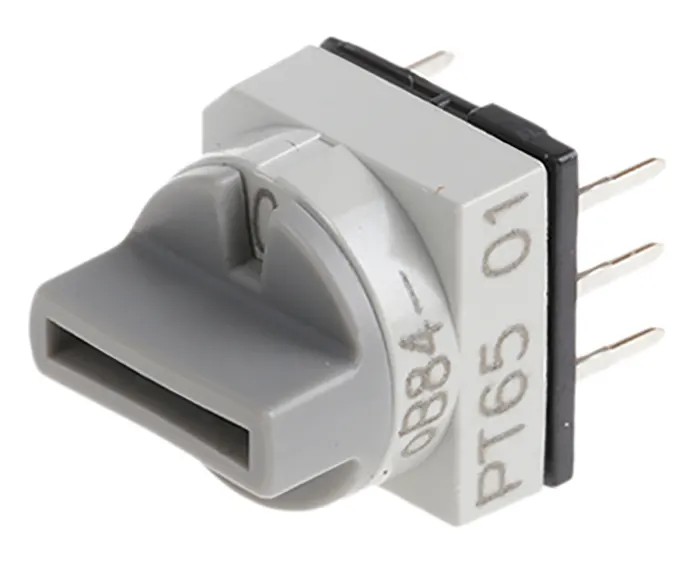

Hartmann Segment Wheel Rotary Coded DIP Switch Through Hole Solder PT65501

Hartmann PT65501 Segment Wheel Rotary Coded DIP Switch is designed for precision rotary coding applications in electrical and automation systems. This high-quality switch features a segment wheel actuator providing accurate position selection and reliable operation in industrial environments.

Built for through-hole mounting on printed circuit boards (PCB), it uses solder terminals for secure connections. The switch's gold plated contacts reduce contact resistance and increase longevity, suitable for flux sealed and process washable usage scenarios prevalent in manufacturing and industrial automation.

The contact rating is 150mA at 24Vdc, ensuring dependable switching performance for low voltage control circuits. The positive detent mechanism offers tactile feedback confirming switch positioning during operation, thus enhancing usability.

The device withstands soldering temperatures of up to 340°C for 2 seconds using a 40 watt iron or up to 260°C for 10 seconds, complying with standard PCB assembly processes. It delivers a long mechanical life exceeding 100,000 operations, making it suitable for continuous industrial use.

Segment wheel actuator for precise rotary coding. Through hole mounting with solder terminals for strong PCB attachment. Rated contact capacity: 150mA at 24Vdc for diverse control applications. Gold plated contacts provide reduced resistance and corrosion resistance.

Flux sealed and process washable design supports industrial PCB manufacturing. Positive detent offers reliable positional feedback for operators. Compliant soldering temperature resistance ensures assembly compatibility.

Durability rated for more than 100,000 switch cycles.

Typical industrial use cases include electrical control panels, automation equipment, instrumentation devices, and other low power switching applications in manufacturing, HVAC, and laboratory systems. As a premium German-made component, this Rotary Coded DIP Switch meets stringent quality standards for reliable performance.
