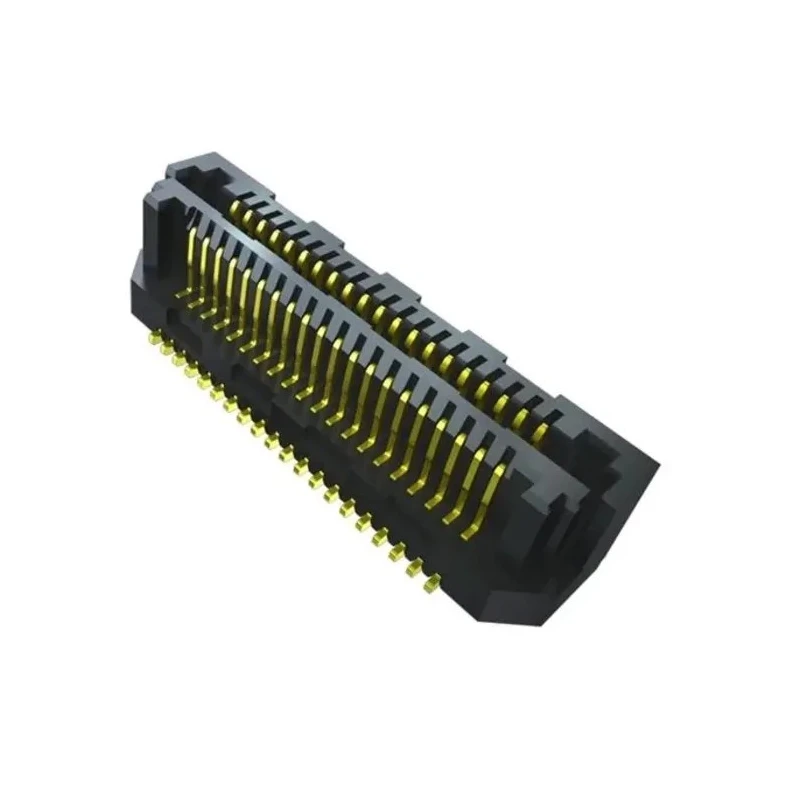

Samtec PCB Header Horizontal Surface Mount 80 Contacts 0.635 mm Pitch 2 Row Shrouded LSS-140-01-L-DV-A-K-TR

Samtec LSS-140-01-L-DV-A-K-TR PCB Header is a high-speed, hermaphroditic, horizontal surface mount connector designed for demanding electronic applications. This connector features 80 male contacts arranged in two rows with a precise 0.635 mm pitch, ideal for high-density PCB interconnections. The shrouded housing is constructed from Liquid Crystal Polymer, providing mechanical strength and thermal stability.

The contacts utilize phosphor bronze material with light selective gold plating (0.000254 mm) in the contact area to ensure optimal signal integrity and resistance to corrosion. The tail pins are matte tin plated and measure 1.27 mm in length, designed for secure solder connections. This component supports a maximum current of 1.7 A and a voltage rating of 30 V, suitable for low-voltage signal and power transfer.

The connector operates reliably over a wide temperature range from -55°C up to 125°C, making it applicable in industrial, telecommunications, computing, and other electronic manufacturing sectors. The dual-row configuration and shrouded layout enhance mechanical protection and proper alignment during assembly.

Packaged in tape and reel format with polyimide film pick and place pads, it supports efficient automated assembly in production lines. Alignment pins ensure precision placement on the PCB.

This product meets RoHS compliance, confirming environmentally friendly manufacturing and materials. It is an excellent choice for high-density board-to-board interconnection solutions in industrial, communication, and technology equipment applications.

Designed for board-to-board applications with horizontal orientation. Features a shrouded body made of Liquid Crystal Polymer for enhanced durability. Contacts are made of phosphor bronze with gold plating for excellent conductivity and corrosion resistance.

Supports a current rating of 1.7 A and operates at voltages up to 30 V. Operating temperature range spans from -55°C to 125°C, suitable for demanding environments. Includes 1.27 mm tail pin length and 4.3 mm mating pin length for reliable solder termination.

Complies with RoHS standards ensuring environmental compliance. Explore more PCB Headers and connectors at EnvMart to meet all your electronic manufacturing needs.
