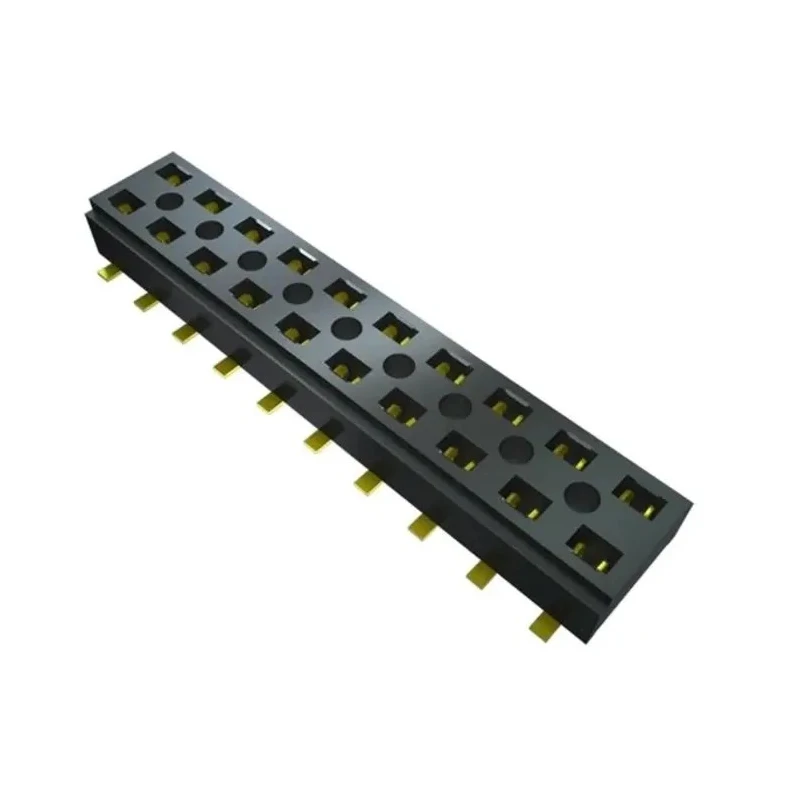

Samtec CLT Series Vertical Surface PCB Socket 10 Contacts 2 Row 2 mm Pitch Solder CLT-105-02-G-D-BE-A-K-TR

The Samtec CLT-105-02-G-D-BE-A-K-TR is a vertical surface mount PCB socket belonging to the CLT series. It offers a robust board-to-board connection solution with 10 contacts arranged in 2 rows with a 2 mm pitch. The socket features a dual wipe contact design providing reliable electrical connectivity in harsh conditions.

Constructed with a high-performance liquid crystal polymer housing material, this socket is suited for applications requiring mechanical stability and high temperature endurance from -55°C up to 125°C. Contact parts are made from phosphor bronze and are plated with gold to ensure excellent conductivity and resistance to oxidation.

With a current rating of 4.1 A, it supports moderate power electronic devices and is ideal for use in industrial electronics, telecommunications, instrumentation, and computing hardware. The socket includes bottom entry and alignment pins for precise positioning on the PCB, enhancing assembly accuracy.

The termination is via solder, compatible with surface mount technology (SMT) assembly lines, and it is supplied in tape and reel format facilitating high-volume automated production. The dual row configuration and rugged design make it suitable for environments demanding durability and continuous performance.

Rugged reliable dual wipe socket design ensuring stable electrical contact. Gold plated phosphor bronze contact material for enhanced reliability. Liquid crystal polymer housing for high thermal and mechanical performance.

2 mm pitch and 2 rows for compact and efficient PCB layout. Operating temperature range from -55°C to 125°C for wide environmental tolerance. Suitable for board-to-board connector systems requiring vertical orientation. Tape and reel packaging supports efficient automated mounting systems.

This Samtec PCB socket series is well suited for industrial, communications, computing, and high-reliability electronic applications. Browse the electronics components category on EnvMart for more PCB Sockets and connectors from trusted brands that meet industrial and commercial standards.
