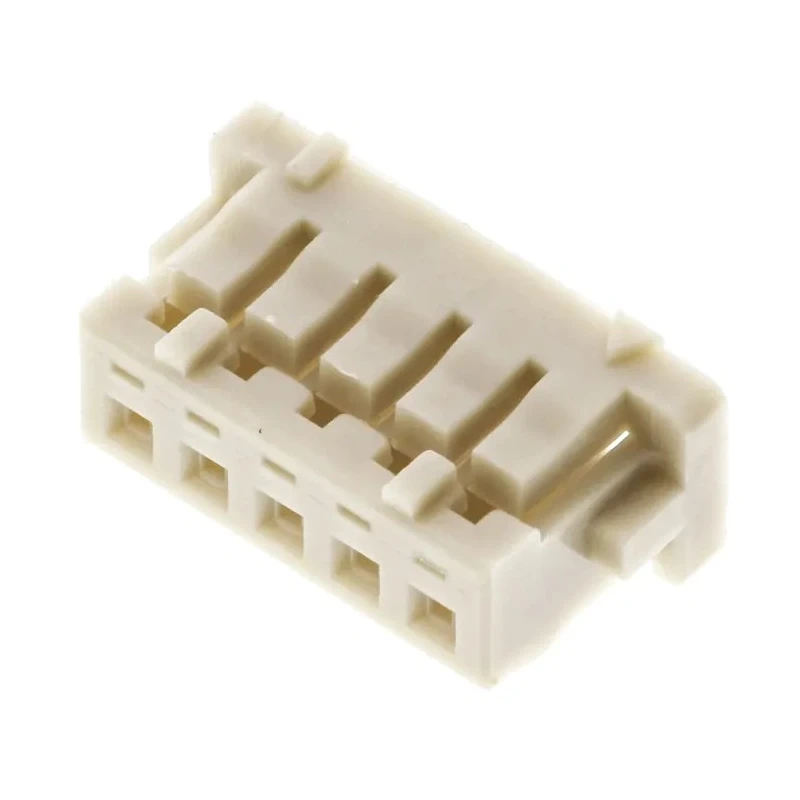

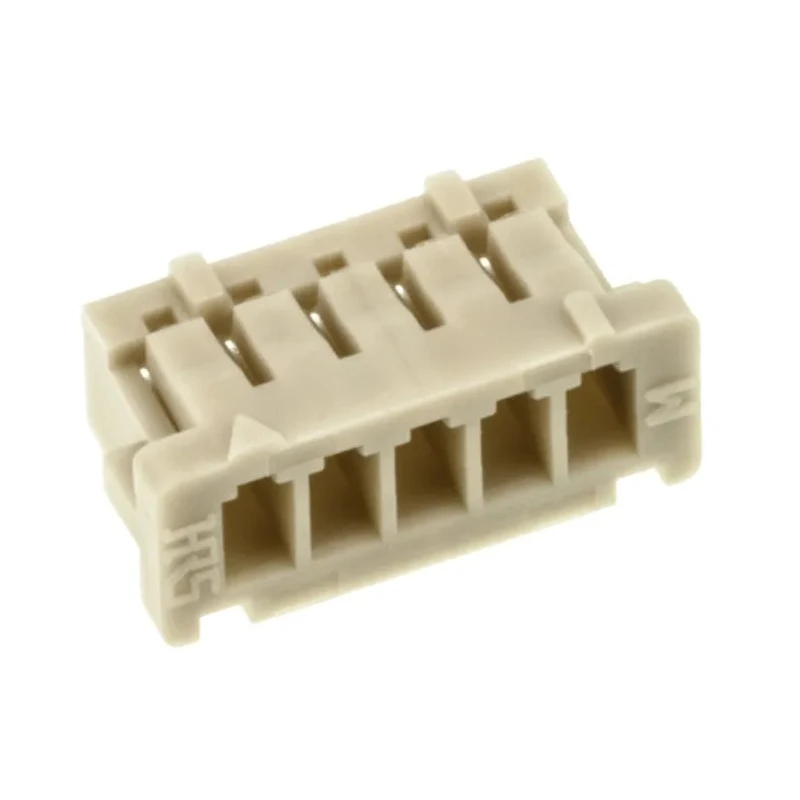

Hirose DF13 Male Connector Housing, 1.25 mm Pitch, 5 Way, 1 Row Straight
Specifications
| Country of Origin | India |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 7.9mm |
| Model | DF13 |
| Width | 3.2mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | DF13 |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| For Use With | Miniature Crimping Connector |
| Number of Contacts | 5 |
| Connector Gender | Male |
| Hirose, DF13 Male PCB Housing, 1.25mm Pitch, 5 Way, 1 RowBrand | Hirose |
Key Features
- Constructed from durable polyamide housing material for reliability.
- Miniature size suitable for compact electronic device integration.
- Friction locking mechanism secures mating to prevent incorrect insertion.
- Commonly used with miniature crimping connectors for diverse applications.
- Targeted for use in digital cameras, LCD displays, video recorders, car navigation, and measurement devices.
- Offers a 1.25 mm pitch allowing tight packing of multiple signals.
- Single row configuration enhances space-saving design without sacrificing density.
- Straight cable mount type for easy assembly in cable harnesses.
Product Description
Hirose DF13-5S-1.25C Male Connector Housing provides a compact, reliable solution for PCB wire housing applications requiring a 1.25 mm pitch and 5-way contact arrangement. Designed for electronic components, this connector housing is crafted from robust polyamide material, ensuring durability in industrial and commercial use.
This connector is intended for cable mount installations with a straight orientation, making it ideal for incorporation into miniature crimping systems where precision and secure connections are critical. Its friction locking mechanism prevents incorrect mating, enhancing connection integrity.
The miniature size of the DF13 series enables its use in space-constrained electronics such as digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement devices.
Features include a single row with 5 contacts and 1.25 mm pitch that balances compact design with sufficient density for multiple signal transmissions, making it a versatile choice for electronic manufacturing and assembly.
Durable polyamide housing for long-lasting performance. Miniature compact design suited for limited space applications. Friction locking to ensure secure mating connectors. Suitable for various electronic device applications.
1.25 mm pitch, 5 contacts in single row configuration. Straight orientation for cable mounting ease. Compatible with miniature crimping connector systems.
Use this Connector Housing in electronic manufacturing, laboratory equipment, automotive electronics, and industrial instrumentation for reliable and compact wire-to-board connections. Explore more Hirose connector solutions and components in EnvMart's Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose DF13 Male Connector Housing features a 1.25 mm pitch and has 5 contacts in a single row configuration.
This connector housing has a straight orientation, which facilitates easy assembly in cable harnesses.
It is constructed from durable polyamide material, ensuring reliability in various applications.
The dimensions of the housing are 7.9 mm in length and 3.2 mm in width.
This model supports cable mounting, making it suitable for various electronic device integrations.
It is commonly used in digital cameras, LCD displays, video recorders, car navigation systems, and measurement devices.
Yes, it is designed for use with miniature crimping connectors, ensuring secure connections.
The connector gender for this housing is male.
The friction locking mechanism secures the mating of the connectors, preventing incorrect insertion and enhancing connection integrity.
This connector housing belongs to the DF13 series, which is known for its compact design and reliability.
The country of origin for the Hirose DF13 Male Connector Housing is India.
It is intended for PCB wire housing applications requiring a compact and reliable solution for electronic components.
