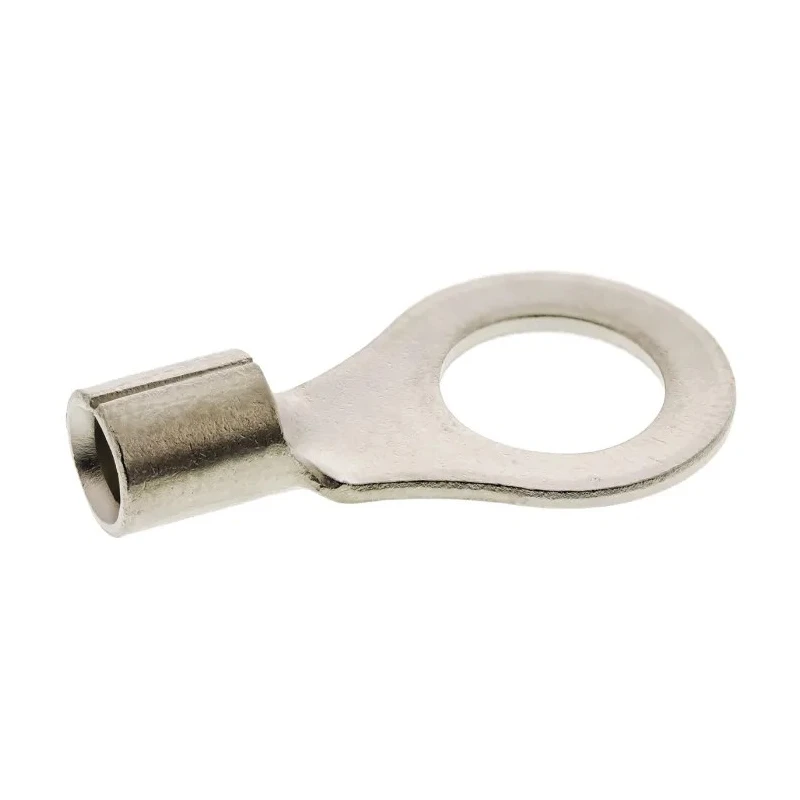

TE Connectivity STRATO-THERM Uninsulated Ring Terminal, M8 Stud Size, 12 AWG to 10 AWG Wire Size 323064

Name: TE Connectivity STRATO-THERM Uninsulated Ring Terminal, M8 Stud Size, 12 AWG to 10 AWG Wire Size 323064
Brand: TE Connectivity
SKU: 111567
Price: 2.3 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
THICKNESS	0.99mm
Model	323064
Insulation	Uninsulated
Overall Length	25.5mm
Contact Material	Copper
Series	STRATO-THERM
Maximum Operating Temperature	343°C
Standards/Approvals	RoHS
Contact Plating	Nickel
Minimum Wire Size mm²	2.6mm²
Maximum Wire Size mm²	6.6mm²
Minimum Wire Size AWG	12AWG
Maximum Wire Size AWG	10AWG
Outer Ring Diameter	13.49mm
Inner Ring Diameter	8.33mm
Stud Size	M8

Key Features

Constructed from copper with nickel plating for superior conductivity and corrosion resistance.
Uninsulated design suitable for heat-resistant environments up to 343°C.
Outer ring diameter of 13.49 mm and inner ring diameter of 8.33 mm for secure connection.
Overall length of 25.5 mm with a thickness of 0.99 mm ensuring durability.
Compatible with both solid and stranded conductors within specified wire size range.
Manufactured to RoHS standards ensuring compliance with environmental regulations.
Maximum wire size supports up to 6.6 mm² cross-sectional area.
Minimum wire size is 2.6 mm² providing versatile application range.

Product Description

TE Connectivity 323064 STRATO-THERM Uninsulated Ring Terminal is an advanced wire terminal designed for industrial and electronic components applications requiring heat resistance and durable connections. It is specifically engineered for environments where standard insulated crimps cannot operate due to high temperatures.

This ring terminal features a nickel-plated copper contact material to optimize electrical connectivity and resist corrosion, ensuring long-lasting performance. The uninsulated construction supports operating temperatures up to 343°C, making it ideal for demanding applications in manufacturing, automotive, HVAC systems, and laboratory equipment.

The ring terminal has an outer ring diameter of 13.49 mm and an inner ring diameter of 8.33 mm, with an overall length of 25.5 mm and thickness of 0.99 mm, supporting both 12 AWG and 10 AWG wire sizes.

Installation involves crimping, where the wire is forced into serrations in the terminal barrel to maximize the electrical contact area. The design suits both solid and stranded conductors, ensuring compatibility with a variety of wire types. Manufactured to RoHS compliance, it meets environmental standards for electronic components.

Constructed from copper with nickel plating for superior conductivity and corrosion resistance. Uninsulated design suitable for heat-resistant environments up to 343°C. Outer ring diameter of 13.49 mm and inner ring diameter of 8.33 mm for secure connection.

Overall length of 25.5 mm with a thickness of 0.99 mm ensuring durability. Compatible with both solid and stranded conductors within specified wire size range. Manufactured to RoHS standards ensuring compliance with environmental regulations.

Maximum wire size supports up to 6.6 mm² cross-sectional area. Minimum wire size is 2.6 mm² providing versatile application range.

Commonly used in industrial, electronic manufacturing, automotive wiring, and HVAC systems, this terminal ensures reliability in harsh conditions. Suitable for professionals requiring heat-resistant, uninsulated ring terminals.

Explore more quality Ring Terminals and electronic components at EnvMart to meet your project needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This uninsulated ring terminal can operate at temperatures up to 343°C, making it suitable for heat-resistant environments.

It supports a minimum wire size of 12 AWG (2.6 mm²) and a maximum wire size of 10 AWG (6.6 mm²), accommodating both solid and stranded conductors.

The outer ring diameter is 13.49 mm, while the inner ring diameter measures 8.33 mm, ensuring a secure connection.

The overall length of the terminal is 25.5 mm with a thickness of 0.99 mm, providing durability for various applications.

It is constructed from copper with nickel plating, which enhances conductivity and provides corrosion resistance.

Yes, it is manufactured to RoHS standards, ensuring compliance with environmental regulations for electronic components.

Installation involves crimping, where the wire is forced into serrations in the terminal barrel to maximize electrical contact area.

This terminal is commonly used in industrial, electronic manufacturing, automotive wiring, and HVAC systems, particularly in harsh conditions.

The terminal is designed for an M8 stud size, ensuring compatibility with corresponding hardware.

This model is uninsulated, making it suitable for environments where standard insulated terminals cannot operate due to high temperatures.

The contact material is copper, which is nickel plated to enhance its performance in electrical connectivity and corrosion resistance.

There are no specific combinations or variants listed for this model; it is offered as a single type designed for specified wire sizes and applications.
