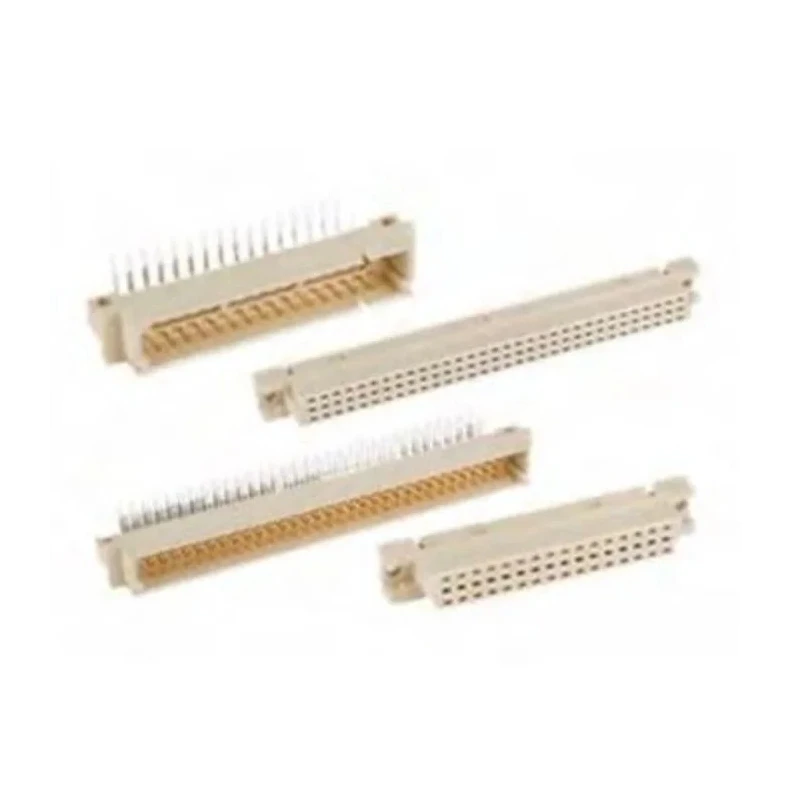

Amphenol Communications Solutions DIN 41612 Connector 64 Way 2.54 mm Pitch, Type C, Press Fit 86094648194755E3LF

Amphenol Communications Solutions model 86094648194755E3LF is a DIN 41612 Connector specialized in backplane and rack connector applications. This 64 way connector features a 2.54 mm pitch and Type C subtype with press fit termination designed for board-to-board and I/O solutions requiring high reliability and durability. The connector has a female gender orientation arranged in two vertical rows, making it suitable for dense electronic interconnects.

The connector employs gold over nickel plating on copper alloy contacts, enhancing corrosion resistance and electrical performance. The housing material is made of polyester thermoplastic, providing mechanical strength and insulation withstand. Its operating temperature range from -55°C to 125°C allows it to perform in harsh industrial and electronic environments. It complies with international standards including IEC 603-2, DIN 41612, UL, NFF 16-101/102 and EN45545-2, ensuring safety and interoperability.

With a current rating of 1.5A and a max contact resistance of 20 milliohms, this connector is ideal for reliable signal and power transmission in electronic assemblies. The press fit termination type facilitates solderless PCB mounting, improving assembly efficiency and signal integrity. This connector is widely used in industrial electronics, communication systems, data processing equipment, and embedded computing units.

Features gold over nickel contact plating to ensure reliable electrical connections. Constructed with polyester thermoplastic housing for durability and insulation. Operates within a temperature range of -55°C to 125°C for diverse environmental conditions.

Designed according to IEC 603-2, DIN 41612, UL and EN45545-2 standards for quality assurance. Supports a current rating of 1.5 amperes suitable for various electronic applications. Female connector gender with two rows and 64 contacts for extensive connectivity options.

Press fit termination allows for secure and robust PCB mounting without soldering. Maximum contact resistance of 20 milliohms ensures low signal loss during operation. Ideal for industrial electronics, communication modules, backplanes, and rack mounting.

This DIN 41612 connector from Amphenol Communications Solutions offers robust performance for electronic component assemblies in industrial, communication, and data processing applications. Its compliance with multiple standards, temperature resilience, and reliable electrical properties make it a dependable choice for designers and engineers seeking durable backplane connectors. Explore similar DIN 41612 Connectors at EnvMart to find the ideal configuration for your electronic projects.
