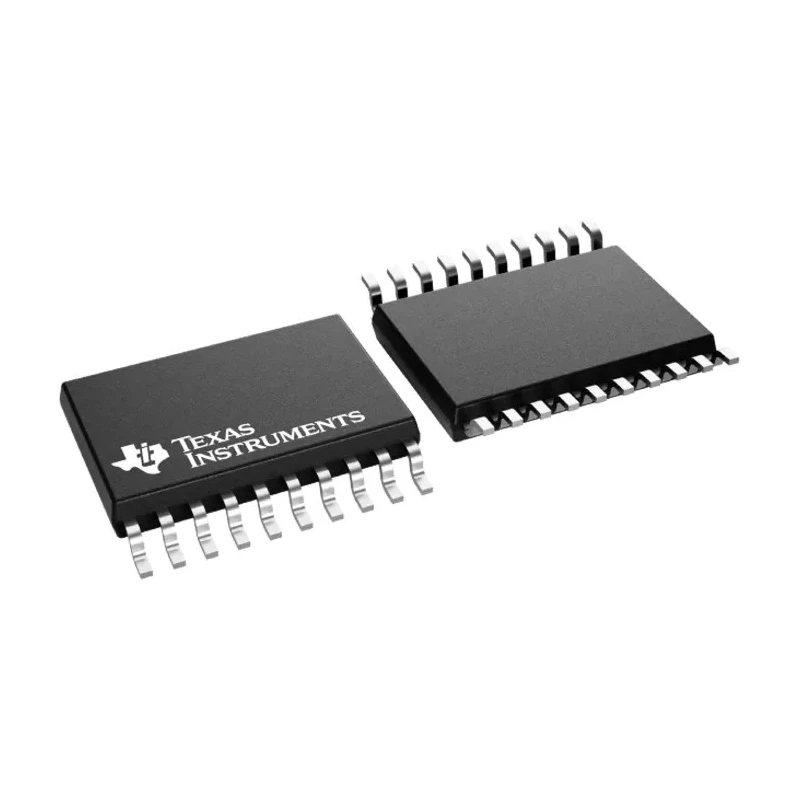

Texas Instruments CMOS Buffer & Line Driver, 1 Channel, 20-Pin TSSOP, 1.65V to 3.6V Supply SN74LVC541APWR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 2mm |
| Length | 7.5mm |
| Model | SN74LVC541APWR |
| Mount Type | Surface |
| Output type | CMOS |
| Series | SN74LVC541A |
| Input Type | CMOS |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | CMOS |
| Logic Function | Buffer |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -24mA |
| Maximum Low Level Output Current | 24mA |
Key Features
- Operates on a minimum supply voltage of 1.65V and a maximum supply voltage of 3.6V.
- Supports one CMOS logic channel with buffer function for signal integrity.
- Equipped with 20 pins in a low-profile TSSOP package measuring 7.5mm length and 2mm height.
- Designed for operating temperatures from -40°C up to 125°C with RoHS compliance.
- Output current ratings include maximum low level output current of 24mA and maximum high level output current of -24mA.
- Ideal for electronic components applications requiring CMOS buffer and line driver capabilities.
- Surface mount technology (SMT) compliant for automated PCB assembly.
Product Description
Texas Instruments SN74LVC541APWR is a CMOS Buffer & Line Driver integrated circuit designed for reliable digital signal buffering in electronic and semiconductor assemblies. This device is packaged in a 20-Pin TSSOP surface-mount form factor, offering compact and efficient footprint suitable for high-density PCB designs.
Operating across a voltage range from 1.65V minimum to 3.6V maximum, the SN74LVC541APWR supports one CMOS logic channel delivering precise buffer functionality essential for stabilizing logic signals and driving loads effectively. Its rated output current of ±24mA ensures strong drive capability for a wide range of applications.
The IC operates over a broad industrial temperature range of -40°C to 125°C, providing versatility for use in demanding environmental conditions. Additionally, the device complies with RoHS standards ensuring compliance with environmental regulations.
Measurement dimensions of the package are 7.5mm in length and 2mm in height, making it suitable for compact circuit layouts. Its surface mount package type enables easy integration into modern PCB manufacturing workflows.
This buffer and driver IC finds applications in electronic circuits requiring CMOS logic interfacing, signal buffering, and line driving for improved signal integrity, commonly used in automotive, industrial, and consumer electronics sectors.
Operates at supply voltages from 1.65V to 3.6V ensuring compatibility with low voltage logic systems. Delivers high output current drive capability to support demanding load requirements. Designed to meet RoHS compliance ensuring environmentally responsible manufacturing.
Surface mount package enables efficient automated assembly and compact PCB designs. Industrial temperature range supports use in harsh operating environments. Explore a range of semiconductor components and Logic ICs at EnvMart for your electronic design and development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates on a supply voltage range from 1.65V to 3.6V.
It has a maximum low level output current of 24mA and a maximum high level output current of -24mA.
The package measures 7.5mm in length and 2mm in height.
It is designed to operate within a temperature range of -40°C to 125°C.
This model supports one CMOS logic channel.
It features a surface mount type for easy integration into PCB designs.
Yes, it complies with RoHS standards, ensuring environmentally responsible manufacturing.
It functions as a buffer, providing signal integrity and drive capabilities.
It accepts CMOS input types, suitable for various digital applications.
This device belongs to the CMOS logic family.
The SN74LVC541APWR has a pin count of 20.
The device is manufactured in India.
