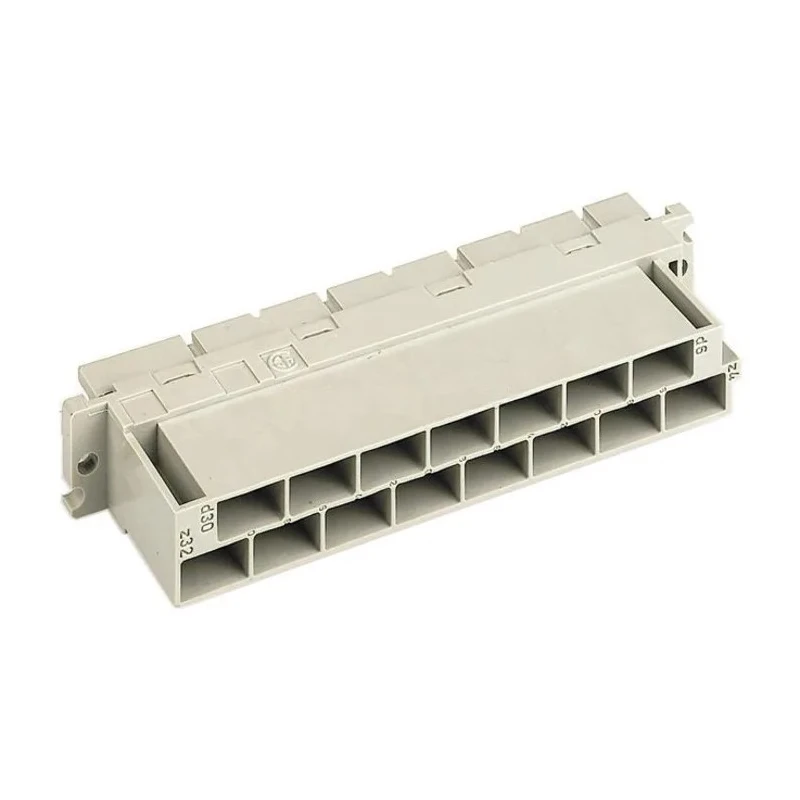

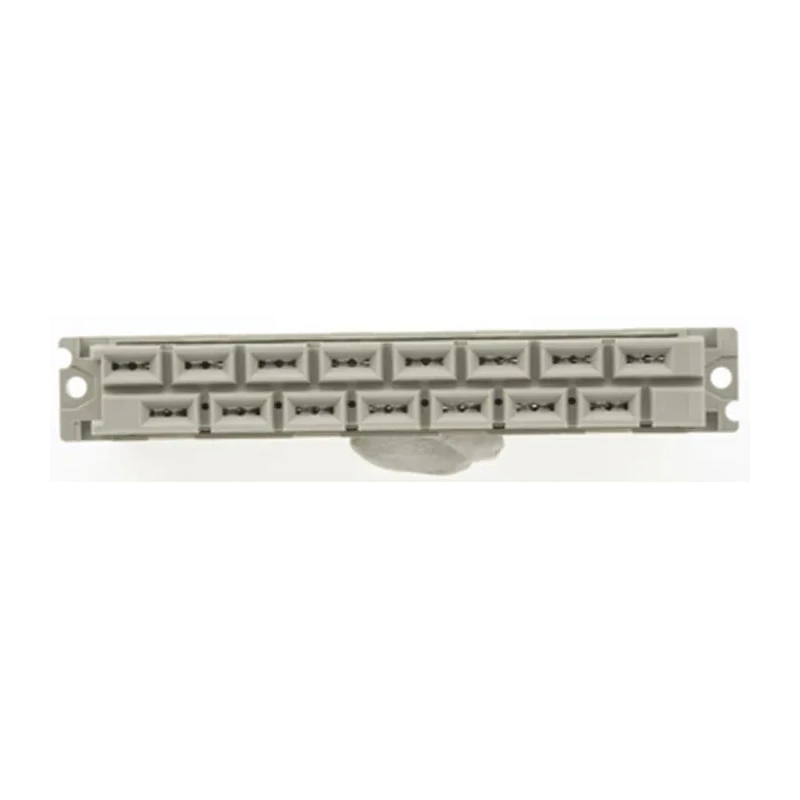

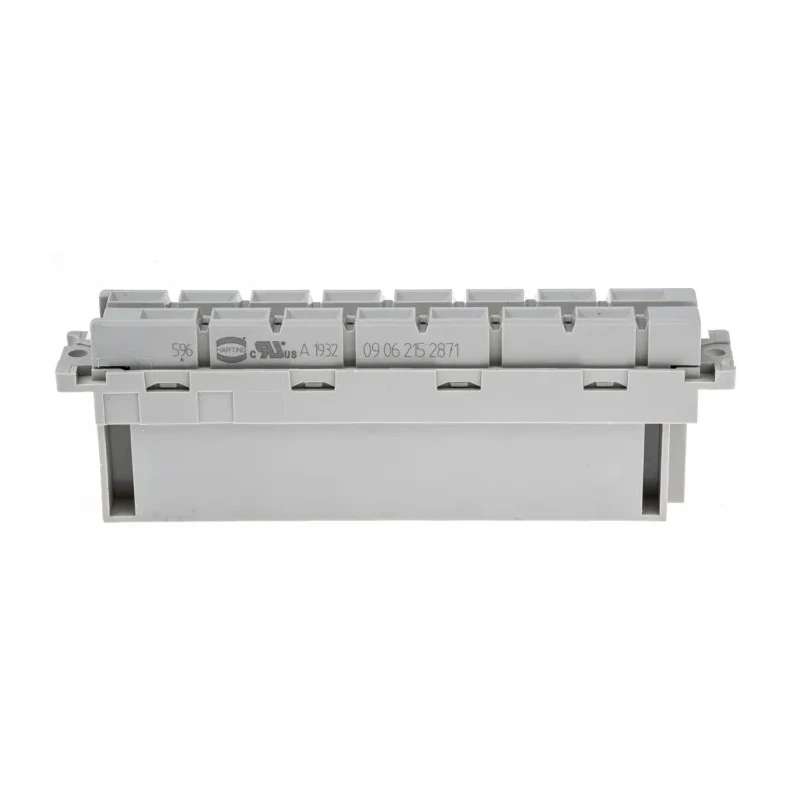

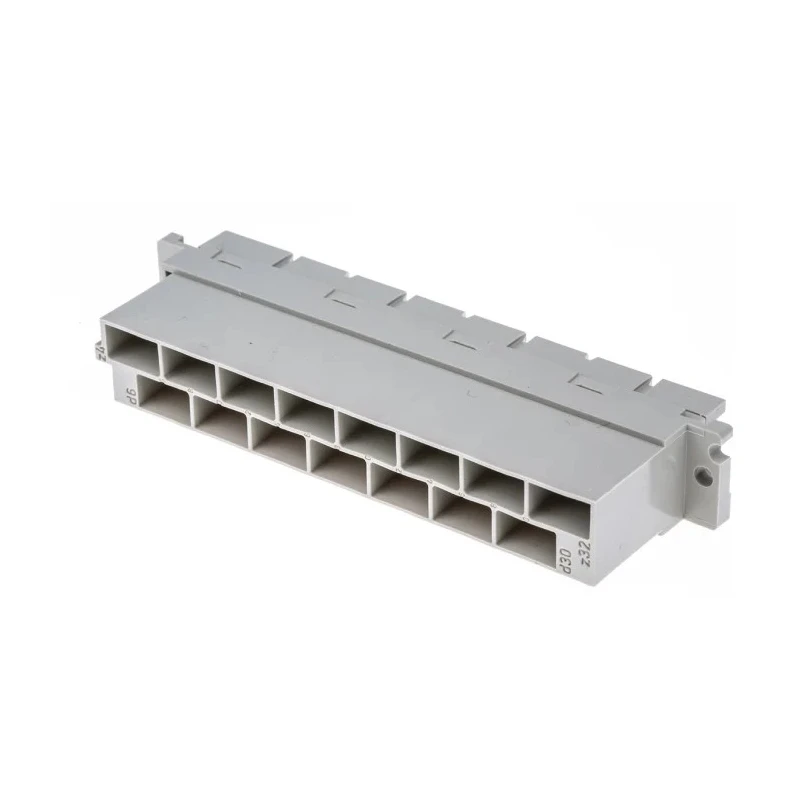

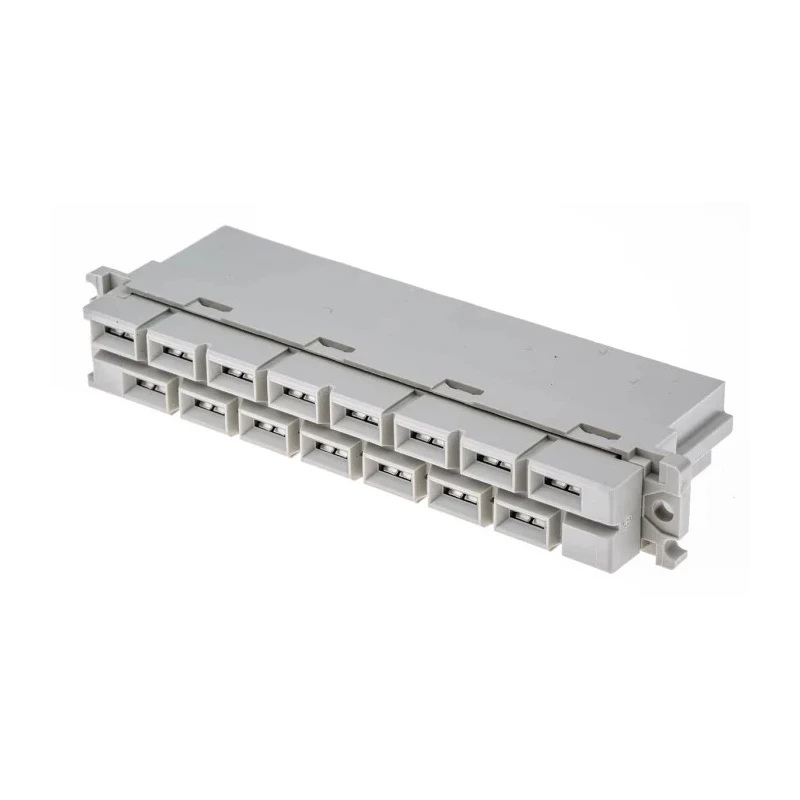

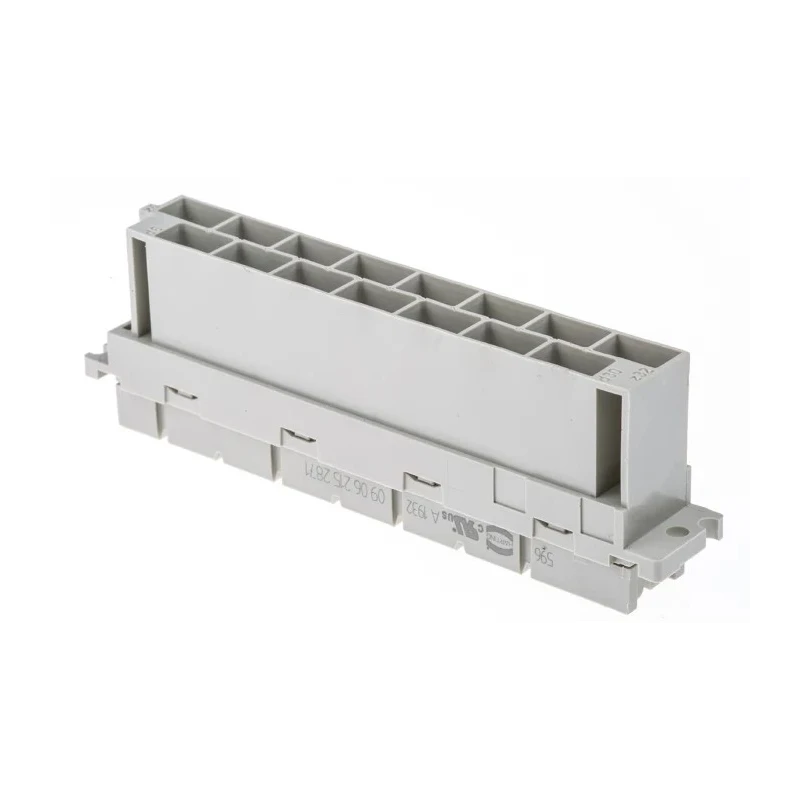

HARTING DIN 41612 15 Way 10.16 mm Pitch, Type H15, Faston Termination, Class C1, 2 Row Female Straight Connector 09062152871

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 15 Way 10.16 mm Pitch, Type H15, Faston Termination, Class C1, 2 Row Female Straight Connector 09062152871

Name: HARTING DIN 41612 15 Way 10.16 mm Pitch, Type H15, Faston Termination, Class C1, 2 Row Female Straight Connector 09062152871
Brand: HARTING
SKU: 110866
Price: 19.05 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Orientation	Straight
Current	15A
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Faston
Maximum Operating Temperature	125°C
Sub Type	H15
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	10.16mm
Contact Plating	Silver
Number of Contacts	15
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	8mΩ
Row Loading	D/Z

Key Features

Rated for 15 amperes current ensuring efficient power distribution.
Silver-plated copper alloy contacts reduce contact resistance and enhance conductivity.
Polybutylene terephthalate housing withstands temperatures up to 125°C.
Suitable for industrial automation and control panel wiring harnesses.
Operates reliably across a temperature range from −55°C to 125°C.
Faston termination enables quick and tool-friendly installation.
Designed for straight orientation ensuring inline mating with rack and panel systems.
Low maximum contact resistance of 8 milliohms minimises voltage drop.

Product Description

HARTING 09062152871 DIN 41612 Connector is a high-quality, industrial-grade female connector designed for use in rack and panel interconnections where reliable signal and power transfer is critical. Featuring 15 contacts arranged in two rows with a 10.16 mm pitch, this connector supports current ratings up to 15 amperes, making it suitable for demanding automation and electrical control systems.

The connector's body is constructed from durable polybutylene terephthalate housing that tolerates harsh environments and operating temperatures reaching 125°C. Silver-plated copper alloy contacts provide excellent electrical conductivity and corrosion resistance, thereby ensuring stable and long-lasting performance in electrically demanding settings.

This model uses Faston termination, which facilitates quick field wiring and replacement by enabling tool-friendly spade connections that do not require soldering. Its straight orientation supports inline mounting, ideal for integration into standard rack and panel setups in industrial automation, manufacturing control cabinets, and electrical assembly applications.

Key industrial applications include use in control cabinets, wiring harnesses requiring robust and reliable connections, signal transmission in automation equipment, and power links in electrical assemblies. It operates effectively in ambient temperatures ranging from −55°C to 125°C, accommodating significant thermal variation often present in industrial environments.

15 contacts in two parallel rows provide versatile wiring options with D/Z row loading. Robust PBT housing material ensures mechanical and thermal stability. Silver-plated copper alloy contacts minimize resistance and improve wear resistance.

Faston termination type supports rapid, tool-friendly installation and maintenance. Low contact resistance of 8 milliohms reduces voltage drop and heat generation. Suitable for rack and panel connections in industrial control and automation systems.

Designed for industrial and manufacturing electronics use cases requiring reliable interconnects.

Set your industrial connectivity standards with the HARTING 09062152871 DIN 41612 Connector, available now. Explore more products in the Electronics Components category on EnvMart for your automation and control system needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is rated for a current of 15 amperes, ensuring efficient power distribution in various applications.

It operates reliably across a temperature range from -55°C to 125°C, accommodating significant thermal variations in industrial environments.

The housing is made from polybutylene terephthalate, and the contacts are made from silver-plated copper alloy, which enhances conductivity and reduces contact resistance.

This model features 15 contacts arranged in two rows, with a pitch of 10.16 mm.

It utilizes Faston termination, which allows for quick and tool-friendly installation without the need for soldering.

The maximum contact resistance is 8 milliohms, which helps minimize voltage drop and heat generation during operation.

It is suitable for industrial automation, control panel wiring harnesses, and signal transmission in automation equipment.

This connector is designed for straight orientation, allowing for inline mating with rack and panel systems.

The connector features D/Z row loading, providing versatile wiring options for different configurations.

The country of origin for this connector is Germany.

The contacts are silver-plated to enhance conductivity and corrosion resistance, ensuring stable performance.

The 10.16 mm pitch allows for standard spacing between contacts, facilitating compatibility with various rack and panel systems.
