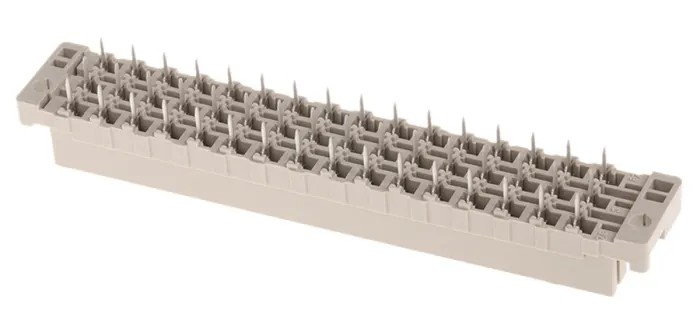

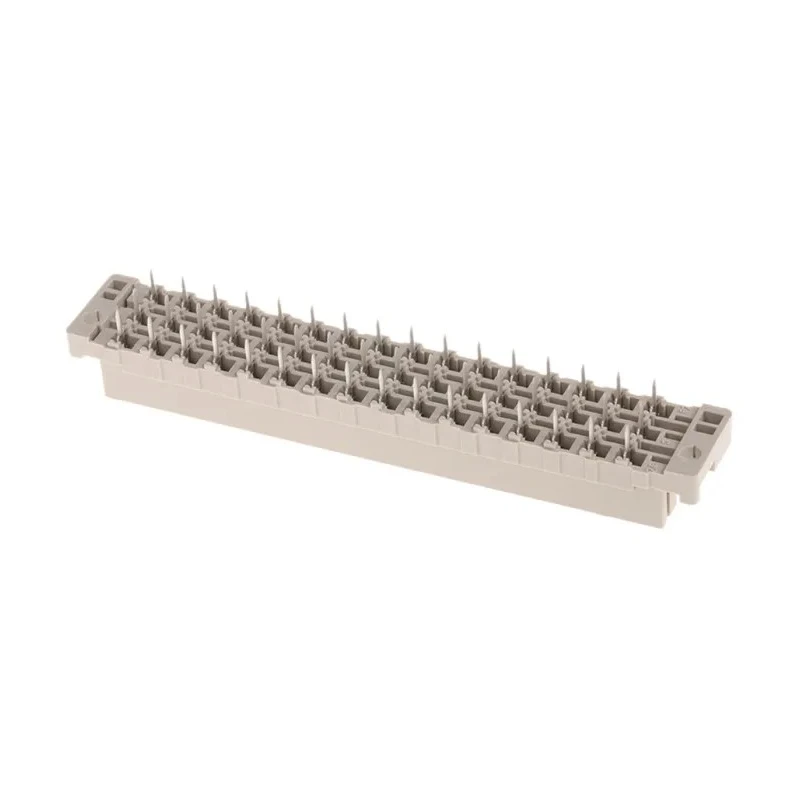

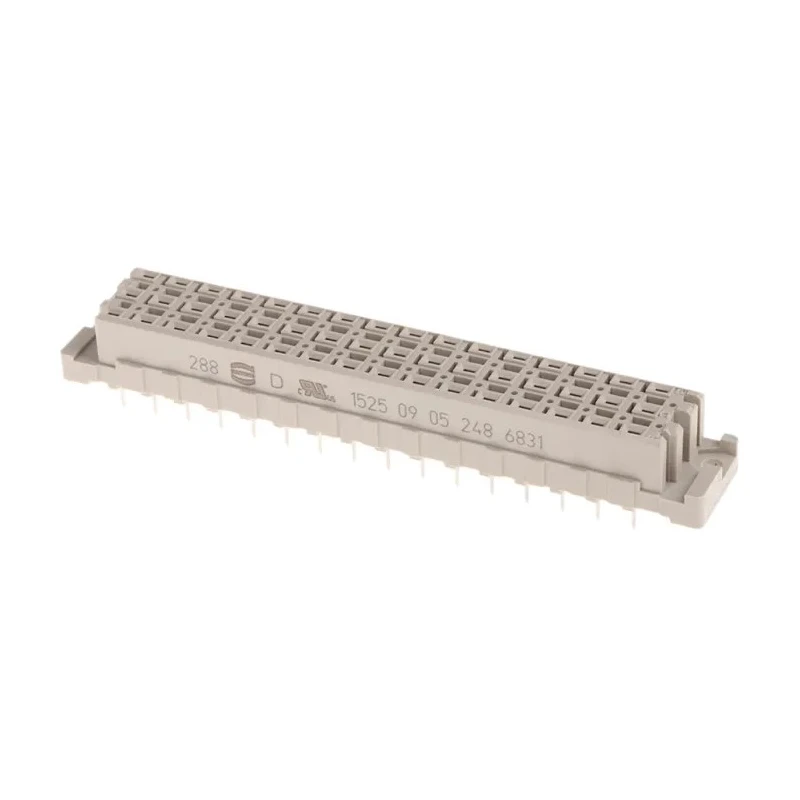

HARTING DIN 41612 Connector 48 Contacts 5.08mm Pitch 3 Row Female Straight Solder Termination Class C2 09052486831
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 6A |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 09 05 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 5.08mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 48 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 15mΩ |
| Row Loading | A/C/E |
| Harting 48 Way 5.08mm Pitch, 3 Row, Straight DIN 41612 Connector, SocketBrand | HARTING |
Key Features
- Features 48 contacts arranged in 3 rows for versatile electronic applications.
- Designed with a 5.08 mm pitch and straight orientation for compatibility and ease of use.
- Solder termination ensures strong and reliable electrical connections.
- Contacts plated with gold over nickel to enhance conductivity and reduce corrosion.
- Constructed with durable thermoplastic housing material for long-lasting performance.
- Rated current of up to 6A for high-power applications.
- Operates reliably within a temperature range from -55°C to 125°C.
- Maximum contact resistance rated at 15 milliohms to ensure excellent electrical performance.
Product Description
HARTING 09052486831 DIN 41612 Connector is a high-quality female connector featuring 48 contacts in three rows with a 5.08 mm pitch, designed to meet industrial and electronic requirements. This straight orientation connector belongs to the Class C2 solder termination type, providing secure and stable electrical connection suitable for demanding applications.
Constructed with copper alloy contacts plated with gold over nickel, the connector combines excellent conductivity with corrosion resistance. The robust thermoplastic housing ensures durability under various environmental conditions. This connector supports a current rating of 6 amperes and maintains a maximum contact resistance of 15 milliohms, guaranteeing dependable signal transmission.
Operating reliably within a wide temperature range from -55°C to +125°C, it is suitable for harsh industrial environments. Its 3-row, 48-contact design fits automation control systems, telecommunication equipment, modular power distribution setups, and diagnostic or testing instruments, making it a versatile choice for multiple industrial electronics applications.
The solder termination type further ensures a robust mechanical and electrical bond for easy integration onto PCBs or wiring assemblies. Features 48 contacts arranged in 3 rows for versatile electronic applications. Designed with a 5.08 mm pitch and straight orientation for compatibility and ease of use.
Solder termination ensures strong and reliable electrical connections. Contacts plated with gold over nickel to enhance conductivity and reduce corrosion. Constructed with durable thermoplastic housing material for long-lasting performance.
Rated current of up to 6A for high-power applications. Operates reliably within a temperature range from -55°C to 125°C. Maximum contact resistance rated at 15 milliohms to ensure excellent electrical performance. Ideal for use in automation control systems, telecommunications, power distribution, and electronic test equipment.
Explore more high-quality connectors and related components suitable for your industrial and electronic needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a rated current of up to 6A, making it suitable for high-power applications.
It operates reliably within a temperature range from -55°C to +125°C, suitable for harsh industrial environments.
The connector features 48 contacts arranged in three rows, designed for versatile electronic applications.
It uses a solder termination type, ensuring a strong and reliable electrical connection for easy integration onto PCBs or wiring assemblies.
The connector is constructed with a thermoplastic housing and copper alloy contacts plated with gold over nickel, enhancing conductivity and corrosion resistance.
The maximum contact resistance is rated at 15 milliohms, ensuring excellent electrical performance.
The contacts are arranged with a pitch of 5.08 mm, facilitating compatibility and ease of use.
This model features a straight orientation, designed for straightforward installation and use.
It is suitable for applications in automation control systems, telecommunications, modular power distribution setups, and diagnostic or testing instruments.
The country of origin for this connector is Romania.
This connector belongs to the 09 05 series, which is part of the DIN 41612 standard.
The connector has a female contact gender, making it compatible with corresponding male connectors.
