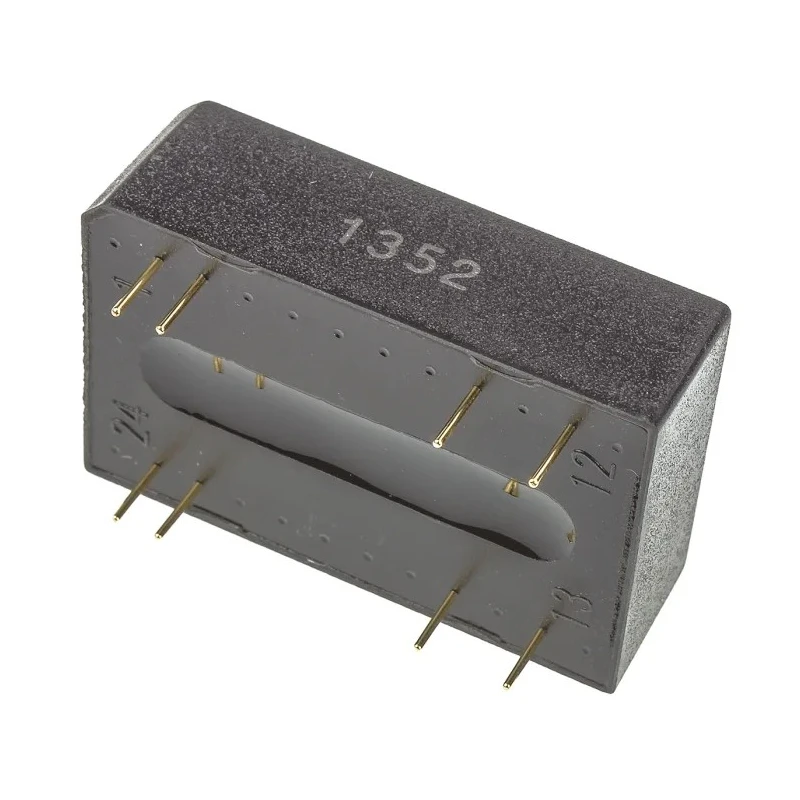

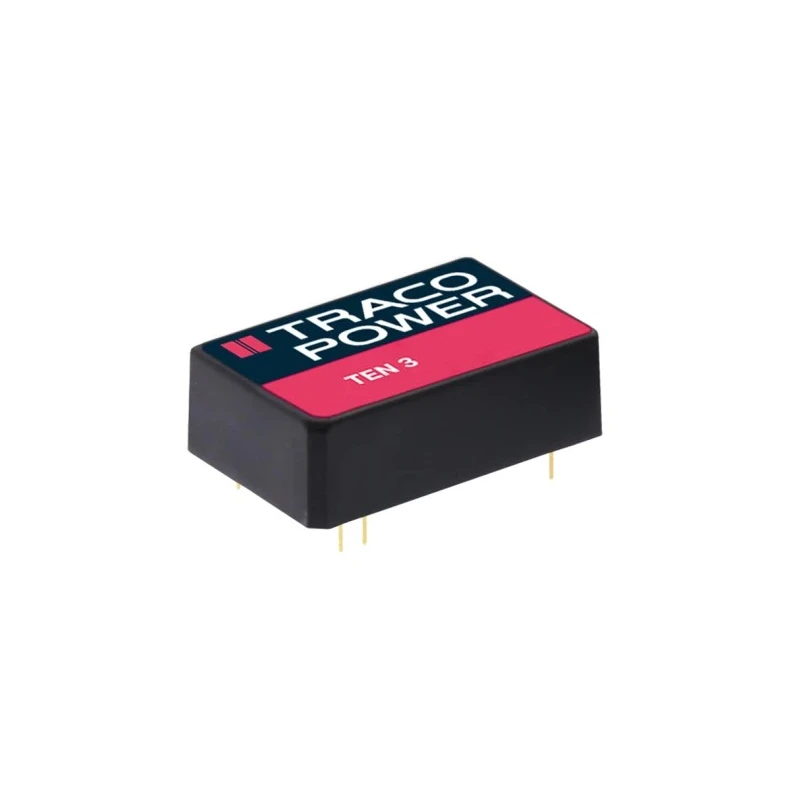

TRACOPOWER TEN 3 Series Isolated Regulated DC/DC Converter 5V, -5V, 250mA Output, 2.5W, PCB Mount, 18-36V Input TEN 3-2421
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 3 DC/DC Converter, 5V, -5 V/ 250 mA |
| Brand | TRACOPOWER |
| Efficiency | 79% |
| Length | 32mm |
| Model | TEN 3-2421 |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | PCB |
| Series | TEN 3 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 2 |
| Maximum Output Power | 2.5W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 5, -5V |
| Output Current 1 | 250mA |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Wide 2 | 1 input range |
Key Features
- Converter provides isolated 5V and -5V dual outputs at 250mA.
- Maximum output power is 2.5 watts for small power needs.
- Compact 24-pin DIP-24 surface mount package designed for PCB mount.
- Wide input voltage range from 18V to 36V DC supports multiple sources.
- High efficiency of 79% reduces thermal losses and improves reliability.
- Operates over a wide temperature range from -40°C to 85°C.
- Electrical isolation of 1.5 kV DC enhances safety and noise immunity.
- Input filtering meets EN 55022 Class A and FCC level A standards.
Product Description
TRACOPOWER TEN 3-2421 DC/DC Converter is a high-performance, isolated, regulated power supply component designed for industrial and communication applications. Operating with dual outputs of 5V and -5V at 250mA, it delivers a maximum output power rating of 2.5 watts. Its PCB mount 24-pin DIP-24 surface mount package facilitates easy integration into printed circuit boards.
This DC/DC converter supports a wide input voltage range from 18V to 36V DC, accommodating various power supply conditions. It is engineered for robustness with a wide operating temperature range from -40°C to 85°C and an isolation voltage capability of 1.5kV DC, ensuring safety and reliability in demanding electronic environments.
The converter's efficiency of 79% enables low energy loss, helping maintain thermal performance on the PCB. Its input filtering meets stringent EMC standards such as EN 55022 Class A and FCC level A without the need for additional external components, simplifying system design.
Compact in size with dimensions of 32mm length, 20.3mm width, and 10.2mm depth, it occupies minimal PCB space. The TEN 3 series has a high MTBF of 700,000 hours, reflecting its high reliability and suitability for long-term industrial use.
The converter features a wide 2:1 input voltage ratio supporting flexible power sources. Its full SMD design improves durability and electronic performance. It provides short circuit protection to safeguard the device and system.
Temperature range from -40°C to 85°C supports operation in harsh environments. Electrical isolation of 1500 VDC protects against voltage spikes and noise.
The TRACOPOWER TEN 3-2421 DC/DC Converter is ideal for use in industrial control systems, telecommunications equipment, and other applications requiring reliable isolated DC power conversion. EnvMart offers this high-quality power module with comprehensive documentation and industry certifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual output voltages of 5V and -5V at a maximum output current of 250mA.
The maximum output power is 2.5 watts, suitable for small power needs.
It supports a wide input voltage range from 18V to 36V DC, accommodating various power supply conditions.
The efficiency of the TEN 3-2421 is rated at 79%, which helps to reduce thermal losses.
This unit measures 32mm in length, 20.3mm in width, and 10.2mm in depth, making it compact for PCB mounting.
It features an electrical isolation of 1.5 kV DC, enhancing safety and noise immunity.
The operating temperature range is from -40°C to 85°C, allowing it to function in harsh environments.
This converter is designed for PCB mounting with a 24-pin DIP-24 surface mount package.
It is ideal for use in industrial control systems, telecommunications equipment, and other applications requiring reliable isolated DC power conversion.
The MTBF for the TEN 3-2421 is rated at 700,000 hours, indicating high reliability for long-term use.
The input filtering meets EN 55022 Class A and FCC level A standards, ensuring compliance without additional components.
Yes, this unit includes short circuit protection to safeguard both the device and the connected system.
