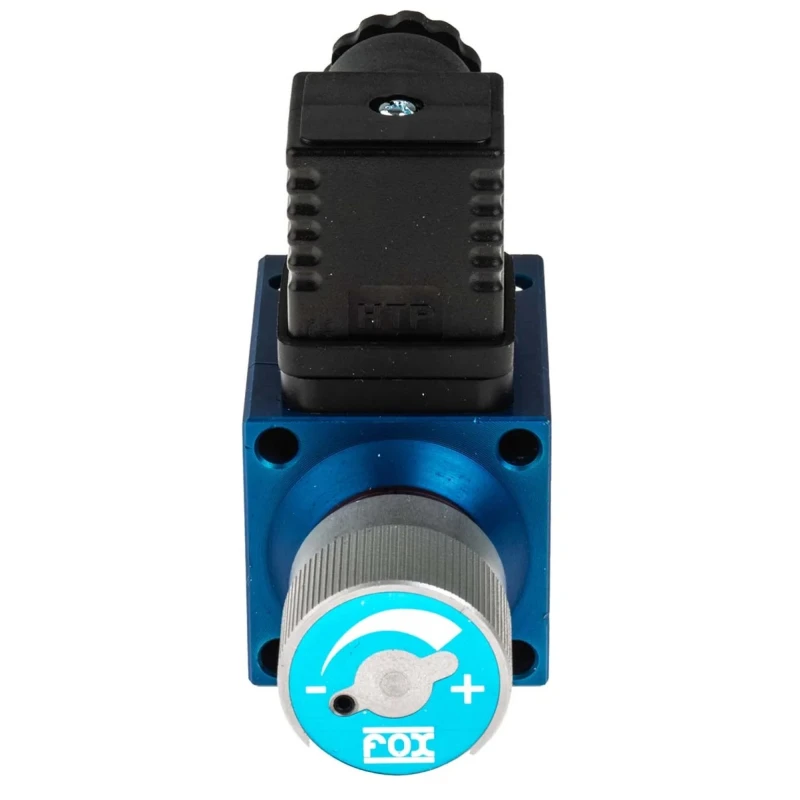

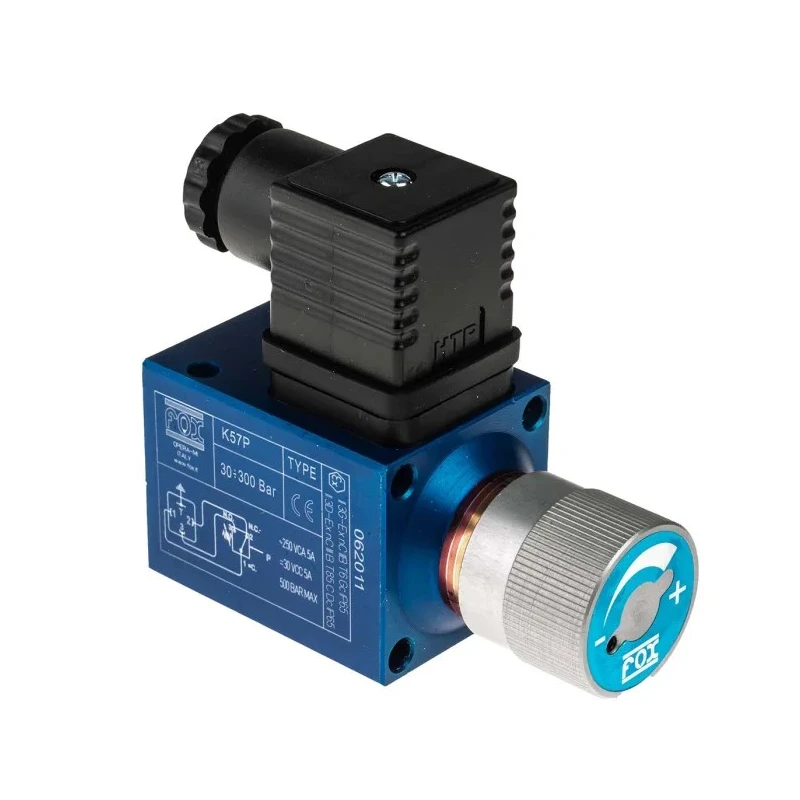

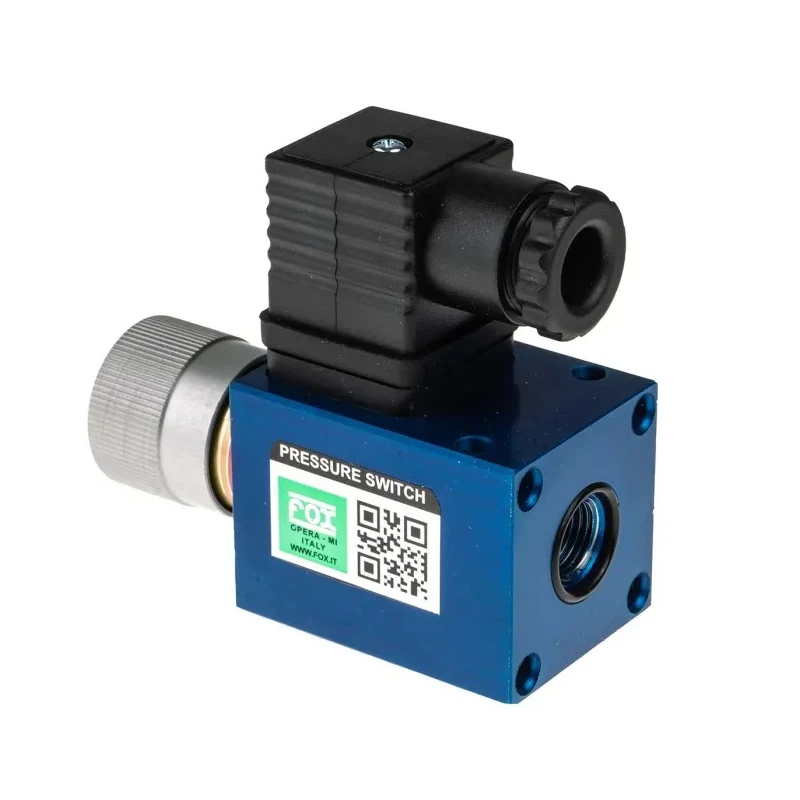

RS PRO Adjustable Pressure Switch NC 30 bar to 300 bar, 250V AC, Oil Suitable, IP65 Rated 297-0018

RS PRO 297-0018 is an adjustable pressure switch designed for precise pressure detection in hydraulic and pneumatic systems incorporating oil as the media. It supports operating voltages up to 250V AC and features a pressure detection range from 30 to 300 bar. Constructed from anodised aluminium, this switch offers excellent durability and corrosion resistance, suitable for a variety of industrial environments. The device includes mechanical stops to protect its spring and microswitch from damage due to over-pressurization, enhancing operational longevity.

The switch supports both normally closed (NC) and normally open (NO) contact configurations, enabling flexible electrical signaling once the set pressure is reached. Its compact design allows mounting in any position, providing versatility for installation in confined or complex assemblies. Rated IP65, the enclosure ensures reliable protection against dust and water ingress, suitable for aggressive industrial conditions.

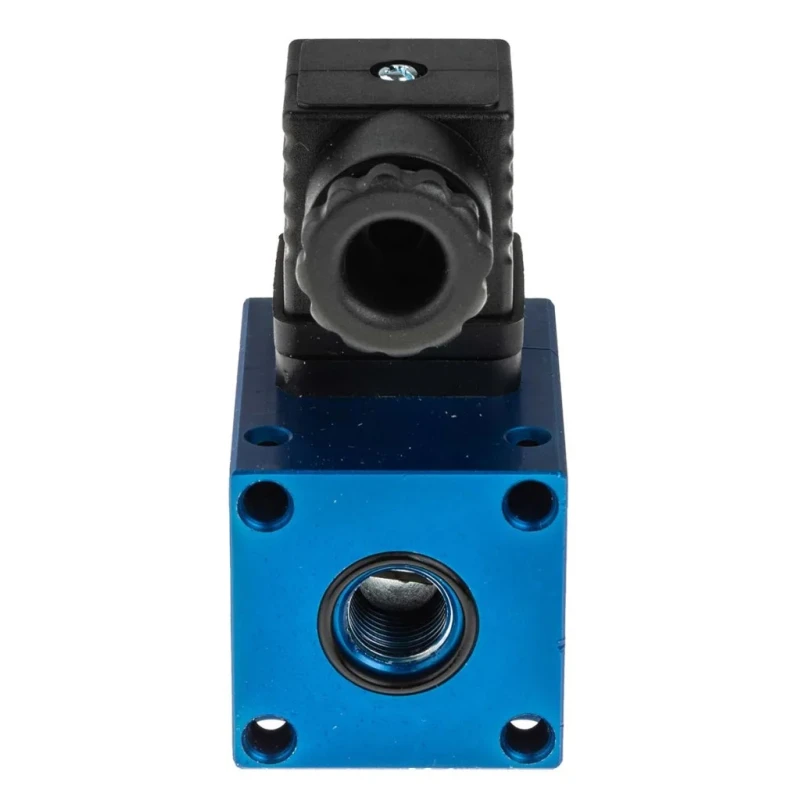

Connection is achieved via a 1/4 inch BSP female G parallel thread port, facilitating easy integration into fluid power systems. It has a long mechanical life of up to 1,000,000 cycles at 70 bar pressure, with a switching frequency of 120 cycles per minute and a maximum load rating of 0.5 A at 250 VAC.

Typical applications include use in pumps, compressed air systems, machine tools, process control equipment, sensors, hydraulics, and pneumatics valves and switches. Compliance with DIN and RoHS standards provides assurance of quality and environmental safety.

Constructed with anodised aluminium for durability and corrosion resistance. Adjustable pressure range from 30 bar to 300 bar for versatile applications. Supports NC and NO contact configurations for flexible switching outputs.

Wide operating temperature range of -20°C to 80°C for varied environments. IP65 rated housing ensures protection against dust and water ingress. 1/4 inch BSP female G parallel thread for secure and standard fluid connections.

Mechanical stops prevent damage from over-pressurization. Long mechanical life, supporting 1 million cycles at 70 bar pressure. Suitable for hydraulic and pneumatic industrial applications. Complies with DIN and RoHS standards for quality and safety.

RS PRO products offer reliable and precise solutions designed to meet demanding industrial requirements. Discover more RS PRO Pressure Switches and pneumatic components in our comprehensive industrial tools catalog for robust system integration and maintenance.
