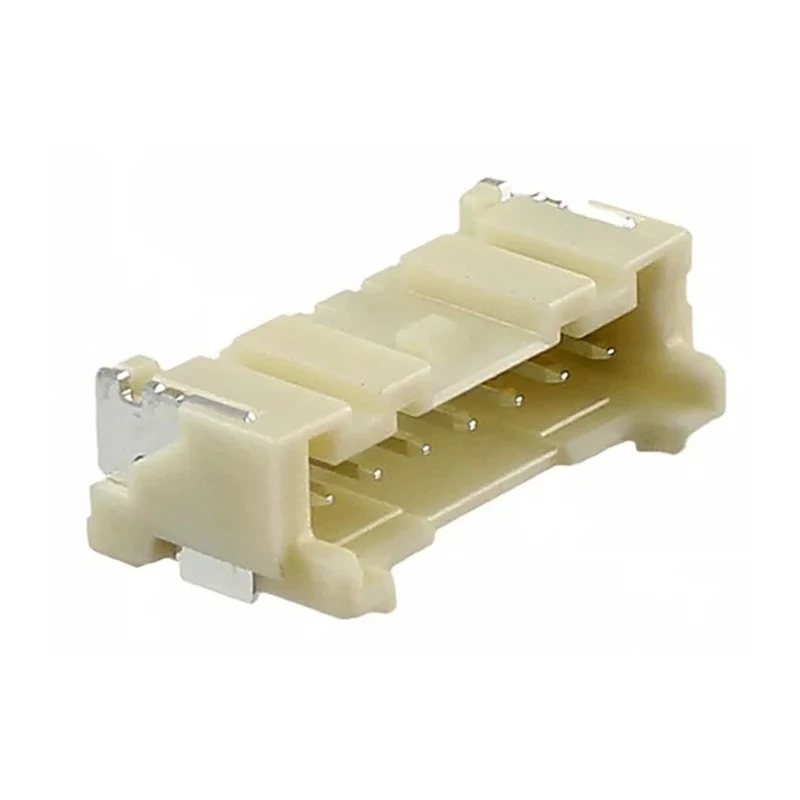

JST PA Series Right Angle Surface PCB Header 7 Contact, 2 mm Pitch, 1 Row, Shrouded SM07B-PASS-TB (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PA Series Right Angle Surface PCB Header 7 Contact, 2 mm Pitch, 1 Row, Shrouded SM07B-PASS-TB (LF)(SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	Malaysia
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	SM07B-PASS-TB (LF)(SN)
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	PA
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	7
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features a locking device that secures connection and prevents disconnection during assembly or vibration.
Insertion guides ensure accurate and easy PCB insertion.
Polarisation bosses provide alignment accuracy on the PCB.
Flanged press pins prevent accidental removal after installation.
Designed for wire-to-board connections with a surface mount type.
Operates reliably within -25°C to 85°C temperature range.
Supports a maximum current of 3A and voltage of 250V.
Constructed with polyamide housing and copper alloy contact material, plated with tin.

Product Description

JST SM07B-PASS-TB (LF)(SN) is a PA Series right angle surface PCB header designed for demanding electronic component assembly. It features 7 contacts arranged in a single row with a 2 mm pitch, optimized for surface mounting onto PCBs. This shrouded header ensures protection of contacts and secure mechanical retention.

The product incorporates a locking ramp device which offers a reliable and vibration-resistant connection to mating connectors, critical in industrial and manufacturing environments. Insertion guides and polarisation bosses on the housing facilitate quick, accurate, and error-free installation during PCB assembly.

Flanged press pins are engineered to stay firmly in place during distorted unmating, thus enhancing durability and reliability. The polyamide housing provides robust insulation and mechanical strength, while copper alloy contacts plated with tin deliver consistent electrical performance at currents up to 3A and voltages up to 250V. The operating temperature range from -25°C to 85°C makes it suitable for a wide array of industrial and commercial applications.

This PCB Header is particularly ideal for wire-to-board connection systems requiring secure engagement, low insertion force, and polarised alignment. Applications span across electronic manufacturing, automation equipment, instrumentation, consumer electronics, and other industrial electronics industries.

Locking device for secure connection and vibration resistance. Insertion guides for easy and accurate positioning. Polarisation bosses enable precise mating. Flanged press pins protect against accidental removal. Surface mount wire-to-board connector system.

Polyamide housing for high durability and insulation. Copper alloy contacts with tin plating for excellent conductivity. Supports 3A current and 250V voltage ratings. Operating temperature from -25°C to 85°C. Manufactured in Malaysia to ensure quality standards.

This JST PA Series PCB Header is an essential component in electronic assemblies where durable, secure, and precise PCB connections are required. EnvMart offers this product as part of its electronic components category, catering to industrial and commercial needs.
