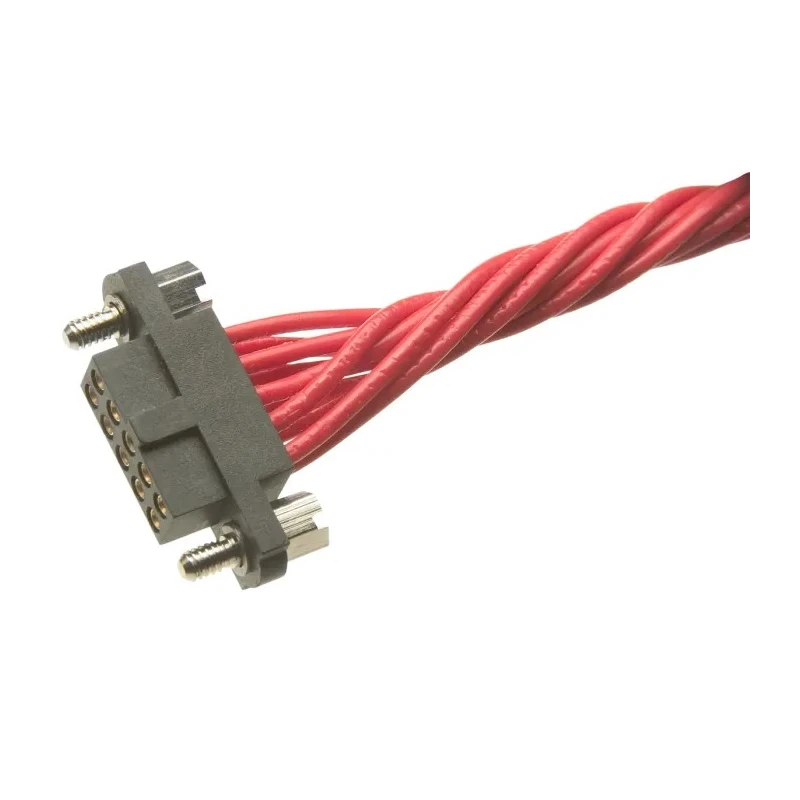

HARWIN Datamate J-Tek Series Straight Cable PCB Socket, 12-Contact, 2 Row, 2 mm Pitch Crimp M80-4601242

HARWIN M80-4601242 is a Datamate J-Tek Series straight cable PCB socket connector featuring 12 contacts in two rows with a compact 2 mm pitch crimp termination. This connector is engineered for high reliability in demanding environments such as military, aerospace, and high-end industrial applications.

The connector utilizes beryllium copper alloy contacts with gold plating and a 4-finger design to guarantee secure connections and exceptional resistance to vibration, shock, and extreme temperature ranges from -55°C to 125°C. The polyphenylene sulphide housing is fully shrouded to protect the contacts and includes polarization features to prevent incorrect mating.

Each kit consists of the housing fitted with jackscrews and loose rear-insertable crimp contacts, catering for wire gauges appropriate to the connector part number. Straight orientation and cable mount type with a board-to-board connector system make it versatile across various applications.

This cable socket connector supports currents up to 12 A and voltages up to 800 V, meeting stringent safety and performance standards including BS9525-F0033, MIL C 55302, and CEC 75101-008 approvals. Typical use cases span aerospace, aeronautics, military, telecommunications, medical devices, handheld and industrial equipment, robotics, and oil and gas sectors.

The robust design and durability of HARWIN Datamate J-Tek connectors ensure they withstand numerous mating cycles without degradation, making them ideal for mission-critical and harsh environment applications.

The product is manufactured in the United Kingdom, ensuring adherence to high manufacturing quality and reliability standards. Complete cable socket connector kit with jackscrews fitted and loose crimp contacts rear insertable.

Uses a high-reliability beryllium copper alloy contact with gold plating for excellent conductivity. Compact 2 mm pitch design suitable for harsh environments with high vibration and shock resistance. Rated for 12 A current and 800 V voltage with operating temperature range from -55°C to 125°C.

Housing made of polyphenylene sulphide provides durability and polarization to prevent mis-mating. Connector orientation is straight with cable mount type and board-to-board connector system. Suitable for aerospace, military, telecommunications, robotics, medical, and industrial equipment applications.
