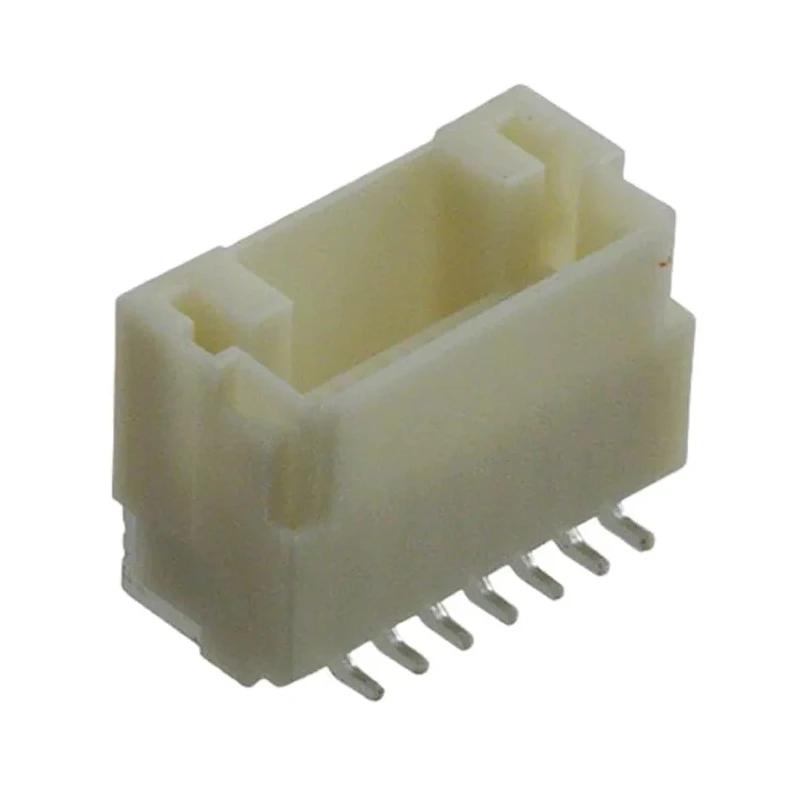

JST NSH Series Straight Surface PCB Header 7 Contact 1 mm Pitch 1 Row Shrouded BM07B-NSHSS-TBT(LF)(SN)

JST BM07B-NSHSS-TBT(LF)(SN) NSH Series Straight Surface PCB Header is a precision engineered wire-to-board connector designed for surface mount technology applications. It features 7 contacts arranged in a single row with a 1 mm pitch, optimized for space-saving and efficient PCB layouts.

The shrouded design provides protection and secure mating, enhanced by a latch locking mechanism that gives an audible click to confirm engagement. Contacts are made from copper alloy with tin plating, ensuring excellent conductivity and corrosion resistance. This connector system is ideal for low current (1 A) and low voltage (50 V) applications.

Operating over a temperature range from -25°C to 85°C, it performs reliably in industrial, electronics manufacturing, and laboratory environments. The solder termination type supports SMT assembly processes, providing stable electrical and mechanical connections.

These connectors are widely used in electronic components manufacturing, power and signal distribution on PCBs, and various commercial and industrial electronics enclosures. The NSH series also includes mating crimp socket housings that accept compatible crimp contacts.

Produced to high Japanese manufacturing standards, this product ensures durability and performance stability. Its compact dimensions and reliable connections make it suitable for complex electronic assemblies requiring robust board-to-wire interfacing.

The connector system is wire-to-board with a shrouded design ensuring secure connections. Features a single row of 7 male contacts with 1 mm pitch for compact circuit layouts. Constructed with copper alloy contacts plated in tin for corrosion resistance.

Operation temperature range extends from -25°C to 85°C, suitable for various environmental conditions. Designed for solder termination with a low insertion force latch locking mechanism. The connector supports a maximum voltage of 50 V and current rating of 1 A.

Manufactured in Japan maintaining high production standards. Explore our comprehensive selection of PCB Headers including JST NSH series connectors at EnvMart for advanced electronic design and manufacturing needs.
