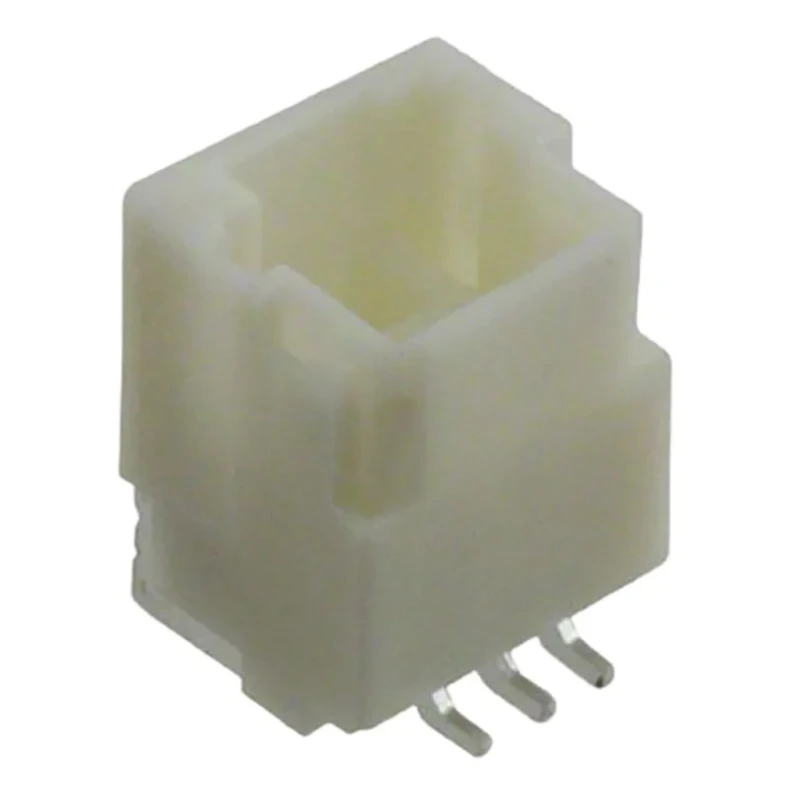

JST NSH Series Straight Surface PCB Header 3 Contacts 1 mm Pitch 1 Row Shrouded BM03B-NSHSS-TBT(LF)(SN)

JST BM03B-NSHSS-TBT(LF)(SN) Straight Surface PCB Header is a precision-engineered wire-to-board connector designed for reliable electrical connections in electronic assemblies. Featuring a 1 mm pitch and a single row of 3 contacts, this shrouded header ensures secure mating while optimizing space on printed circuit boards.

Constructed with copper alloy contacts and tin plating, the header provides excellent electrical conductivity and resistance to corrosion, making it suitable for various industrial, commercial, and electronic manufacturing applications. The unit operates at a maximum voltage of 50 volts and current of 1 ampere, meeting safety and performance requirements for low-power electronic circuits.

The shrouded design offers added protection by preventing accidental contact and improving connector durability. Additionally, the latch locking mechanism delivers an audible click, confirming positive engagement between the header and corresponding socket.

Mounting is accomplished via surface mount technology (SMT), and the solder termination type facilitates strong mechanical and electrical connections to PCBs. The product supports an operating temperature range from -25°C to 85°C, accommodating diverse environments that include laboratory equipment, consumer electronics, industrial control systems, and telecommunications devices.

Features a shrouded connector for enhanced safety and reliable mating. Constructed with copper alloy contacts plated with tin for excellent conductivity and corrosion resistance. Operates safely within a voltage rating of 50V and current rating of 1A.

Designed with a latch locking mechanism that provides audible click confirmation during connection. Supports surface mount technology for PCB mounting and solder termination. Suitable for operating temperatures ranging from -25°C to 85°C.

Compact 1.0 mm pitch and single-row configuration ideal for space-saving PCB designs. Manufactured in Japan ensuring high-quality standards and reliability.

This JST surface PCB Header is ideal for use in electronics manufacturing, industrial automation, telecommunications equipment, and embedded systems requiring compact and reliable wire-to-board connections. For additional component options and compatible connectors, explore the complete JST NSH series range available at EnvMart.
