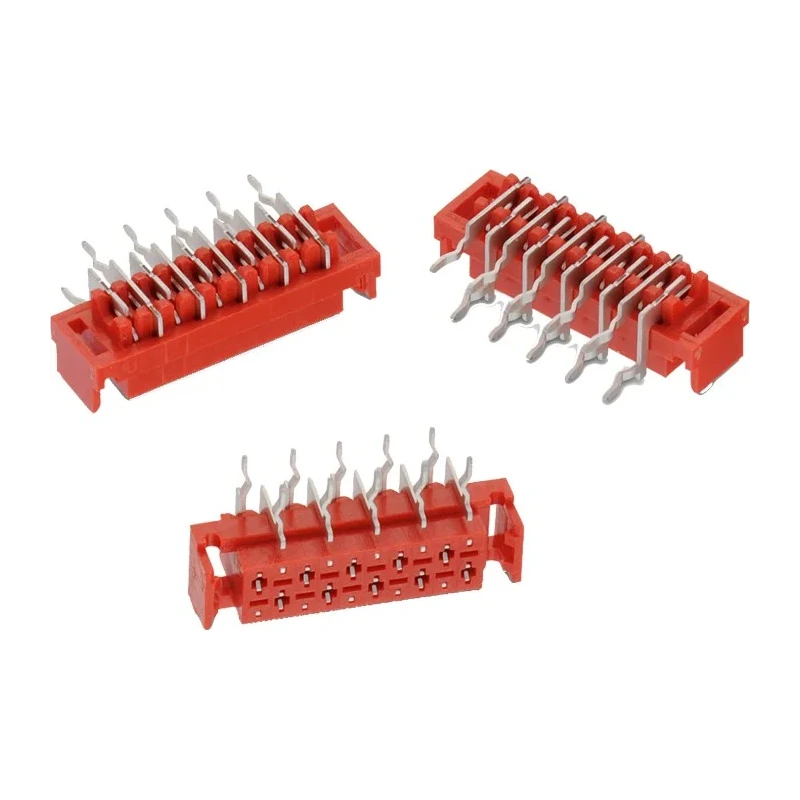

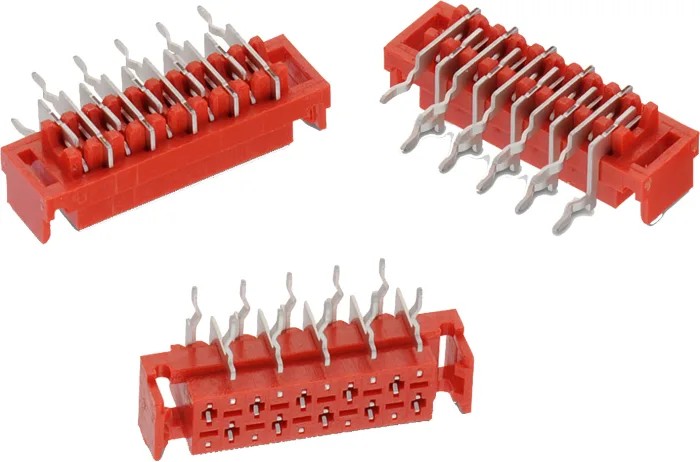

Wurth Elektronik WR-MM Series Right Angle Through Hole PCB Header, 22 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 690368192272
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Current | 1.5A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | WR-MM |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS, UL E323964 |
| Contact Plating | Matt Tin over Nickel |
| Number of Contacts | 22 |
| Contact Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
Key Features
- Features a pitch of 2.54 mm for precise PCB mounting.
- Constructed with polybutylene terephthalate housing for durability.
- Shrouded design ensures secure and reliable connections.
- Rated for 1.5A current and voltage up to 250V.
- Suitable for operating temperatures ranging from -40°C to 105°C.
- Mount type is through hole for stable PCB attachment.
- Contact material is phosphor bronze with matt tin over nickel plating.
- Includes 2 rows with female contact gender and 22 contacts total.
Product Description
Wurth Elektronik 690368192272 WR-MM Series right angle through hole PCB header is designed for robust electronic component interconnection in PCB assemblies. Featuring 22 contacts arranged in two rows with a pitch of 2.54 mm, this connector ensures precise and reliable wire-to-board connectivity.
The housing is made from high-quality polybutylene terephthalate, offering excellent durability and resistance to wear and environmental factors. Its shrouded construction provides enhanced mechanical protection and prevents accidental disconnections.
Engineered for industrial applications, it supports a current rating of 1.5A and voltage capacity of up to 250V. The connector operates reliably within a wide temperature range from -40°C to 105°C, making it suitable for varied operating environments.
Contact components are made from phosphor bronze with matt tin over nickel plating, providing excellent conductivity and corrosion resistance. The connector uses a solder termination type and through-hole mounting technique for secure PCB attachment.
Certified with UL E323964 and RoHS compliant, this PCB header meets stringent quality and safety standards necessary in electronic manufacturing, laboratory equipment, and industrial automation.
Features a pitch of 2.54 mm for precise PCB mounting. Constructed with polybutylene terephthalate housing for durability. Shrouded design ensures secure and reliable connections. Rated for 1.5A current and voltage up to 250V.
Suitable for operating temperatures ranging from -40°C to 105°C. Mount type is through hole for stable PCB attachment. Contact material is phosphor bronze with matt tin over nickel plating. Includes 2 rows with female contact gender and 22 contacts total.
UL E323964 and RoHS compliant for industrial quality assurance.
This Wurth Elektronik PCB header is ideal for use in electronic component manufacturing, power & connectors assemblies, and various industrial applications requiring wire-to-board connectors. Enhance your designs with a reliable component that delivers consistent performance and long-term durability.
Explore more Wurth Elektronik products and PCB Headers at EnvMart for your electronic component sourcing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 1.5A.
It has a voltage capacity of up to 250V.
The contacts are arranged with a pitch of 2.54 mm.
The housing is made from polybutylene terephthalate, and the contacts are made from phosphor bronze with matt tin over nickel plating.
It operates reliably within a temperature range from -40°C to 105°C.
This unit includes a total of 22 contacts.
It uses a solder termination type.
Yes, it is certified with UL E323964 and is RoHS compliant.
The mounting type is through hole, ensuring stable PCB attachment.
This model features a right angle orientation.
The contacts are of female gender.
It is suitable for use in electronic component manufacturing, power and connector assemblies, and various industrial applications requiring wire-to-board connectors.
