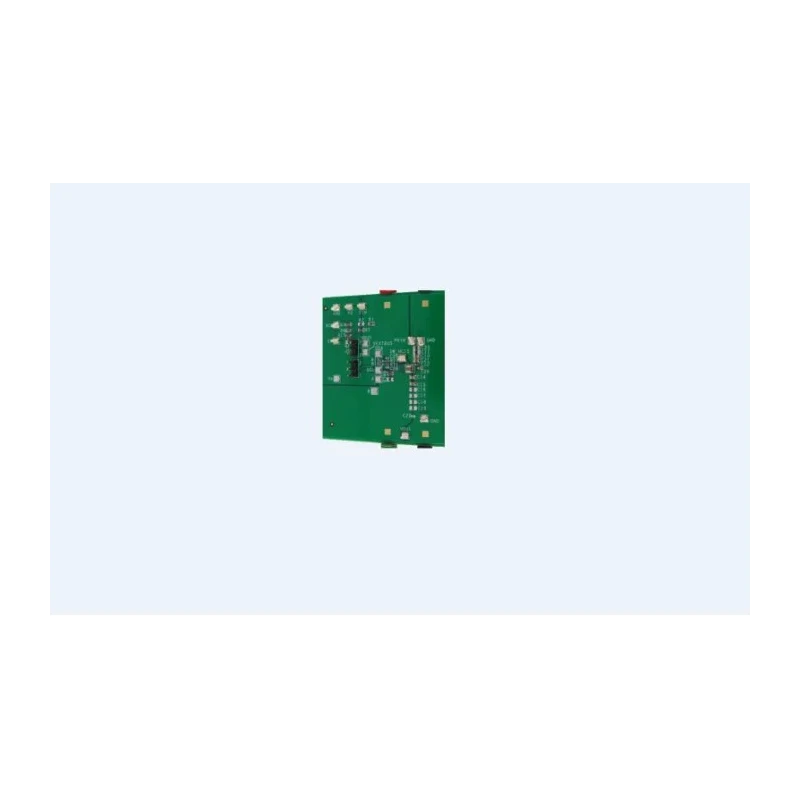

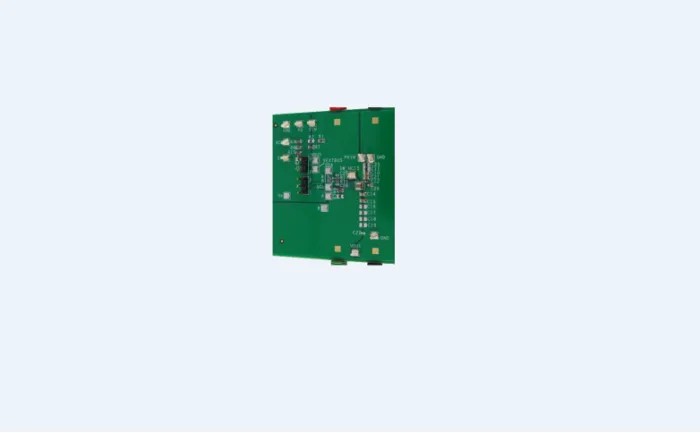

TDK DC/DC Converter 3.3V dc 4A 16V dc Input Surface Mount FS1404
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TDK |
| Length | 3.3mm |
| Model | FS1404 |
| Depth | 1.5mm |
| Width | 3.3mm |
| Mount Type | Surface |
| Series | FS1404 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Ripple and Noise | 20mV |
| Maximum Input Voltage | 16V dc |
| Standards/Approvals | REACH, RoHS 6 |
| Minimum Input Voltage | 4.5V dc |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 4A |
| Output Voltage Adjustment Range | 3.3 V dc |
Key Features
- Compact dimensions of 3.3mm x 3.3mm x 1.5mm suitable for automated surface-mount assembly.
- Wide input voltage range from 4.5V dc minimum to 16V dc maximum supporting robust operation.
- Low ripple and noise with 20mV typical output for clean power supply.
- Integrated PWM controller with MOSFETs and onboard components for efficient regulation.
- Operating temperature range from −40°C to 125°C ensures reliability in harsh environments.
- Programmable via I2C serial bus for flexible control and monitoring.
- No external compensation required facilitating easy integration.
- RoHS and REACH compliant, meeting environmental standards.
Product Description
TDK FS1404 DC/DC Converter is a highly integrated micro-point-of-load voltage regulator designed for industrial and electronic applications requiring compact and efficient power conversion. Featuring a 3.3V dc output at 4A load capacity, this converter accepts input voltages from 4.5V dc up to 16V dc, making it suitable for a wide range of input sources.
The device's surface mount package, measuring just 3.3mm x 3.3mm x 1.5mm, allows seamless incorporation into automated PCB assembly processes, optimizing space utilization. Its integrated on-chip PWM controller and MOSFETs, combined with embedded inductors and capacitors, deliver precise and efficient voltage regulation with minimal external components.
Designed to operate reliably in temperatures extending from −40°C up to 125°C, the FS1404 is ideal for demanding industrial, telecommunications, computing, and embedded system environments.
This converter supports a programmable I2C interface enabling flexible operation and system monitoring without additional circuitry. Additionally, no external compensation is needed, which simplifies the design and reduces development time.
Electrical characteristics include a low ripple and noise level of 20mV, preset output voltages of 2.5V or 3.3V dc, and an output current rating up to 4A continuous load. These features ensure stable and clean output power essential for sensitive electronics.
Compact 3.3mm x 3.3mm x 1.5mm surface-mount package. Wide input voltage range from 4.5V to 16V dc. High efficiency integrated PWM controller and MOSFETs. Maximum continuous output current of 4A at 3.3V dc. Operating temperature range from −40°C to 125°C.
Programmable operation via I2C fast mode and fast mode plus. No external compensation required. Complies with RoHS and REACH environmental standards. Preset output voltages available: 2.5V or 3.3V dc.
This DC/DC Converter is suited for industrial, telecommunications, computing, automotive, and embedded system applications requiring high-density power solutions with minimal footprint.
Explore more power supply components and devices in EnvMart's Electronics & Electricals category to find compatible products and accessories for your power management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TDK FS1404 DC/DC converter provides a 3.3V dc output with a maximum continuous output current of 4A.
It accepts input voltages ranging from 4.5V dc to 16V dc, making it suitable for various input sources.
The dimensions of this surface mount converter are 3.3mm in length, 3.3mm in width, and 1.5mm in depth.
The operating temperature range for the TDK FS1404 is from −40°C to 125°C, ensuring reliability in harsh environments.
This model features a low ripple and noise level of 20mV, ensuring a clean power supply.
No external compensation is needed, facilitating easy integration into designs.
It supports a programmable I2C interface, allowing for flexible control and monitoring.
This converter complies with RoHS and REACH environmental standards, ensuring it meets regulatory requirements.
It is designed for industrial, telecommunications, computing, automotive, and embedded system applications requiring high-density power solutions.
The FS1404 uses a surface mount type, which is suitable for automated PCB assembly.
It features an integrated PWM controller and MOSFETs for efficient voltage regulation with minimal external components.
The output voltage can be preset to either 2.5V or 3.3V dc, with the primary output being 3.3V dc.
