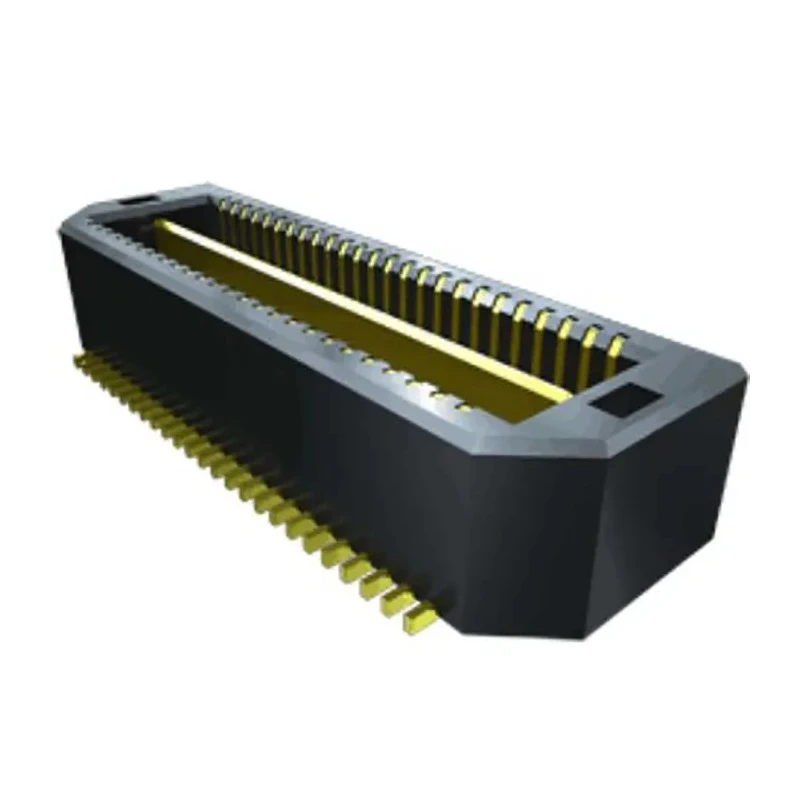

Samtec QTS Series Right Angle Surface PCB Header 50 Contact 0.64 mm Pitch 2 Row Shrouded QTS-025-01-F-D-RA

Free Delivery in India | Lowest Global Shipping Charges

Samtec QTS Series Right Angle Surface PCB Header 50 Contact 0.64 mm Pitch 2 Row Shrouded QTS-025-01-F-D-RA

Name: Samtec QTS Series Right Angle Surface PCB Header 50 Contact 0.64 mm Pitch 2 Row Shrouded QTS-025-01-F-D-RA
Brand: Samtec
SKU: 108760
Price: 15.52 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	220V
Brand	Samtec
Orientation	Right Angle
Current	2.2A
Model	QTS-025-01-F-D-RA
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	QTS
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.64mm
Contact Plating	Gold or Tin
Number of Contacts	50
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Constructed with high-quality Liquid Crystal Polymer housing for durability.
Phosphor bronze contact material with gold or tin plating ensures reliable conductivity.
Designed for surface mount on-board applications with right angle orientation.
Supports a current rating of 2.2 A at operating voltage of 220 V.
Operates reliably in temperature ranges from -55°C to 125°C.
Features solder termination for secure electrical connections.
Shrouded male contact design provides protection and ease of mating.
Board-to-board connector system ideal for compact electronic assemblies.

Product Description

Samtec QTS-025-01-F-D-RA is a right angle surface mount PCB header connector designed with 50 contacts arranged in 2 rows with a 0.64 mm pitch. The connector housing is manufactured from Liquid Crystal Polymer which offers excellent durability and temperature resistance, making it suitable for industrial and electronic applications requiring reliable and compact board-to-board connections.

The contacts are made of phosphor bronze and plated with gold or tin to ensure optimal conductivity and corrosion resistance. The male contacts are shrouded to provide mechanical protection and to prevent accidental damage during handling or assembly.

This PCB header supports a current rating of up to 2.2 A and an operating voltage of 220 V, functioning efficiently within temperatures ranging from -55°C to 125°C. The right angle orientation and surface mount design are ideal for compact PCB layouts, aiding in space-saving electronic assemblies.

The connector features solder termination type, ensuring secure and reliable solder joints on the printed circuit board. The design includes a ground bus (plane) feature to minimize electromagnetic interference, enhancing signal integrity in complex electronic systems.

Constructed with durable Liquid Crystal Polymer housing. Phosphor bronze contacts with gold or tin plating. Right angle orientation for compact PCB layouts. Supports 2.2 A current at 220 V voltage. Operates across a temperature range of -55°C to 125°C.

Solder termination ensures secure connections. Shrouded male contacts provide protection and easy mating. Board-to-board connector system for reliable electronic interconnection. 0.64 mm pitch between contacts and rows.

This PCB Header connector is suitable for use in electronics manufacturing, telecommunications, industrial control systems, and other applications requiring dependable board-to-board electrical connections. The connector's compact design and robust construction make it ideal for high-density PCBs and environments with precise mechanical and electrical requirements.

Explore more PCB connectors and related electronic components in the Electronics & Electricals category on EnvMart for diverse industrial and commercial applications.
