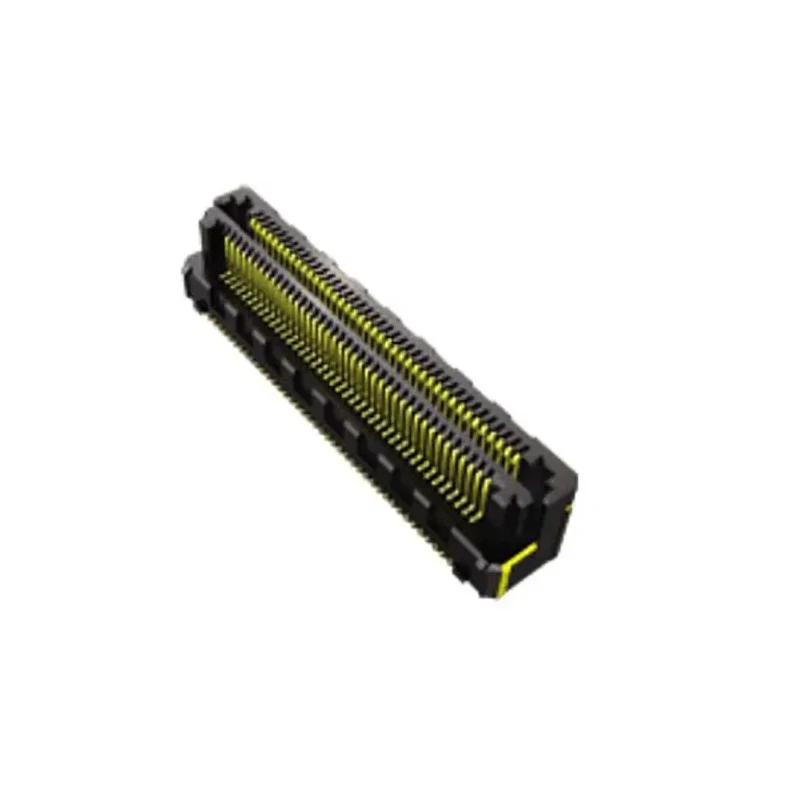

Samtec Vertical Surface PCB Header 100 Contacts 0.5 mm Pitch 2 Row Shrouded LSHM-150-02.5-F-DV-A-N-K-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec Vertical Surface PCB Header 100 Contacts 0.5 mm Pitch 2 Row Shrouded LSHM-150-02.5-F-DV-A-N-K-TR

Name: Samtec Vertical Surface PCB Header 100 Contacts 0.5 mm Pitch 2 Row Shrouded LSHM-150-02.5-F-DV-A-N-K-TR
Brand: Samtec
SKU: 108746
Price: 9.49 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	160, 226V ac
Brand	Samtec
Orientation	Vertical
Current	2A
Model	LSHM-150-02.5-F-DV-A-N-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	LSHM
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.5mm
Contact Plating	Gold
Number of Contacts	100
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

The connector features a shrouded design with two rows of contacts for enhanced housing protection.
Constructed with liquid crystal polymer housing for high-temperature durability.
Phosphor bronze male contacts are gold-plated to ensure excellent conductivity and corrosion resistance.
Rated for 2A current with operating voltage of 160 to 226V AC and operating temperature from -55°C to 125°C.
Mount type is surface mount, suitable for compact PCB layouts.
The Razor Beam fine pitch contact system provides superior mating and unmating forces.
Ideal for industrial, electronics manufacturing, and high-density circuit board applications.
Meets requirements for ruggedness and reliability in board-to-board and board-to-cable connections.

Product Description

Samtec LSHM-150-02.5-F-DV-A-N-K-TR is a vertical surface mount PCB header connector designed for precise and dense board-to-board interconnections. Featuring 100 male contacts arranged in two rows with a 0.5 mm pitch, this shrouded connector ensures secure mating with high mechanical durability. The housing is made of liquid crystal polymer, providing excellent thermal and mechanical resistance, supporting operating temperatures from -55°C to 125°C.

The phosphor bronze contacts with gold plating deliver superior electrical conductivity and corrosion resistance, rated for a current capacity of 2 amperes at AC voltages ranging from 160 to 226 volts. Its compact surface mount design suits modern electronics requiring miniaturization without sacrificing performance.

Utilizing the advanced Razor Beam fine pitch contact system, it achieves mating and unmating forces approximately 4-6 times greater than typical micro pitch connectors, making it ideal for industrial, laboratory, and electronics manufacturing environments that require reliable, high-density connections.

This connector provides up to 100 I/O connections, enabling complex circuit interconnections in demanding applications such as industrial automation, telecommunications, and medical devices. The shrouded design protects contacts from damage and contamination, increasing reliability and longevity.

The connector has a vertical orientation and is shrouded for contact protection. It’s fabricated with liquid crystal polymer housing material. Male contacts made from phosphor bronze feature gold plating for enhanced conductivity.

Rated current is 2A with voltage rating from 160 to 226V AC. Operating temperature range from -55°C to +125°C ensures suitability in harsh operating conditions.

This Samtec vertical surface PCB Header is suitable for use in electronic component assemblies, manufacturing test equipment, and high-density circuit board applications. It offers a highly reliable connection system for board-to-board and board-to-cable interfaces.

Explore more electronic connectors and components within EnvMart for comprehensive solutions to your PCB connectivity needs.
