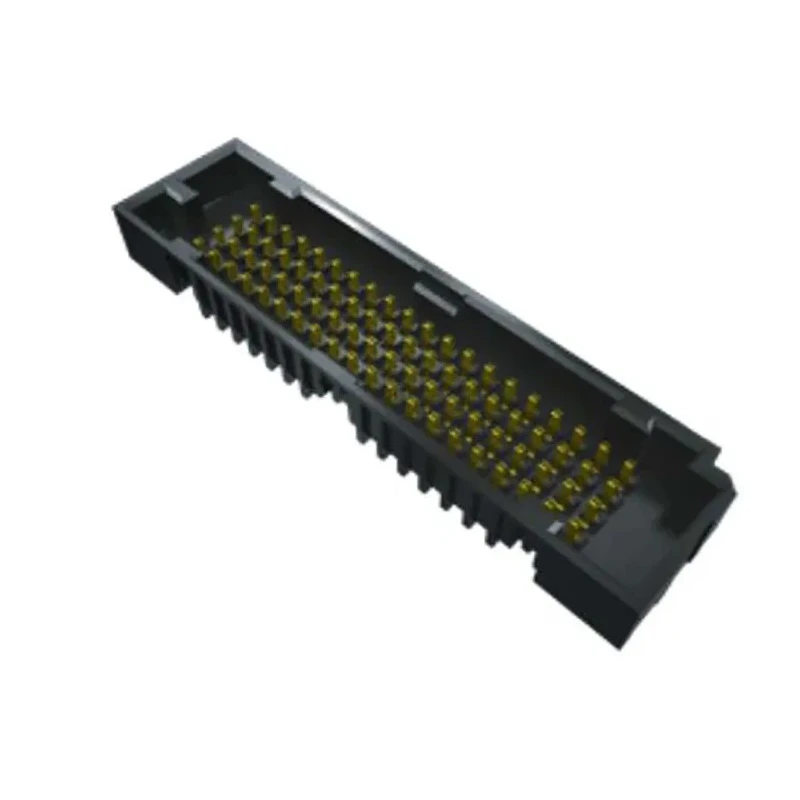

Samtec LPAM Series Straight Surface PCB Socket 320-Contact 8 Rows 1.27 mm Pitch Solder LPAM-40-01.0-S-08-2-K-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec LPAM Series Straight Surface PCB Socket 320-Contact 8 Rows 1.27 mm Pitch Solder LPAM-40-01.0-S-08-2-K-TR

Name: Samtec LPAM Series Straight Surface PCB Socket 320-Contact 8 Rows 1.27 mm Pitch Solder LPAM-40-01.0-S-08-2-K-TR
Brand: Samtec
SKU: 108734
Price: 46.92 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Samtec
Orientation	Straight
Current	2.2A
Model	LPAM-40-01.0-S-08-2-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	LPAM
Termination Type	Solder
Sub Type	Open Pin Field Array
Number of Rows	8
Pitch	1.27mm
Standards/Approvals	RoHS
Contact Plating	Gold
Number of Contacts	320
Connector System	Board-to-Board

Key Features

This socket features a straight orientation and board-to-board connector system.
Constructed with a liquid crystal polymer housing for excellent insulation and durability.
Contacts are made from copper alloy with gold plating for reliable conductivity.
Terminated via solder method supporting 2.2 A current per pin at 250 V voltage rating.
Complies with RoHS standards ensuring environmentally friendly manufacturing.
Ideal for high-speed, high-density electronic component applications.
Designed to withstand rigorous industrial and electronic manufacturing environments.
Supports open pin field array configuration for versatile PCB connection solutions.

Product Description

Samtec LPAM-40-01.0-S-08-2-K-TR is a high-quality PCB Socket designed for advanced electronic applications requiring reliable board-to-board connections. Featuring 320 contacts arranged in 8 rows with a fine 1.27 mm pitch, this straight surface mount socket ensures high-density connectivity for compact PCB designs.

The socket housing is made from black liquid crystal polymer (LCP), known for its excellent electrical insulation and mechanical robustness, enhancing its suitability for demanding industrial and commercial environments. Copper alloy contacts plated with gold assure exceptional electrical performance and corrosion resistance.

With a current rating of 2.2 Amps per pin and a working voltage of 250 Volts AC, this component addresses stringent power and signal requirements in electronic systems. The solder termination technique guarantees a solid, stable connection to the PCB, supporting manufacturing consistency and durability.

Compliant with RoHS directives, this product adheres to modern environmental and safety standards, aligning with green manufacturing initiatives. The open pin field array design provides flexibility and ease of integration into various PCB layouts, making it well-suited for telecommunications, computing, and industrial control applications.

This socket supports a board-to-board connector system, facilitating modular electronic designs. The contact plating and housing materials are engineered for long lifecycle and high reliability. Suitable for use in automated assembly processes due to its surface mount configuration.

Its compact 1.27 mm pitch allows for dense packing of PCB components without sacrificing performance. Standard 8-row configuration meets the needs of complex multi-pin electronic assemblies.

In summary, the Samtec LPAM series PCB socket LPAM-40-01.0-S-08-2-K-TR is an essential connector component for industries focusing on high-performance and robust PCB interconnection solutions. It is ideally used in sectors like manufacturing, electronics prototyping, telecommunications, and embedded systems development.
