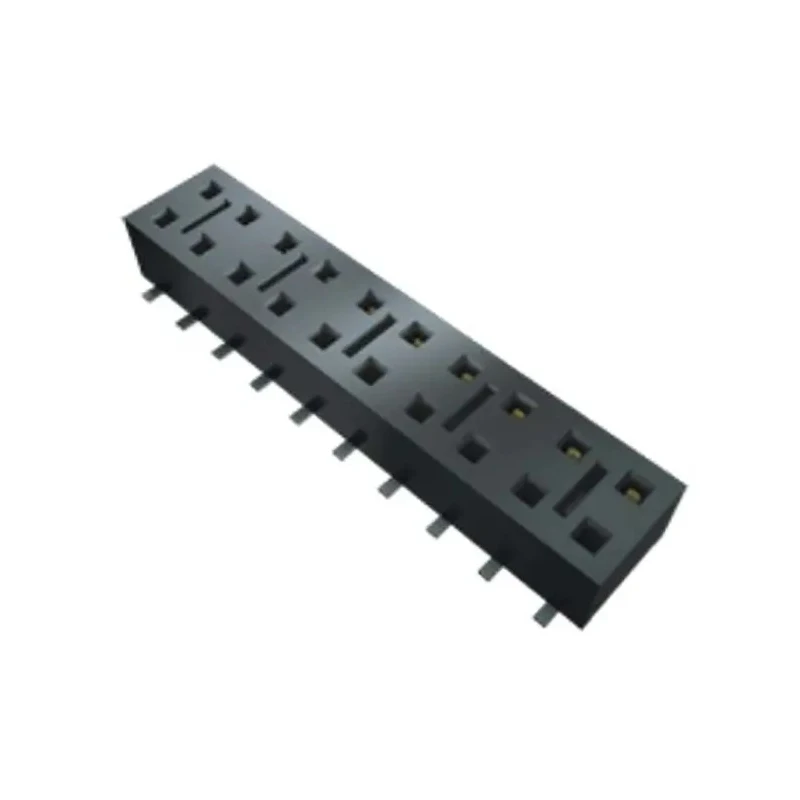

Samtec HLE Series Straight Surface PCB Socket 40-Contact 2 Row 2.54 mm Pitch Solder HLE-120-02-F-DV-BE
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 400V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 4.1A |
| Model | HLE-120-02-F-DV-BE |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | HLE |
| Termination | Through-hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Connector System | Board-to-Board |
| Contact System | Tiger Beam™ |
Key Features
- Constructed with liquid crystal polymer housing for durability.
- Operates safely up to 400 V and 4.1 A current.
- Gold-plated beryllium copper alloy contacts ensure high conductivity.
- Operating temperature range from -55°C to 125°C for extended environmental reliability.
- Features Tiger Beam™ contact system and through-hole termination.
- Compatible with double row configurations up to 100 pins.
- Surface mount design for easy PCB integration.
- Ideal for electronic component manufacturing and industrial applications.
Product Description
Samtec HLE-120-02-F-DV-BE is a high-quality PCB socket designed for straight surface mounting applications. It features 40 contacts arranged in two rows with a pitch of 2.54 mm, making it suitable for board-to-board connectivity. The socket's housing is made from liquid crystal polymer, providing excellent mechanical and thermal stability.
The contacts utilize a beryllium copper alloy with gold plating for superior conductivity and corrosion resistance. This socket supports a current rating of 4.1 A and operates under voltages up to 400 V. It also incorporates the Tiger Beam™ contact system, which enhances contact reliability.
Designed for demanding applications, the socket has an operating temperature range from -55°C to 125°C, ensuring reliable performance in varied industrial environments. Its through-hole termination aids in robust PCB mounting.
This product is ideal for use in electronic manufacturing, laboratory, industrial automation, and other electronics assembly environments requiring reliable and durable PCB connectors.
Constructed with liquid crystal polymer housing for durability. Operates safely up to 400 V and 4.1 A current. Gold-plated beryllium copper alloy contacts ensure high conductivity. Operating temperature range from -55°C to 125°C for extended environmental reliability.
Features Tiger Beam™ contact system and through-hole termination. Compatible with double row configurations up to 100 pins. Surface mount design for easy PCB integration. Ideal for electronic component manufacturing and industrial applications.
Explore the category of PCB Sockets on EnvMart for compatible connectors and components to complement your assembly projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This socket operates safely up to a voltage of 400 V.
The current rating for the HLE-120-02-F-DV-BE is 4.1 A.
The housing is made from liquid crystal polymer, and the contacts are made of beryllium copper alloy with gold plating.
The operating temperature range is from -55°C to 125°C.
This socket features 40 contacts arranged in two rows.
It utilizes through-hole termination with solder.
The pitch of the contacts is 2.54 mm.
The connector system is designed for board-to-board connectivity.
The orientation of this socket is straight.
It features the Tiger Beam™ contact system, which enhances contact reliability.
This product is manufactured in India.
It is ideal for electronic component manufacturing and industrial applications.
