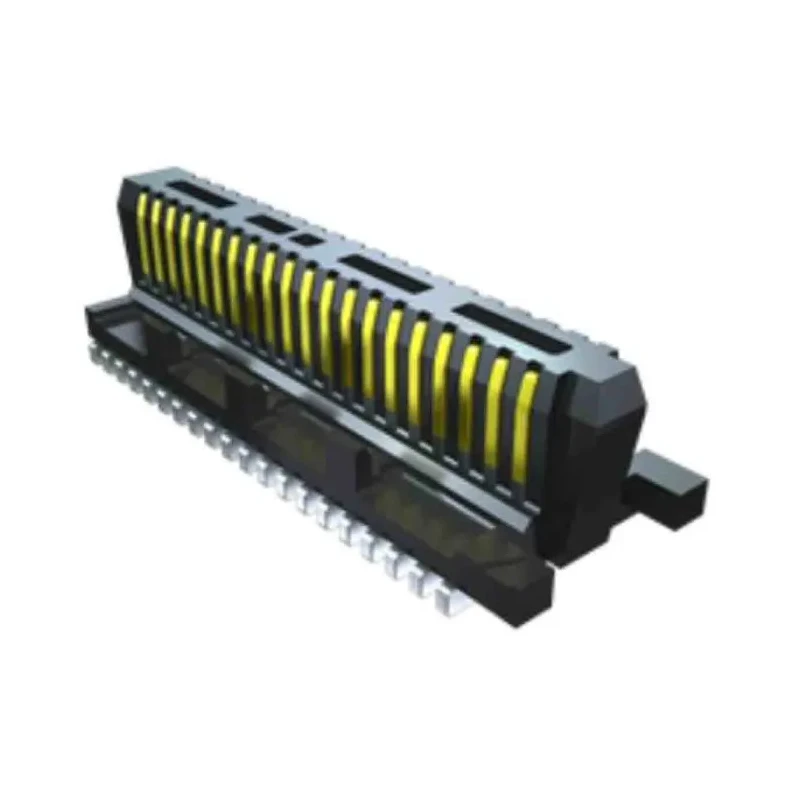

Samtec ST5 Series Right Angle Surface PCB Header 20 Contacts 0.5 mm Pitch 2 Row Shrouded ST5-10-1.00-L-D-P-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 1.6A |
| Model | ST5-10-1.00-L-D-P-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | ST5 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Silver, Tin |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Designed for board-to-board connector system with a right-angle orientation.
- Constructed with a liquid crystal polymer housing for durability.
- Phosphor bronze contacts plated with silver and tin ensure reliable electrical performance.
- Supports a maximum current of 1.6A and temperature range from -55°C to 125°C.
- Surface mount termination type for easy PCB assembly.
- Shrouded and male contact gender to prevent damage and ensure proper mating.
- Suitable for high-density PCB applications with 0.5 mm pitch spacing.
- Ideal for use in electronic manufacturing and assembly.
Product Description
The Samtec ST5-10-1.00-L-D-P-TR is a high-quality right angle surface mount PCB header designed for board-to-board connections in dense electronic assemblies. Featuring 20 male contacts arranged in 2 rows with a pitch of 0.5 mm, this connector ensures excellent electrical performance and mechanical stability.
The housing is made from liquid crystal polymer providing robust insulation and resistance to high temperatures from -55°C to 125°C. The contact material of phosphor bronze combined with silver and tin plating offers superior conductivity and corrosion resistance. This shrouded connector helps protect the contacts from damage and ensures proper mating alignment.
Designed for a maximum current of 1.6A, this PCB header is suitable for a wide range of electronic components and devices requiring secure board-to-board connections. Its right-angle orientation and surface mount termination type enable efficient use of PCB space and ease of assembly.
This connector is ideal for applications in industrial electronics, telecommunications equipment, computing devices, and other commercial electronics manufacturing. The precise 0.5 mm pitch and 2-row configuration support high-density circuit board designs.
Right angle surface mount PCB header for board-to-board connections. 20 contacts with 0.5 mm pitch arranged in 2 rows. Liquid crystal polymer housing ensures mechanical durability and temperature resistance. Phosphor bronze contacts plated with silver and tin for dependable electrical contact.
Shrouded design protects contacts and provides secure mating. Supports up to 1.6A current and operating temperature range of -55°C to 125°C. Male contact gender suitable for standard mating connectors. Ideal for compact electronic devices requiring reliable interconnection.
Explore Samtec connectors and other electronic components in the PCB Headers category on EnvMart for reliable industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 1.6A.
The operating temperature range is from -55°C to 125°C.
The contacts are arranged with a pitch of 0.5 mm.
It features a total of 20 contacts arranged in 2 rows.
The housing is made from liquid crystal polymer, and the contacts are made of phosphor bronze plated with silver and tin.
It has a surface mount termination type for easy PCB assembly.
This connector is shrouded, which helps protect the contacts and ensures proper mating alignment.
It is designed with a right-angle orientation for board-to-board connections.
The contact gender is male, suitable for standard mating connectors.
The country of origin for this product is India.
This model is ideal for use in industrial electronics, telecommunications equipment, and computing devices requiring secure board-to-board connections.
This connector belongs to the ST5 series.
