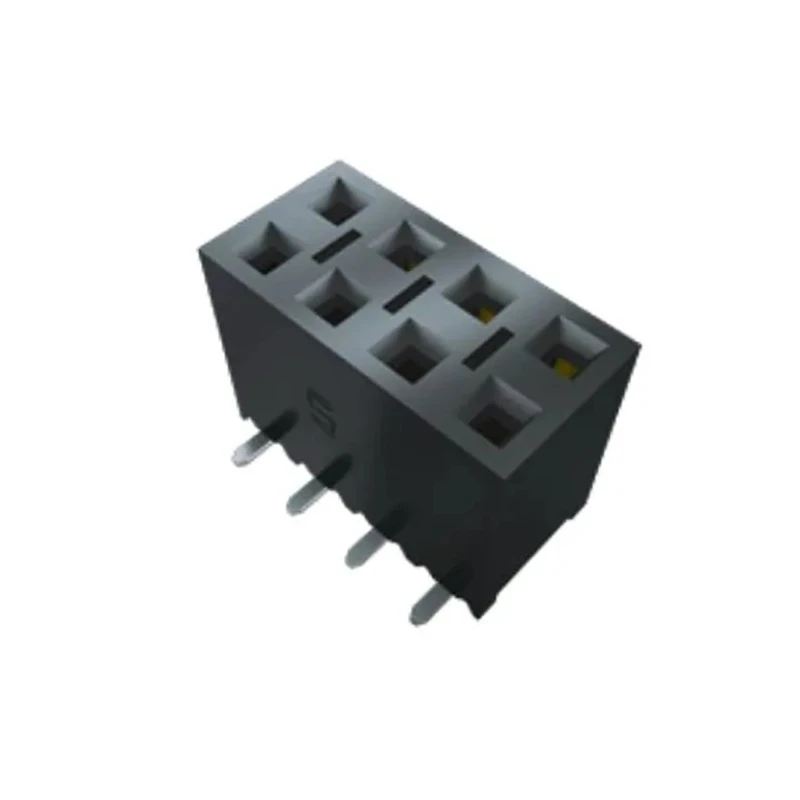

Samtec SSM Series Vertical Surface Mount PCB Socket, 32 Contacts, 2 Row, 2.54 mm Pitch, 572V, 5.2A Current SSM-116-L-DV-K-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 572V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 5.2A |
| Model | SSM-116-L-DV-K-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | SSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Surface Mount Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 32 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- Constructed with black liquid crystal polymer housing ensuring durability.
- Contacts made from phosphor bronze with 0.25μm gold plating for reliable conductivity.
- Supports a current rating of 5.2 A and voltage rating up to 572 V.
- Designed for vertical orientation and surface mount installation.
- Operating temperature range from -55°C to 125°C enables robust performance.
- Contact gender is female suitable for board-to-board connector systems.
- Row pitch of 2.5 mm and solder termination type offering secure electrical connection.
Product Description
The Samtec SSM-116-L-DV-K-TR is a vertical surface mount PCB socket from the SSM series designed for board-to-board applications. Featuring 32 contacts in 2 rows with a precise 2.54 mm pitch, this socket provides reliable electrical connectivity for electronic circuits.
Its housing is crafted from durable black liquid crystal polymer, providing mechanical strength and thermal stability. The contacts are made from high-quality phosphor bronze and plated with 0.25 μm of gold to ensure low contact resistance and corrosion resistance.
This socket supports a current rating of 5.2 A per contact and withstands voltages up to 572 V, making it suitable for a variety of electronic and industrial applications. It is designed for vertical orientation and surface mount technology (SMT) installation, optimizing PCB real estate and assembly efficiency.
With an operating temperature range from -55 °C to +125 °C, the component can operate reliably in harsh environments. Its female contact gender and solder termination type enable secure and consistent connections in board-to-board connector systems.
Housing material: Liquid crystal polymer for durability and heat resistance. Contact material: Phosphor bronze with gold plating for enhanced conductivity. Voltage rating: 572 V for versatile electronic applications. Current rating: 5.2 A per pin suitable for moderate power requirements.
Pitch: 2.54 mm with 2-row configuration for compact design. Operating temperature: -55°C to 125°C ensuring reliability in varied conditions. Mount type: Surface mount technology designed for vertical orientation.
This PCB socket is ideal for industrial, electronic manufacturing, telecommunications, computing hardware, and other commercial applications requiring robust board connectors. The product is compliant with industry standards and is RoHS certified for environmental safety.
Explore more from the Samtec SSM series category on EnvMart for additional PCB Socket options and compatible connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 572 V, making it suitable for various electronic applications.
The current rating for each contact in the SSM-116-L-DV-K-TR is 5.2 A.
The socket features a pitch of 2.54 mm and has a 2-row configuration with a total of 32 contacts.
The housing is made from liquid crystal polymer, while the contacts are constructed from phosphor bronze and plated with 0.25 μm gold for enhanced conductivity.
This socket operates effectively within a temperature range of -55°C to +125°C.
It is designed for surface mount technology (SMT) installation, allowing for vertical orientation on PCBs.
The SSM-116-L-DV-K-TR uses a solder termination type for secure electrical connections.
The contacts in this model are female, suitable for board-to-board connector systems.
Yes, this product is RoHS certified, ensuring compliance with environmental safety standards.
It is suitable for various applications including industrial, electronic manufacturing, telecommunications, and computing hardware.
The country of origin for this socket is India.
This model is designed for board-to-board connector systems, facilitating reliable connections between PCBs.
