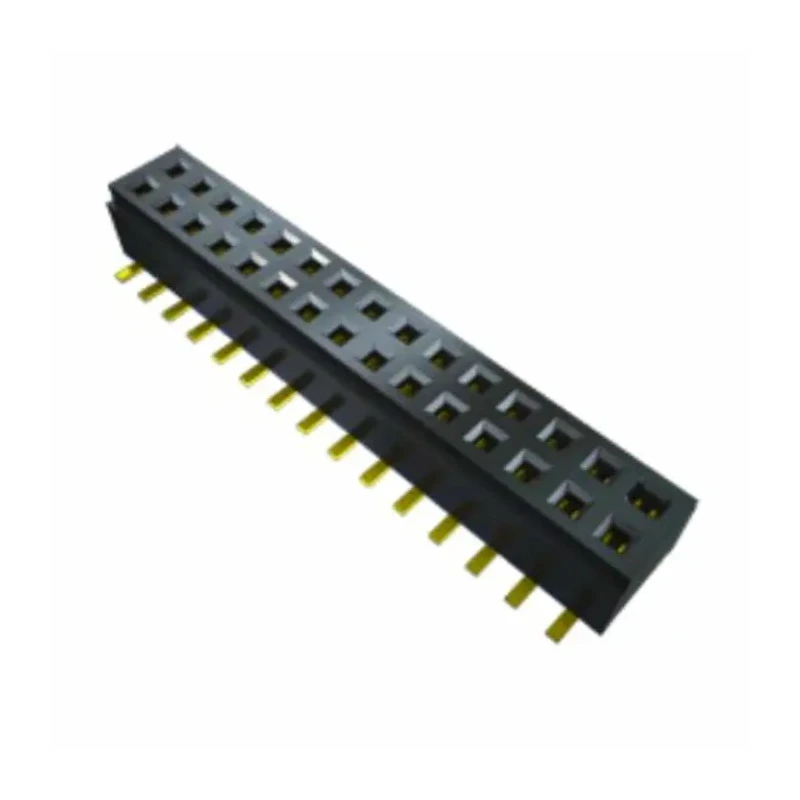

Samtec CLM Series Straight Surface PCB Socket, 24-Contact, 2 Row, 1 mm Pitch, 270V, 3.1A Current CLM-112-02-G-D-A

The Samtec CLM-112-02-G-D-A is a high-quality straight surface mount PCB socket designed to provide reliable board-to-board connections in electronic assemblies. This PCB socket features 24 contacts arranged in 2 rows with a compact 1 mm pitch, ideal for applications requiring dense circuit configurations.

Constructed with a housing of liquid crystal polymer, the socket offers superior mechanical and thermal resistance suited to demanding industrial environments. The phosphor bronze contacts are plated with gold, facilitating excellent conductivity and corrosion protection over extended use.

Rated for a current of 3.1 amps and voltage up to 270 volts, this product supports robust electrical performance for various signal and power applications. It is terminated by solder, ensuring secure and stable mounting on printed circuit boards with a straight orientation for straightforward assembly.

Operating temperature ranges from a minimum of -55°C to a maximum of 125°C, making this PCB socket suitable for use in harsh environmental conditions often encountered in industrial, telecommunications, and computing applications.

This product belongs to the Samtec CLM series featuring low profile dual wipe Tiger Claw™ contact technology that improves connection stability and reduces signal loss. The socket is optionally available with cost-saving gold plating and tape and reel packaging for automated assembly lines.

The socket supports 24 contacts arranged in 2 rows for efficient signal connections. Features a pitch spacing of 1 mm suitable for high-density PCB assemblies. Current rating of 3.1 amperes and voltage rating of 270 volts ensures reliable electrical performance.

Contacts are made of phosphor bronze with gold plating for enhanced conductivity and corrosion resistance. Housing is manufactured from liquid crystal polymer providing excellent durability and heat resistance. Compatible with solder termination type and has a straight orientation for easy PCB integration.

Minimum operating temperature is -55°C and maximum operating temperature is 125°C ensuring wide thermal tolerance. Designed as part of the CLM series offering low profile dual wipe Tiger Claw™ contact technology.

This Samtec PCB socket is widely used in industrial electronics, telecommunications equipment, computing hardware, and manufacturing assembly lines. It enables secure, high-density connections vital for modern electronic functionality and reliability.
