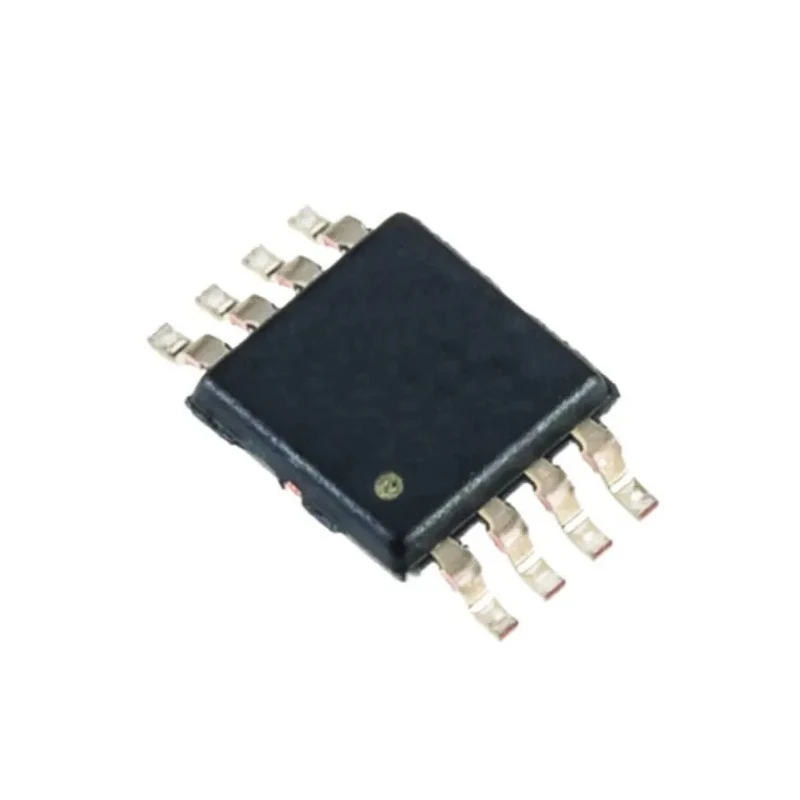

Texas Instruments Precision Operational Amplifier 18 MHz Gain Bandwidth Product 8-Pin VSSOP OPA2209AIDGKT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.3mm |
| Length | 3.05mm |
| Model | OPA2209AIDGKT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | OPA2209 |
| Maximum Operating Temperature | 125°C |
| Package Type | VSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 40V |
| Minimum Supply Voltage | 4.5V |
| GBP - Gain Bandwidth Product | 18MHz |
| Input Bias Current | ±15 nA |
| Slew Rate | 6.4V/μs |
Key Features
- Single channel operational amplifier in 8-pin VSSOP package.
- Operates with supply voltage range of 4.5V to 40V.
- Input bias current typically ±15 nA for precision signal processing.
- High slew rate of 6.4 V/μs enabling fast response times.
- Operating temperature range from -40°C to 125°C supports extended environments.
- Lacks automotive certification, designed for general semiconductor applications.
- No standard approvals; suitable for demanding instrumentation and filter designs.
- Typical uses include precision integrators, active filters, strain gauge amplifiers and instrumentation.
Product Description
Texas Instruments OPA2209AIDGKT is a precision operational amplifier featuring an 18 MHz gain bandwidth product, designed for high accuracy and low parametric drift over time and temperature. This device is a single channel amplifier packaged in an 8-pin VSSOP surface mount, offering a compact footprint suitable for space-constrained circuit designs.
The amplifier supports a wide supply voltage range from 4.5V up to 40V, with an input bias current of ±15 nA which ensures low input offset and precision performance. Its high slew rate of 6.4 V/μs enables it to handle fast transient signals efficiently, making it ideal for applications requiring quick response.
Operational temperature spans from -40°C to 125°C, providing robustness across industrial temperature ranges. The device has no automotive certifications or standard approvals, indicating its use mainly in laboratory, instrumentation, and industrial electronics where reliability and precision are key considerations.
Applications include precision integrators, active filtering, instrumentation amplifiers, transducer interfaces, and strain gauge amplifier circuits. The OPA2209 series from Texas Instruments is known for delivering stable, accurate amplification essential for sensitive measurement and control electronics.
Single channel amplifier with 8-pin VSSOP packaging. Wide supply voltage from 4.5V to 40V supports versatile circuit design. Low input bias current and offset voltage ensure precision operation. High slew rate allows fast signal processing.
Extended operating temperature range for industrial use. Compact size suitable for dense PCB layouts. Ideal for transducer and strain gauge amplification. Used in precision integrators and active filters. Lacks automotive approval, mainly for laboratory and industrial applications.
Explore more Operational Amplifiers from Texas Instruments on EnvMart for high quality semiconductor components fit for industrial and manufacturing electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The OPA2209AIDGKT has a gain bandwidth product of 18 MHz, making it suitable for high-frequency applications.
It operates with a supply voltage range of 4.5V to 40V, allowing for versatile circuit designs.
The input bias current is typically ±15 nA, ensuring low input offset and precision performance.
The maximum operating temperature is 125°C, suitable for industrial applications.
This operational amplifier has a height of 1.3 mm, a length of 3.05 mm, and a width of 1.75 mm.
The slew rate is 6.4 V/μs, enabling fast response times for transient signals.
It is packaged in an 8-pin VSSOP surface mount configuration, suitable for compact designs.
This model is suitable for precision integrators, active filters, strain gauge amplifiers, and instrumentation applications.
The minimum operating temperature is -40°C, allowing it to function in extended environments.
It is a single channel operational amplifier, designed for specific signal processing tasks.
No, it lacks automotive certification and is primarily designed for general semiconductor applications.
The country of origin for this operational amplifier is India.
