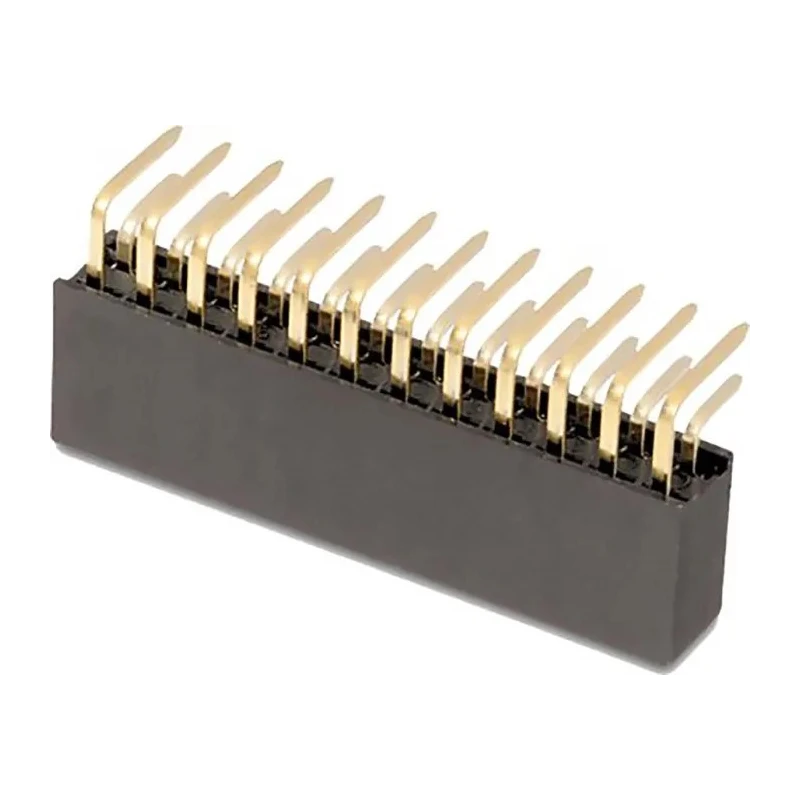

Wurth Elektronik Right Angle Through Hole PCB Socket 16-Contact 2 Row 2.54 mm Pitch 500V WR-PHD Series 613016243121
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | THT Female Dual Row |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- This PCB socket is designed for right angle orientation through-hole mounting.
- Constructed with Polybutylene Terephthalate housing for durability and UL94 V-0 flammability rating.
- Contacts are female, made of copper alloy with gold plating for enhanced conductivity and corrosion resistance.
- Rated for a continuous current of 3A and voltage up to 500 volts.
- Operating temperature range from -40°C to 105°C suitable for diverse industrial environments.
- The connector system supports board-to-board connections with solder termination type for secure electrical contact.
- Ideal for electronic components applications requiring reliable and robust PCB connections.
- Manufactured in Taiwan, Province Of China ensuring quality standards.
Product Description
Wurth Elektronik 613016243121 is a high-quality Right Angle Through Hole PCB Socket from the WR-PHD Series with 16 contacts arranged in 2 rows and a standard 2.54 mm pitch. Operating at 500 volts and rated for 3 amperes, this socket is engineered for robust board-to-board connectivity in demanding electronic environments.
The socket features a Polybutylene Terephthalate (PBT) housing which complies with UL94 V-0 flammability standards, ensuring safe operation in critical applications. The gold-plated copper alloy female contacts provide excellent electrical conductivity and resistance to corrosion, enhancing the longevity and reliability of the connection.
Designed for through-hole mounting with right angle orientation, the termination is of the solder type, facilitating secure soldering onto printed circuit boards. It is engineered to operate reliably within a wide temperature range of -40°C to 105°C, accommodating a variety of industrial, manufacturing, laboratory, and electronic assembly use cases.
This connector system is ideal for diverse applications including PCB assembly, industrial power & connectors, and electronic components manufacturing. It provides a reliable electrical coupling with a compact and efficient form factor.
This PCB socket is designed for right angle orientation through-hole mounting. Constructed with Polybutylene Terephthalate housing for durability and UL94 V-0 flammability rating. Contacts are female, made of copper alloy with gold plating for enhanced conductivity and corrosion resistance.
Rated for a continuous current of 3A and voltage up to 500 volts. Operating temperature range from -40°C to 105°C suitable for diverse industrial environments. The connector system supports board-to-board connections with solder termination type for secure electrical contact.
Manufactured in Taiwan, Province Of China ensuring quality standards.
EnvMart offers this Wurth Elektronik PCB socket as a reliable option for electronic engineers and procurement professionals seeking dependable connector solutions for their PCB designs and assembly processes. Explore related PCB Sockets in the Electronics & Electricals category on EnvMart for complementary components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The socket is rated for a voltage of up to 500 volts.
It is rated for a continuous current of 3A.
The operating temperature range is from -40°C to 105°C.
The housing is constructed from Polybutylene Terephthalate (PBT).
This PCB socket has 16 contacts arranged in 2 rows.
It uses a solder termination type for secure electrical contact.
The contacts are made of copper alloy with gold plating for enhanced conductivity and corrosion resistance.
The pitch size is 2.54 mm.
It supports through-hole mounting with a right angle orientation.
Yes, it is designed as a connector system for board-to-board connections.
This PCB socket is manufactured in Taiwan, Province Of China.
It belongs to the WR-PHD Series.
