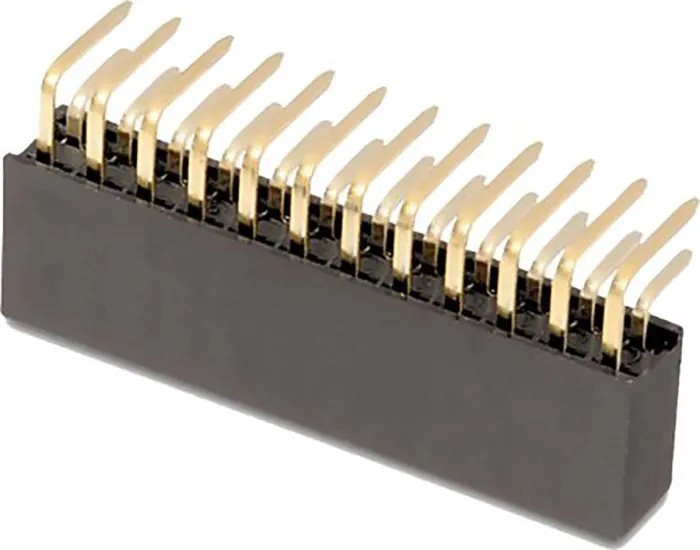

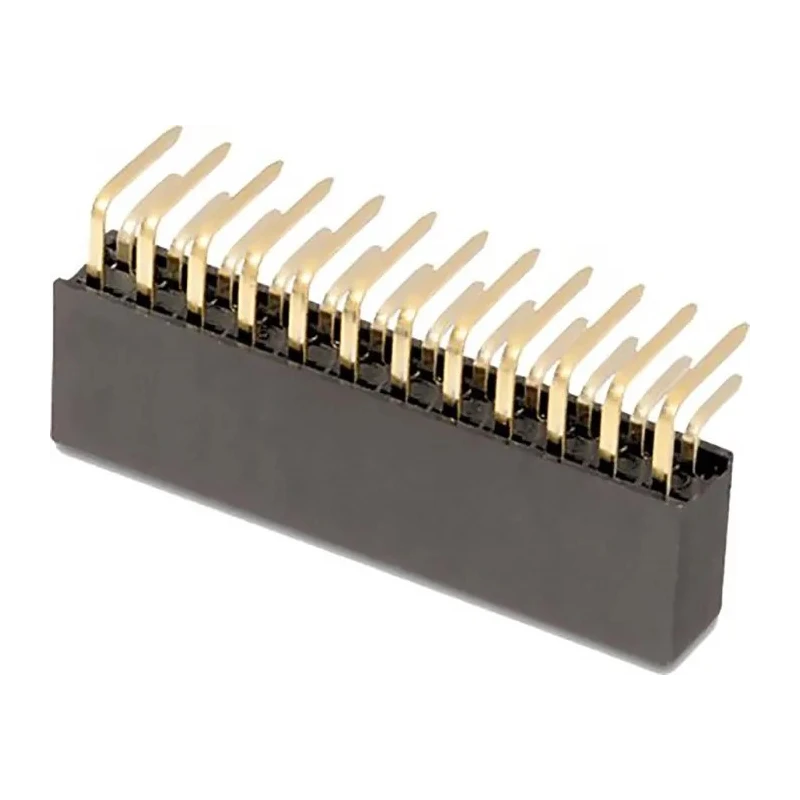

Wurth Elektronik WR-PHD Series Right Angle Through Hole PCB Socket, 8-Contact, 2 Row, 2.54 mm Pitch Solder 613008243121
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | THT Female Dual Row |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features a right angle orientation for versatile PCB design.
- Constructed with a Polybutylene Terephthalate housing rated UL94-V0 for flame resistance.
- Gold-plated copper alloy female contacts provide reliable electrical connection.
- Supports 3A current with 500V voltage rating for robust performance.
- Designed for through-hole mounting with dual row and 2.54 mm pitch.
- Operates reliably between -40°C and 105°C temperature range.
- Board-to-board connector system for compact electronic assemblies.
- Manufactured in Taiwan, Province Of China, adhering to high quality standards.
Product Description
Wurth Elektronik 613008243121 WR-PHD Series is a right angle through hole PCB socket designed with 8 female contacts in 2 rows spaced at 2.54 mm pitch. It features a UL94-V0 rated Polybutylene Terephthalate (PBT) housing ensuring flame resistance and durability. This PCB socket uses gold-plated copper alloy contacts that provide excellent conductivity and corrosion resistance, making it ideal for board-to-board applications.
The socket supports up to 3A current at a voltage rating of 500V, accommodating demanding electrical requirements. Its through-hole mount type offers stable soldered connections in electronic circuit assemblies. Designed for operation in challenging environments, it tolerates temperatures from -40°C to 105°C, ensuring performance reliability.
This connector is widely applicable in industrial electronics, manufacturing, automation systems, and general PCB assembly tasks requiring secure, high-quality electrical interconnections. The right angle design assists in space-saving PCB layouts and ease of integration.
Constructed by Wurth Elektronik, a reputable brand known for quality electronic components, this WR-PHD series socket is manufactured in Taiwan, Province Of China, guaranteeing compliance with stringent manufacturing standards.
Features a right angle orientation for versatile PCB design. Constructed with a Polybutylene Terephthalate housing rated UL94-V0 for flame resistance. Gold-plated copper alloy female contacts provide reliable electrical connection.
Supports 3A current with 500V voltage rating for robust performance. Designed for through-hole mounting with dual row and 2.54 mm pitch. Operates reliably between -40°C and 105°C temperature range. Board-to-board connector system for compact electronic assemblies.
Manufactured in Taiwan, Province Of China, adhering to high quality standards. Explore Wurth Elektronik's PCB Sockets range and other high-quality electronic connectors for reliable and efficient industrial applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a maximum current of 3A and a voltage rating of 500V, accommodating demanding electrical requirements.
It features a pitch of 2.54 mm and includes 8 female contacts arranged in 2 rows.
The housing is constructed from Polybutylene Terephthalate (PBT), which is rated UL94-V0 for flame resistance.
This socket operates reliably within a temperature range of -40°C to 105°C, ensuring performance in various environments.
It is designed for through-hole mounting, providing stable soldered connections in electronic circuit assemblies.
This model utilizes a board-to-board connector system, which is suitable for compact electronic assemblies.
The termination type for this PCB socket is solder, allowing for secure connections during assembly.
The contacts are made from gold-plated copper alloy, providing excellent conductivity and corrosion resistance.
It features a right angle orientation, which assists in space-saving PCB layouts and ease of integration.
This product is manufactured in Taiwan, Province Of China, adhering to high quality standards.
It is widely applicable in industrial electronics, manufacturing, automation systems, and general PCB assembly tasks requiring secure electrical interconnections.
This model belongs to the WR-PHD series, which is designed for versatile PCB applications.
