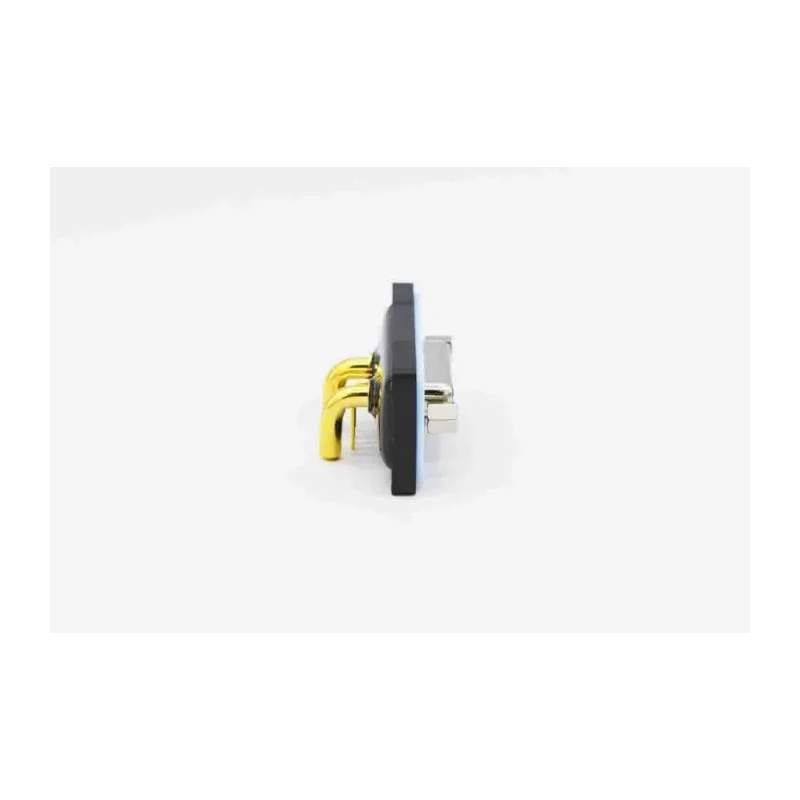

Norcomp 37 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Female with 4 to 40 Screw Lock SDF-S37-203L011

Norcomp SDF-S37-203L011 is a 37 pin female D-Sub connector designed for panel mounting with a straight orientation and 2.77 mm pitch between contacts. This connector is suitable for industrial and electronic applications requiring reliable multi-pin connections with moderate current and voltage ratings.

The shell is constructed of nickel plated steel, offering robustness and resistance to mechanical strain. Brass contacts plated with gold provide high conductivity and corrosion resistance, ensuring signal integrity and durable connection life. It features a panel mount type with 4 to 40 screw lock hardware, allowing secure and stable installation.

Operating voltage is rated up to 1000 V AC and current up to 5 A, suitable for common power and signal applications. The connector operates effectively in ambient temperatures ranging from -25°C to +85°C, making it suitable for various industrial and commercial environments.

The insulation resistance of 5 Gohms further ensures safety and minimal signal interference. While this connector does not have specific standards or approvals, it comes from the Norcomp SDF series which is well-regarded for dependable performance in electronic component assemblies.

Common use cases include industrial control systems, computing hardware, telecommunications, instrumentation panels, and other electrical assemblies that require D-Sub Connectors with female contacts and secure panel mounting. This component enables reliable, repeatable connections essential for high-reliability environments.

This connector features 37 female pin contacts in a straight layout. Pitch between pins is 2.77 mm for precise alignment. Electrical ratings include 1000 V voltage and 5 A current capacity. Panel mount type with 4 to 40 screw lock hardware for secure fixation.

Gold plated brass contacts ensure excellent conductivity and corrosion resistance. Housing constructed from polybutylene terephthalate for durability. Nickel plated steel shell provides mechanical protection and longevity.

Operating temperature ranges from -25°C to +85°C for diverse conditions. Insulation resistance of 5 Gohms offers superior electrical isolation. Find more electronic connectors and components on EnvMart, including Norcomp brand products designed for industrial and commercial applications.
