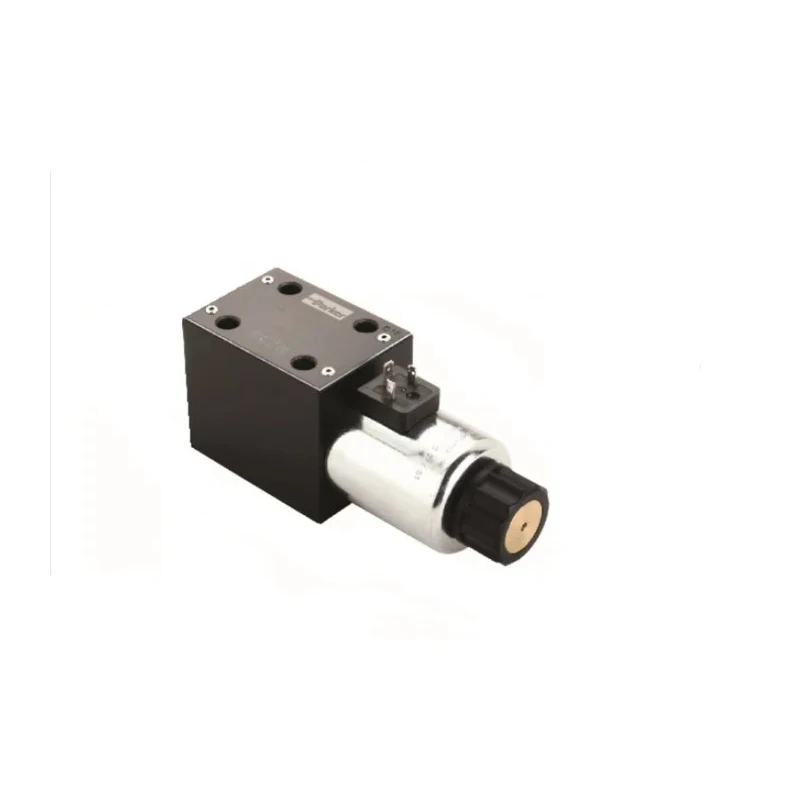

Parker Directional Control Valve DIN Mount, Single Solenoid, 2 Positions, 4 Ports, Max Flow 80L/min, 350bar D1VW030BNYW

Parker D1VW030BNYW Directional Control Valve DIN Mount, featuring a single solenoid actuation mechanism, delivers robust and precise hydraulic directional control with a maximum flow rate of 80 L/min and operating pressure up to 350 bar. This valve is designed for demanding industrial and fluid power applications requiring efficient flow management.

The valve includes two positions and four ports, offering versatile flow routing capabilities. It utilizes a Type B spool for directional control and incorporates nitrile butadiene rubber seals, providing excellent compatibility with hydraulic oils conforming to DIN 51524 standards. Operating temperature ranges from -25°C to 60°C, ensuring reliable performance in varied environmental conditions.

The valve mount pattern follows the DIN NG06 / CETOP 03 / NFPA D03 standards, ensuring compatibility and ease of installation. Actuation is by a solenoid with wet pin armature design threaded in tube, suitable for mounting in any position (horizontal preferred). It is built to comply with multiple standards including EN 60529 (IP65), NFPA D03, CETOP RP 121-H, ISO 4401, DIN 24340 A6, and EN 175301-803.

Additional features include a maximum switching frequency of 15,000 per hour, maximum leakage at 50 bar limited to 10 ml/min depending on spool type, and a recommended maximum wire length of 50 meters with 3x1.5 mm² wire for installation. Manual solenoid override capability enhances operational flexibility.

This directional control valve is well-suited for general industrial hydraulic applications including manufacturing, construction, and fluid power systems requiring efficient and reliable valve operation. The durable construction and high performance make it a preferred choice in industrial setups.

This valve offers two positions and four ports, suitable for complex flow direction needs. It supports a maximum flow rate of 80 L/min with pressure resistance up to 350 bar. The valve spool is of Type B design, ensuring precise flow control.

Seal material is Nitrile Butadiene Rubber, compatible with hydraulic oils conforming to DIN 51524. Operating temperature ranges from -25°C to 60°C for versatile conditions. The valve supports DIN mount pattern for easy installation following industry standards.

Equipped with solenoid actuation type for efficient and responsive fluid power control. Meets standards including EN 60529 (IP65), NFPA D03, CETOP RP 121-H, ISO 4401, DIN 24340 A6, and EN 175301-803. Explore the wide range of hydraulic valves and manifolds at EnvMart for comprehensive industrial solutions.
