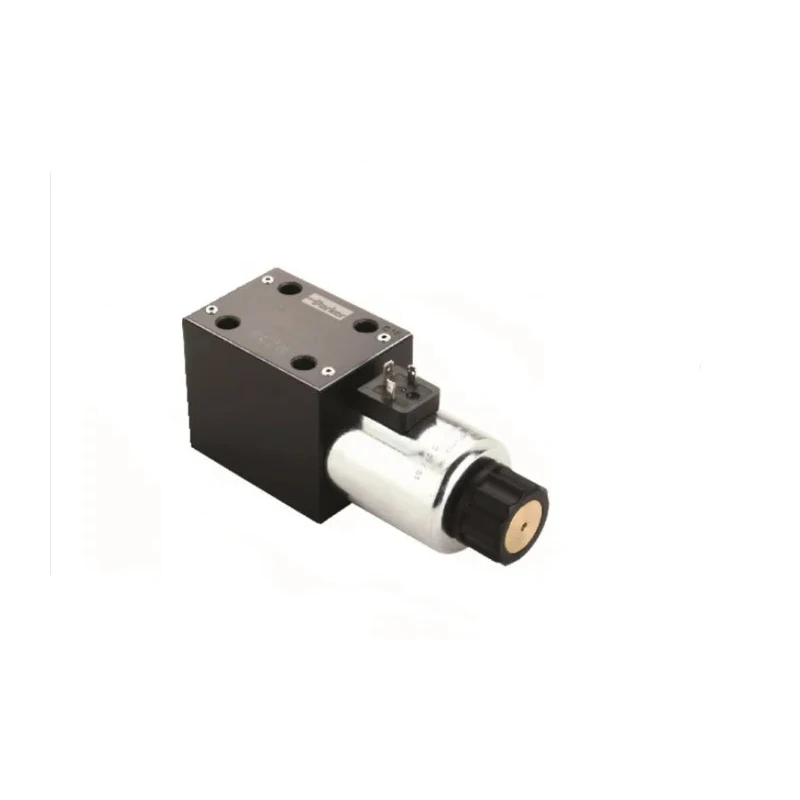

Parker Hydraulic Directional Control Valve Plate CETOP Slider Type 24V dc D1VW020HNJW

Parker D1VW020HNJW hydraulic directional control valve plate with CETOP 03 mount and slider type spool is engineered for efficient fluid power control in industrial hydraulic systems. Operating at 24V dc voltage, this directly and pilot operated valve features a robust design optimized for low-pressure drop and excellent fluid flow characteristics.

It has 2 positions and 4 ports allowing precise directional control, supporting a maximum operating pressure of 350 bar and safe temperature operation between 5°C and 80°C. The valve’s single solenoid actuation enables reliable and rapid switching with a maximum frequency of 15000 operations per hour while maintaining low leakage.

This valve complies with CE and relevant EN standards (EN 175301-803, 2006/42/EC, EN 201:1997) ensuring safety and performance in demanding industrial environments. The slider type spool design, combined with a manual solenoid override and wet pin armature solenoid threaded in tube, provides flexible control and durability.

The valve supports use of hydraulic oils per DIN 51524 standard and is mountable in any position (horizontal preferred) via CETOP plate mount pattern. Wiring recommendations include 3x1.5mm² cable and max wire length of 50 m. The EN 175301-803 solenoid connector standard is used (plug not included).

This model features 2 positions and 4 ports tailored for hydraulic directional control. Maximum operating pressure is 350 bar with max temperature of 80°C for robust industrial use. The single solenoid operation coupled with slider spool type ensures smooth and energy-efficient actuation.

It satisfies multiple international standards including CE certification for quality assurance. Designed for hydraulic oils compliant with DIN 51524 for broad compatibility. Offers manual override and durable wet pin solenoid armature for maintenance ease.

The valve supports a max flow rate of up to 80 ml/min with minimal pressure drop. Reliable electrical connection with EN 175301-803 compliant solenoid interface.

This Parker directional control valve plate is ideal for general industrial hydraulic applications including manufacturing, construction, and fluid power systems. Its robust and precise control features make it suitable for integration in hydraulic systems requiring dependable operation and compliance with industrial standards.
