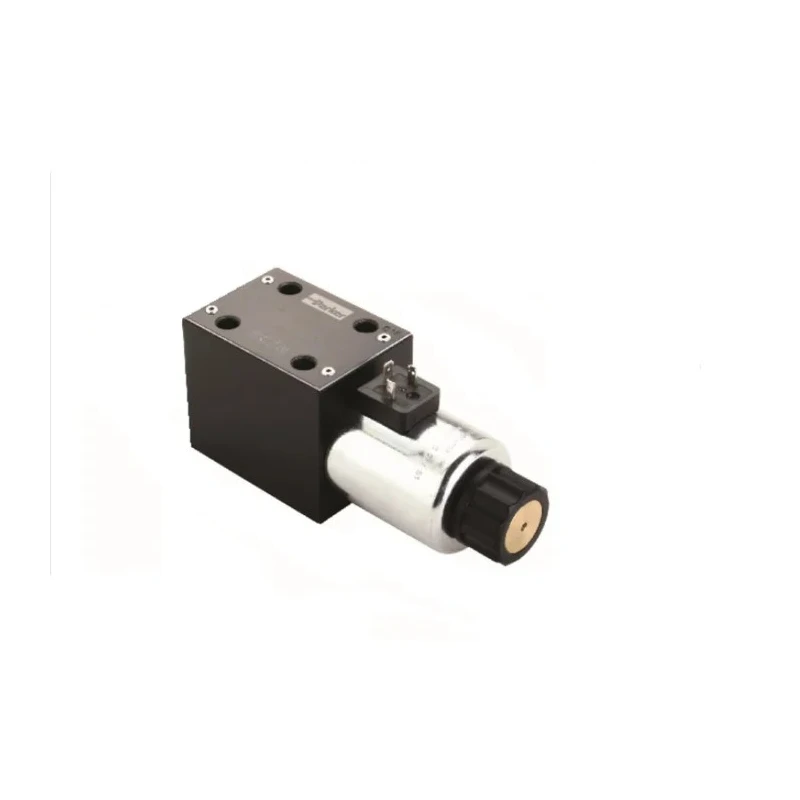

Parker Directional Control Valve Plate 2 Positions 4 Ports Single Solenoid Mount Plate Series D1VW Type H D1VW030HNYW

Parker D1VW030HNYW Directional Control Valve Plate is a high-quality hydraulic valve designed for efficient fluid power management in industrial environments. It belongs to the D1VW series and features a plate mount type with single solenoid actuation, supporting 2 positions and 4 ports for precise directional control.

The valve is constructed for robust operation across a temperature range of -25°C to 60°C, making it suitable for varied industrial conditions. It adheres to important standards including CE certification, EN 175301-803, and the Machinery Directive 2006/42/EC, ensuring reliability and compliance with safety regulations.

Engineered for excellent fluid flow, the valve maintains a low-pressure drop and energy-efficient operation. It supports a flow rate of up to 80 ml/min and is compatible with hydraulic oils meeting DIN 51524 standards. The spool type is Type H, optimized for directional control applications.

The solenoid features a wet pin armature design threaded in tube and allows manual override for flexibility during maintenance or emergency operations. The valve can be mounted in any position, though horizontal mounting is preferred to maximize performance. Wiring recommendations include 3 x 1.5 mm² cable for installation, and the maximum wire length is 50 meters.

This valve is suitable for general industrial hydraulic applications, including manufacturing, automation, and fluid power systems that demand reliable directional control with high switching frequency capabilities (up to 15,000 cycles per hour) and minimal leakage (max 10 ml/min at 50 bar).

Designed for directional control with Type H spool for precise fluid flow control. Operates in temperature range from -25°C to 60°C ensuring durability under varied conditions. Complies with CE, EN 175301-803 standards and Machinery Directive 2006/42/EC for safety and performance.

Suitable for use with hydraulic oils conforming to DIN 51524 standard. Features energy-efficient low pressure drop and supports a flow rate of up to 80 ml/min. Wet pin armature solenoid threaded in tube with manual solenoid override for flexible control.

Mounting is possible in any position, with horizontal preferred for optimal performance. Max switching frequency of 15,000 cycles per hour and max leakage at 50 bar is 10 ml/min depending on spool type. EN 175301-803 solenoid connection provided, plug not included for custom installation.

This Parker directional control valve plate is ideal for industrial sectors requiring efficient fluid power control, such as manufacturing, hydraulics, and automation. Explore more hydraulic valves and manifolds on EnvMart for various industrial applications.
