Bosch Rexroth Hydraulic Directional Spool Valve Type J 230V, 2 Positions, 4 Ports, 60L/min Flow R900551703

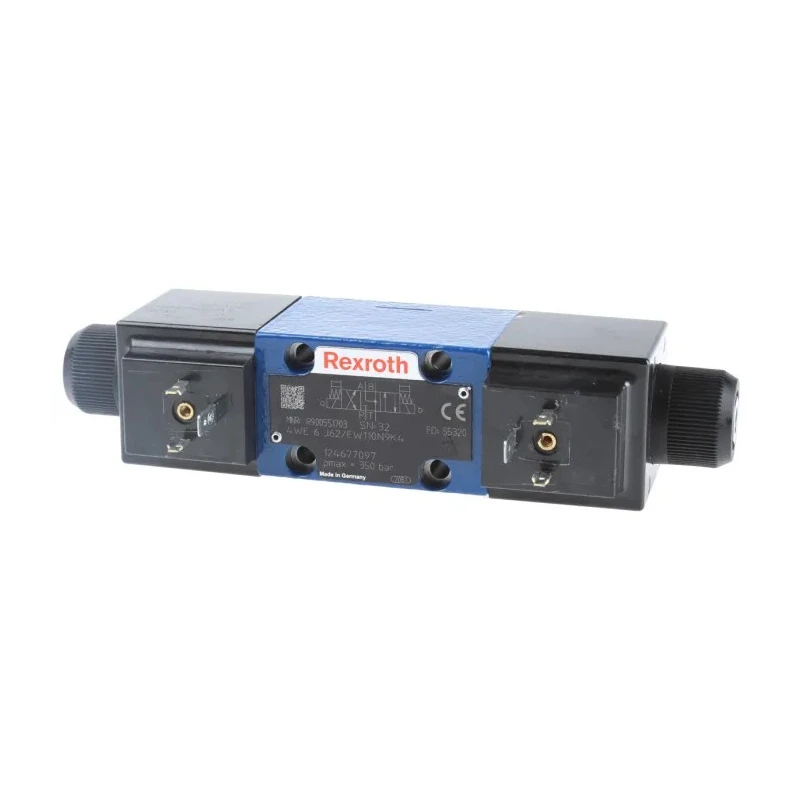

Bosch Rexroth R900551703 directional spool valve Type J is a solenoid operated hydraulic valve designed for precise control of fluid flow in industrial hydraulic systems. This valve features two positions and four ports, with a maximum flow rate capacity of 60 L/min and maximum operating pressure of 350 bar, suitable for demanding hydraulic power transmissions and controls.

The valve supports a 230V supply voltage and uses double solenoid actuation for efficient switching. Seal materials include robust nitrile rubber and fluoroelastomer, providing excellent sealing performance and chemical resistance across a wide operating temperature range of -20°C to 50°C.

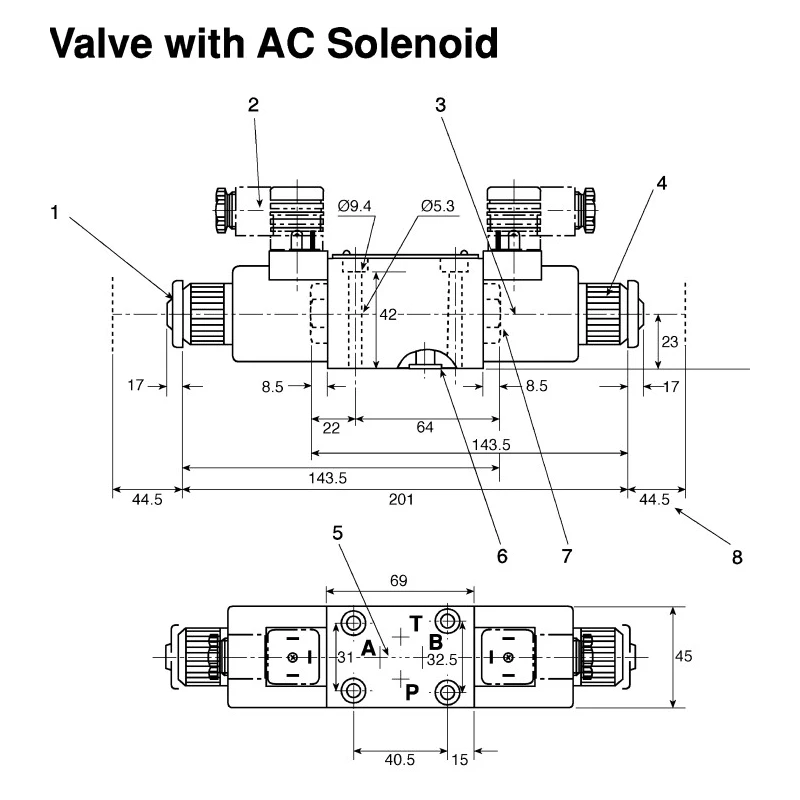

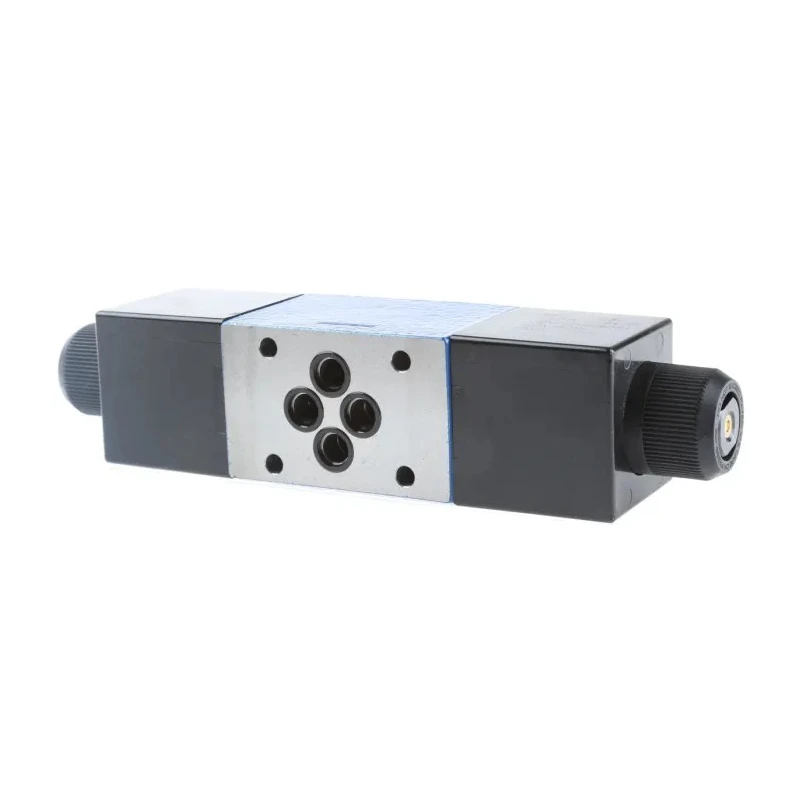

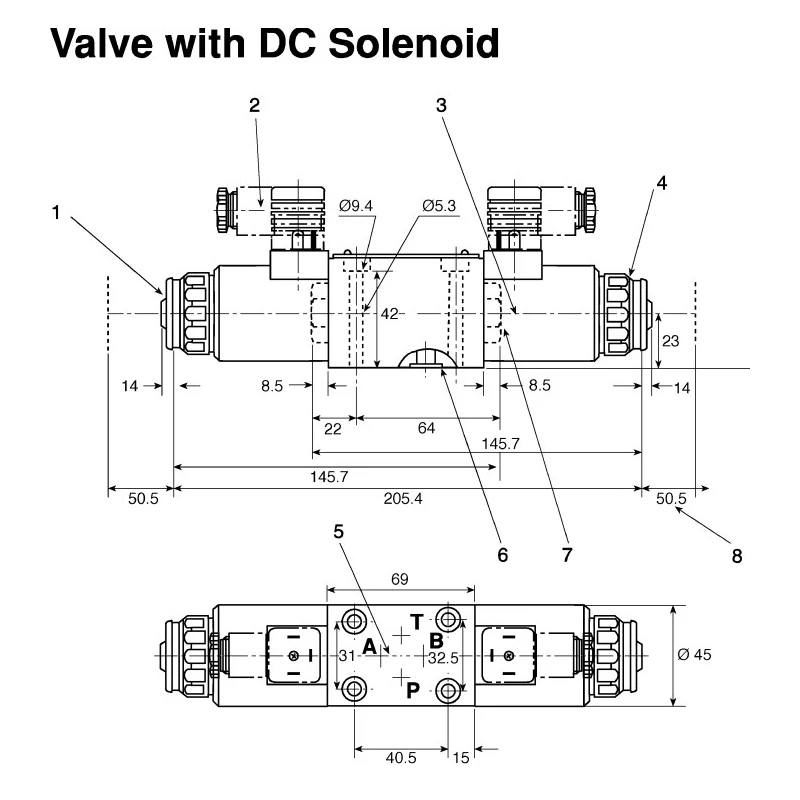

Manufactured to meet CETOP 3 standards with size 6 (D03) porting pattern, it is compatible with standard subplate mountings, allowing straightforward installation and integration. The product complies with multiple international standards such as NFPA T3.5.1 R2-2002 D03, EN ISO 13849, DIN EN 60529, IEC 60947-5-2, and ISO 4401-03-02-0-05 ensuring high reliability and safety in industrial settings.

Additional functional features include emergency hand operation for manual override and removable wet pin DC or AC solenoids that can be rotated by 90 degrees to facilitate installation flexibility. Solenoid coils for various voltages (24Vdc and 110Vac) are replaceable without fluid release, enabling easy servicing and minimizing downtime.

This valve is typically used in industrial machinery, manufacturing automation, mobile hydraulics, and fluid power systems where precise directional control of hydraulic fluid is essential for operational efficiency and system safety.

This valve type J is solenoid operated with double solenoid coils for reliable actuation. Maximum operating pressure is rated at 350 bar, suitable for heavy-duty hydraulic applications. The seal materials include durable Nitrile Rubber (NBR) and Fluorelastomer ensuring chemical and temperature resistance.

Operating temperature range is from -20°C to 50°C, making it fit for varied industrial climates. Constructed for CETOP 3 size 6 porting pattern, compatible with standard subplate mounting requirements. Emergency hand operation is available allowing manual override in critical situations.

Replacement coils for 24Vdc and 110Vac power supplies can be separately procured, supporting maintenance efficiency. Explore Bosch Rexroth hydraulic directional control valves to find precision components for industrial fluid power and control applications.
