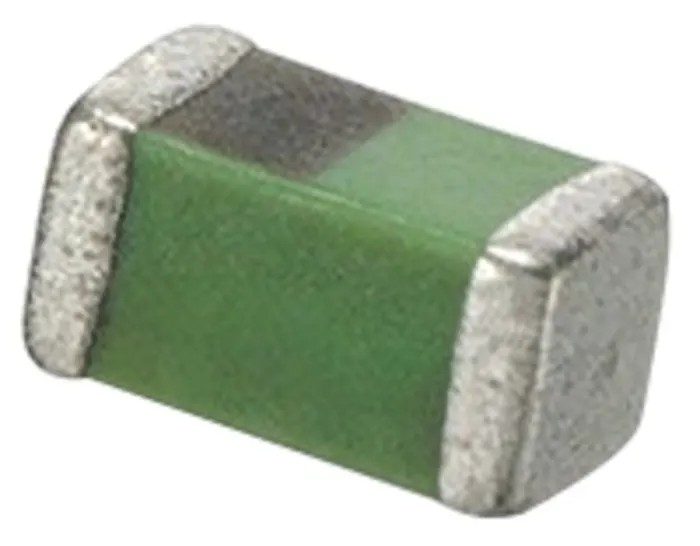

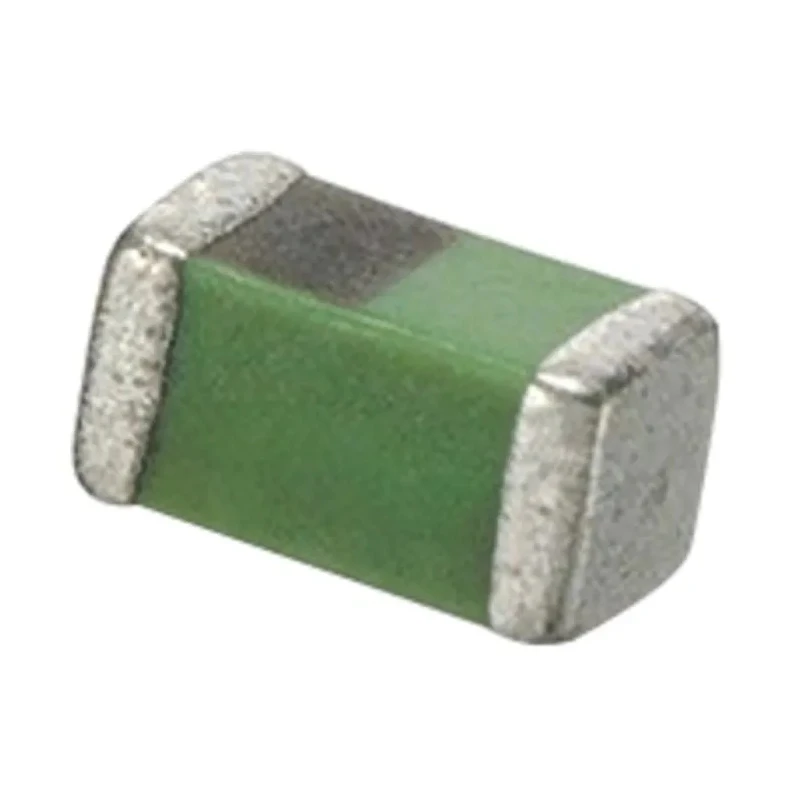

Murata Wirewound Surface Mount Inductor 39 nH ±5 % 200 mA Idc Q:8 1005 LQG15HS39NJ02D

Murata LQG15HS39NJ02D wirewound surface mount inductor is designed for high frequency applications requiring reliable, compact inductors. This 39 nH inductor features a ±5 % tolerance ensuring precise performance in demanding circuits.

The inductor is housed in the small 1005 package with a 1 mm length, 0.5 mm height, and depth, suitable for dense PCB layouts. Its maximum DC current rating is 200 mA, with a low maximum DC resistance of 650 mΩ, balancing power consumption and efficiency.

It exhibits a minimum quality factor of 8 and a maximum self-resonant frequency of 1.2 GHz, making it ideal for RF circuit matching, WLAN networks, and mobile communication equipment resonance.

The product supports a wide operating temperature range from −55°C to 125°C, enhancing reliability in industrial and commercial environments. The package comes on paper tape to assist with automated surface mount technology (SMT) assembly.

This unshielded inductor is molded to provide mechanical stability and solder termination ensures secure board mounting. The Murata LQG series is well-regarded for balancing rated current, size, and inductance tolerance, meeting diverse industrial and electronics manufacturing requirements.

General use multilayer surface mount inductor suitable for high frequency applications. Provides stable inductance with low DC resistance for reduced power consumption. Compact 1005 package with dimensions 1 mm length, 0.5 mm height, and 0.5 mm depth.

Maximum operating temperature of 125°C and minimum −55°C operating temperature. Package supplied on paper tape to facilitate automated assembly. Non-shielded wirewound construction enhances performance in RF circuits. Rated maximum DC resistance of 650 mΩ supports efficient current flow.

Maximum self-resonant frequency of 1.2 GHz for RF and wireless communication uses. This advanced inductor is suited for industrial, telecommunications, and consumer electronics applications including choke circuits, RF networks, and high-frequency filters.
