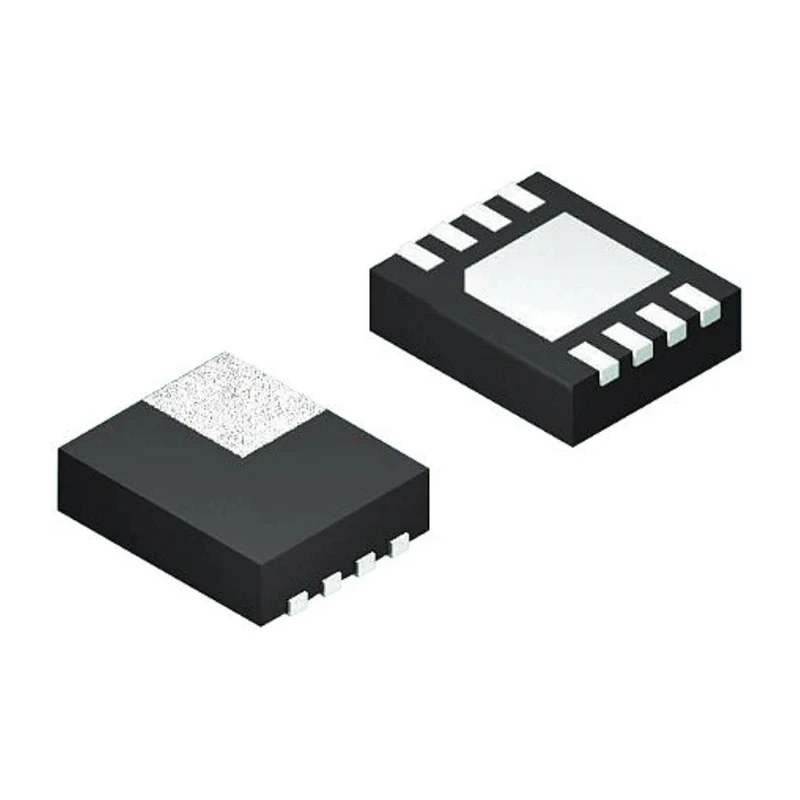

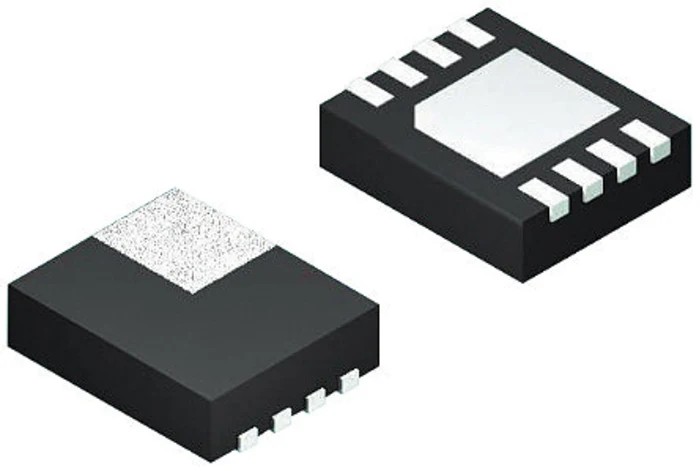

Texas Instruments Operational Amplifier, 1 GHz Gain Bandwidth, Surface Mount, 8-Pin 5.5V WSON LMH6629SDE/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 0.8mm |
| Length | 3mm |
| Model | LMH6629SDE/NOPB |
| Width | 3mm |
| Mount Type | Surface |
| Series | LMH6629 |
| Output Current | 250mA |
| Maximum Operating Temperature | 125°C |
| Package Type | WSON |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 1GHz |
| Input Bias Current | 35 μA |
| Slew Rate | 1600V/μs |
| Input Offset Current | 3 μA |
Key Features
- Single-channel operational amplifier optimized for low noise and high frequency applications.
- Gain bandwidth product of 1 GHz suitable for high-speed signal processing.
- Surface mount package type WSON with 8 pins enables compact PCB design.
- Operates within a supply voltage range of 2.7V to 5.5V.
- Input bias current is 35 microamps, ensuring minimal signal interference.
- Input offset voltage up to 800 microvolts for precise amplification.
- High slew rate of 1600 V/μs for fast signal response.
- Operating temperature range from -40°C to 125°C for industrial reliability.
Product Description
Texas Instruments LMH6629SDE/NOPB is a high-performance operational amplifier designed for applications requiring low noise and high-speed operation. It features a gain bandwidth product of 1 GHz, making it suitable for demanding industrial, electronic, and instrumentation applications. The device is housed in a compact 8-pin WSON surface mount package, facilitating efficient board layout and integration.
This operational amplifier operates on a supply voltage ranging from 2.7V to 5.5V, delivering an output current of up to 250mA. Its low input bias current of 35 μA and input offset voltage of 800 μV enhance signal accuracy and integrity. The high slew rate of 1600 V/μs ensures rapid response to input changes, ideal for high-frequency signal amplification.
Designed to function reliably across a wide temperature range of -40°C to 125°C, the LMH6629SDE/NOPB meets industrial standards including RoHS compliance, making it a robust choice for manufacturing, automation, measurement, and audio electronics applications.
The device's parameters such as pin count, package type, and electrical specifications support its versatility in semiconductor and electronics component portfolios. Its surface mount configuration supports modern compact electronics design, including embedded systems and communication equipment.
Single-channel operational amplifier optimized for low noise and high frequency applications. Gain bandwidth product of 1 GHz suitable for high-speed signal processing. Surface mount package type WSON with 8 pins enables compact PCB design.
Operates within a supply voltage range of 2.7V to 5.5V. Input bias current is 35 microamps, ensuring minimal signal interference. Input offset voltage up to 800 microvolts for precise amplification. High slew rate of 1600 V/μs for fast signal response.
Operating temperature range from -40°C to 125°C for industrial reliability. Output current capability up to 250 mA for driving varied loads. Complies with RoHS standards ensuring environmental safety.
Discover a wide range of Operational Amplifiers and semiconductor products in the Electronics & Electricals category at EnvMart designed for professional use in industrial machines, laboratory instruments, and electronic manufacturing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1 GHz, making it suitable for high-speed signal processing applications.
It operates within a supply voltage range of 2.7V to 5.5V.
This operational amplifier can deliver an output current of up to 250 mA.
The input bias current is 35 microamps, which helps ensure minimal signal interference.
It operates reliably across a temperature range from -40°C to 125°C.
This model is housed in a compact WSON surface mount package with 8 pins.
The high slew rate of this model is 1600 V/μs, allowing for rapid response to input changes.
The input offset voltage is up to 800 microvolts, which contributes to precise amplification.
Yes, it complies with RoHS standards, ensuring environmental safety.
The height is 0.8 mm, and the width is 3 mm.
It is optimized for low noise and high frequency applications, making it suitable for industrial, electronic, and instrumentation uses.
This model is a single-channel operational amplifier.
