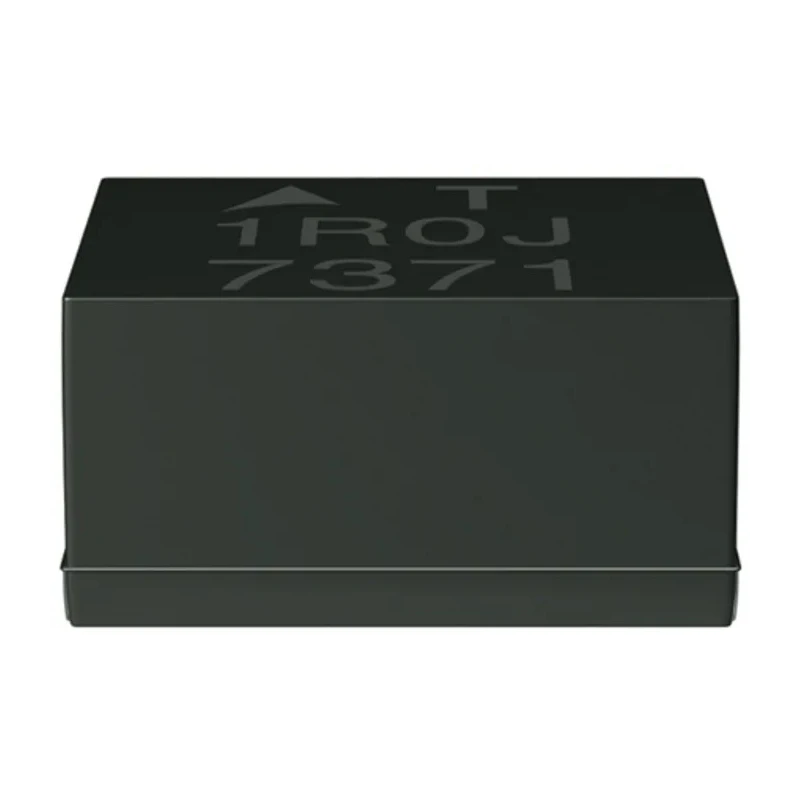

TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 4.7μH ±10% 220mA Idc Q30 B82422T1472K000
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TDK |
| Height | 2mm |
| Length | 3.2mm |
| Model | B82422T1472K000 |
| Depth | 2.5mm |
| Packaging | Tape & Reel |
| Series | B82422T |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 220mA |
| Maximum DC Resistance | 1.5Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 50MHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- High quality wirewound surface mount inductor with shielded ferrite core.
- Rated maximum DC current of 220mA for reliable performance.
- Package case size 1210 with compact dimensions of 3.2mm length, 2mm height, and 2.5mm depth.
- High Q factor of 30 ensures efficient energy storage with minimal losses.
- Compliant with automotive standard AEC-Q200 and RoHS directives.
- Operates in a wide temperature range from -55°C to 125°C.
- Moulded construction providing durability and mechanical stability.
- Maximum DC resistance of 1.5Ω and maximum self resonant frequency of 50MHz.
Product Description
TDK B82422T1472K000 is a 1210 size shielded wirewound surface mount inductor featuring a ferrite core and 4.7μH inductance with ±10% tolerance. This high-quality inductor is designed to provide stable inductance under a maximum DC current rating of 220mA. Its compact dimensions of 3.2mm in length, 2mm height, and 2.5mm depth, combined with a moulded wirewound construction, ensure durability and suitability for compact electronic designs.
This inductor meets automotive standard AEC-Q200 and RoHS compliance, making it suitable for use in automotive electronics, telecommunications, consumer electronics, and industrial systems. It operates efficiently across a wide temperature range from -55°C to 125°C while maintaining a high Q factor of 30 and a maximum self-resonant frequency of 50MHz, supporting high-frequency applications.
Its surface mount termination style facilitates automated assembly processes, improving production efficiency. The shielded design minimizes electromagnetic interference, enhancing circuit reliability. Typical applications for the B82422T1472K000 include filtering of supply voltages, signal coupling and decoupling, antenna matching, and various circuit protection roles in complex electronic assemblies.
High-quality wirewound surface mount design with ferrite core. Rated for 220mA maximum DC current ensuring reliable performance. Small 1210 package size fits compact electronic devices. Wide operating temperature range from -55°C to 125°C.
Automotive grade compliance with AEC-Q200 standard. RoHS compliant for environmental safety. High Q factor and maximum self-resonant frequency support efficient high-frequency use. Durable moulded construction and surface mount termination style.
Shielded to reduce electromagnetic interference in circuits. Suitable for automotive, telecommunications, consumer, and industrial applications.
This TDK surface mount inductor series is ideal for engineers and designers looking for robust and reliable inductors to implement in demanding electronic circuits. Explore additional TDK electronic components and Surface Mount Inductors at EnvMart to support your industrial, automotive, and electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 4.7μH with a tolerance of ±10%.
It has a maximum DC current rating of 220mA, ensuring reliable performance in various applications.
The dimensions of this inductor are 3.2mm in length, 2mm in height, and 2.5mm in depth.
This unit can operate at a maximum temperature of 125°C.
It complies with the automotive standard AEC-Q200, making it suitable for automotive applications.
The minimum quality factor (Q) is 30, which supports efficient energy storage.
The maximum self-resonant frequency is 50MHz, suitable for high-frequency applications.
It features a ferrite core and is constructed using a wirewound design.
This model uses a surface mount termination style, facilitating automated assembly processes.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
The inductor is packaged in tape and reel format, which is common for surface mount components.
This inductor is suitable for automotive electronics, telecommunications, consumer electronics, and industrial systems.
