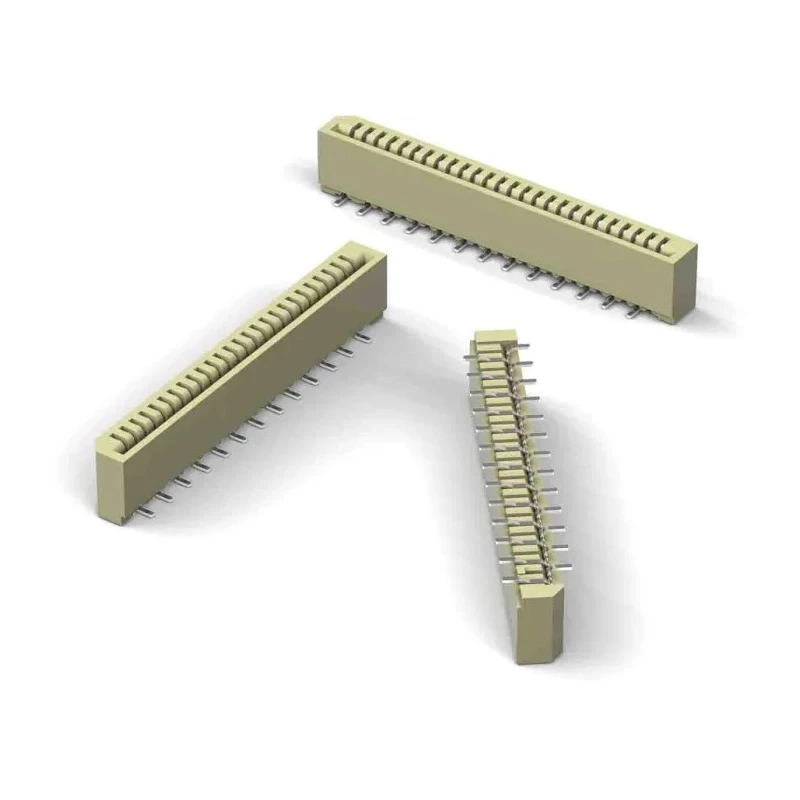

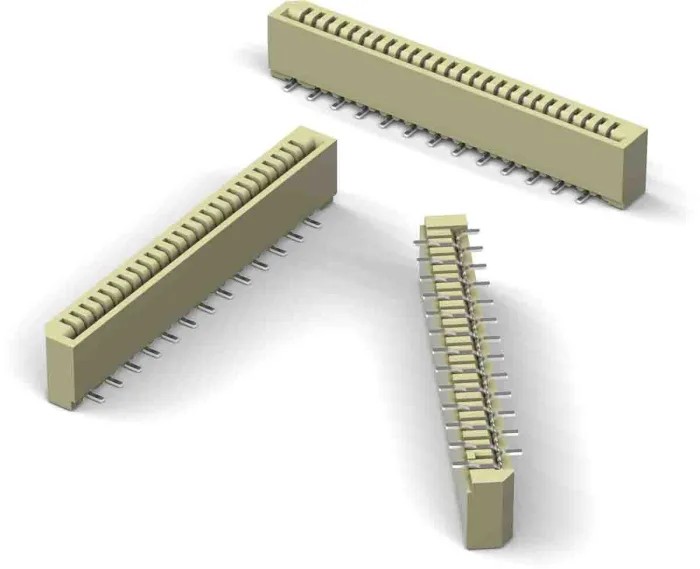

Wurth Elektronik WR-FPC Series Vertical Surface PCB Header, 8 Contacts, 1 mm Pitch, 1 Row, Shrouded 686108188822

Wurth Elektronik model 686108188822 is a high-quality PCB Header from the WR-FPC Series designed for vertical surface mounting applications. This component features 8 contact pins arranged in a single row with a compact 1 mm pitch, making it suitable for high-density PCB designs.

The housing is made from liquid crystal polymer, offering excellent mechanical strength and thermal stability. Its phosphor bronze contacts are coated with 2.032μm tin over 1.27μm nickel plating, providing excellent conductivity and corrosion resistance. The termination method is solder, ensuring robust and permanent attachment to the PCB.

With a voltage rating of 125 V and current capacity of 1 Ampere, this connector is ideal for low-voltage electronic circuits with moderate current demands. The operating temperature range from -25°C to 85°C enables reliable performance across various industrial and commercial environments.

The connector system is wire-to-board with a vertical orientation and shrouded design, which improves connection security and mechanical protection during mating. The stamped contact type enhances manufacturing repeatability and contact reliability.

This PCB Header is widely used in industrial electronics, communication devices, power supply equipment, and instrumentation where reliable PCB connections are critical. 8 contact pins with 1 mm pitch ensure precise signal transmission.

Durable liquid crystal polymer housing for thermal stability. Phosphor bronze contacts with tin/nickel plating resist corrosion and oxidation. Rated for 1A current and 125V voltage for low power applications. Vertical orientation and shrouded design for enhanced protection.

Solder termination provides solid mounting on PCB surfaces. Explore more high-quality PCB connectors and headers at EnvMart for all your electronic component needs.
