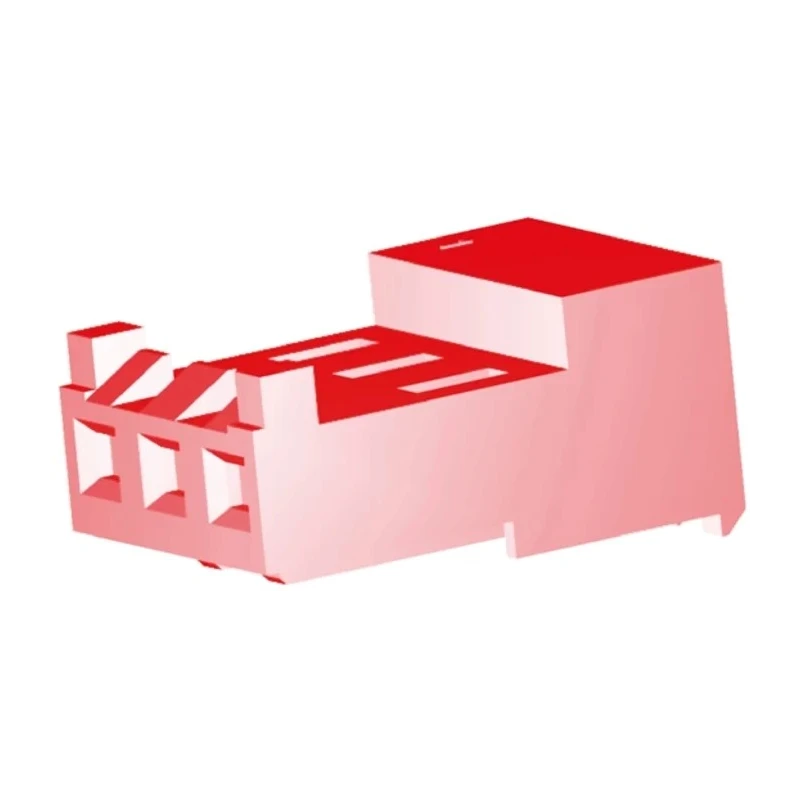

TE Connectivity 5-Way IDC Female Connector for Cable, 1 Row, 600V AC, 7A Current, 3.96mm Pitch 3-643819-5

TE Connectivity 3-643819-5 5-Way IDC Female Connector is engineered for electronic and electrical applications requiring reliable cable connections. It features a single row of 5 female contacts spaced on a 3.96mm pitch, suitable for mating with MTA-156 series connectors.

This IDC connector allows quick mass termination of stranded wires sized 18 to 26 AWG without the need for stripping insulation, thereby reducing assembly time and labor costs.

The housing is molded from white nylon 6/6, rated UL94V-2 for flammability resistance, and designed with molded ribs to prevent reverse mating. The connector's contacts are made of copper with a matte tin plating for optimal conductivity and protection.

Operating voltage rating is 600V AC and the current rating supports up to 7 amperes for general signal and power wiring applications. It performs reliably in temperature ranges from -55°C minimum to 105°C maximum, suitable for demanding industrial and commercial environments.

This straight orientation cable mount connector is equipped with locking ramps and polarization tabs to ensure secure and correct assembly. It is ideal for use in industrial automation, electrical appliances, telecommunications equipment, and other electronic devices.

The connector features 5 contacts arranged in a single row for wire termination. Constructed with shrouded nylon housing to prevent reverse mating and ensure secure connection. Contacts are matte tin plated copper for reliable conductivity and corrosion resistance.

Designed for IEC operating temperatures from -55°C to 105°C suitable for harsh environments. Uses IDC (Insulation Displacement Contact) technology allowing easy one-step assembly without wire stripping. Compatible with stranded wire sizes from 18 to 26 AWG for versatile application.

Connector orientation is straight and mounts directly to cable using locking ramps and polarization tabs. Part of the MTA-156 series known for cost-effective mass termination of discrete wires on electronic equipment. Manufactured in the United States under strict quality standards ensuring durability and performance.

This TE Connectivity IDC Connector is highly suited for industrial, laboratory, manufacturing, and commercial electronics applications requiring efficient wiring solutions with robust performance characteristics. For further exploration, browse our Electronics Components category or TE Connectivity products on EnvMart.
